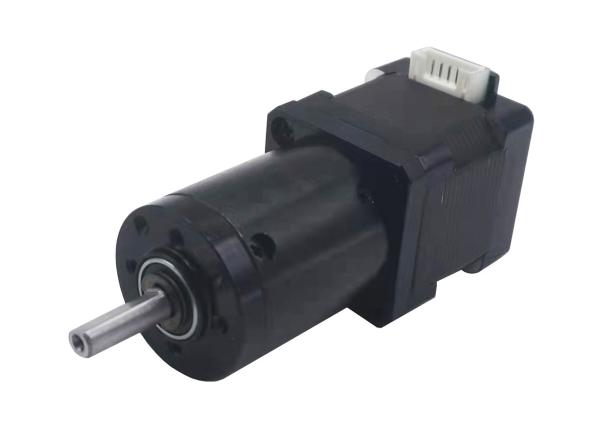

NEMA 17 High Torque 42mm Hybrid Stepper Motor W/ Planetary Gearbox
This is NEMA 17 hybrid stepper motor with a planetary gearbox.
There are different gear ratios available, from 3.71:1 to 719.98
Gearbox’s length 32.2mm~57mm, is related to gear levels.
Shaft type, and shaft length is customizable.
Motor’s torque= original torque*gear ratio* gearbox efficiency
Motor’s speed=original speed/gear ratio
Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | Geared stepper motor |
| Model | 42mm hybrid motor(NEMA 17) |
| Rated Voltage | 2.8V |
| NO.OF PHASES | 4 phase |
| STEP ANGLE | 1.8°/STEP |
| Rated voltage | 2.8V |
| COIL RESISTANCE | 2.1Ω±10%(20°) |
| PHASE INDUCTANCE | 2.5±20% mH(1kHz 1V RMS) |
| HOLDING TORQUE | 2.6 kg.cm |
| INSULATION CLASS | B(130°) |
Gearbox parameters:
| Levels | Efficiency | Gearbox length(mm) | Optional gear ratio |
| 1 | 90% | 32.2 | 3.71/5.18 |
| 2 | 80% | 40 | 13.76/19.22/26.83 |
| 3 | 72% | 50 | 51.06/71.30/99.55/138.99 |
| 4 | 57% | 57 | 189.45/264.52/ 369.32/516.66/719.98 |
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user
drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Product Detail Presentation
Packaging and Shipping information:
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
