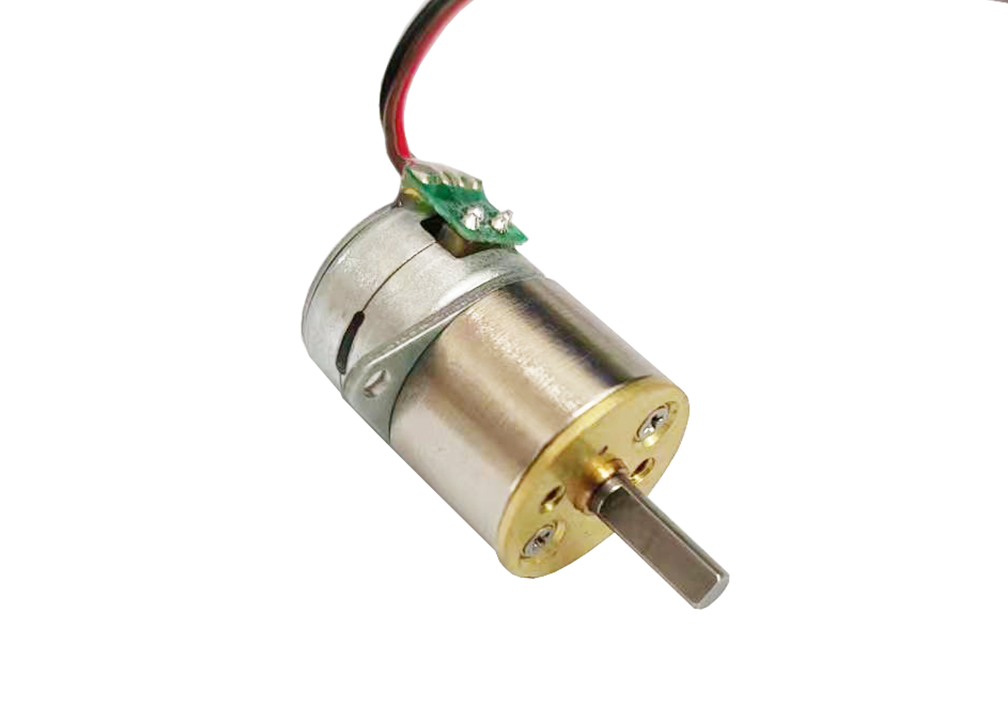

China 5V Bipolar Motor 15mm Small Stepper Motor With Metal Gearbox,
Gear Ratio 10:1~350:1
The product consists of a micro stepping motor with an outer
diameter of 15MM and a precision metal reducer, and the reduction
ratio can be customized according to customer needs. Now the
displayed product is the D-axis gearbox, and the shaft length can
be customized according to customer needs.
All parts of the product are processed on precision equipment, and
advanced and reliable assembly technology is adopted, so that the
product has the characteristics of high transmission efficiency,
low noise and high reliability.
Mechanical Dimension:MM
Technical Features
The product is made up of micro stepping motor with outer diameter
15MM and precision metal reducer, and the speed reduction ratio can
be customized according to the customer's needs.
All parts of the product are machined on the precision equipment,
and the advanced and reliable assembly process is adopted, so that
the product has the characteristics of high transmission
efficiency, low noise and high reliability.
Typical Applications
Medical instruments
Precision instrument
Robot
Factory automation
Game machine
ATM equipment
Security equipment
Specifications
| Product Name | 15mm permanent magnet stepper motor |
| Model | SM1516 |
| Rated Voltage | 5.0 V |
| Coil Resistance | 10 Ω ± 10% |
| No. Of phase | 2 Phases |
| Step Angle | 18 degree |
| Hold Torque | 300 gf.cm |
| Insulation Class | Class E for Coils |
| Insulation Strength | 600 V AC for One Second |
| Insulation Resistance | 500 MΩ (DC 100 V) |
| Operating Temperature Range | -20~+70 ℃ |
| Weight | 15 g (Ref.) |
| OEM & ODM SERVICE | AVAILABLE |
Competitive Advantage
Torque Curve For Reference
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Type of Wire Connect
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Product Detail Presentation
