    External Drive Lead Screw Hybrid Linear Stepper Motor NEMA17 42mm

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : NEMA17
    Certification : RoHS, ISO9001
    Price : $12~$33/Unit
    Payment Terms : Western Union, T/T, L/C, MoneyGram
    Supply Ability : 100000 Units/year
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    External Drive Lead Screw Hybrid Linear Stepper Motor NEMA17 42mm

    NEMA17 42mm External Drive Linear Lead Screw Hybrid Stepper Motor with POM Brass Nut

    This is 42mm hybrid linear stepper motor with lead screw.(NEMA 17)
    Output shaft is TR8 (8mm diameter trapezoidal screw) and it has different pitch and lead.

    Motor’s travel distance, and thrust is determined by motor’s lead.

    We have different options for you to choose.

    Lead screw length is customizable

    Also we provide nut to match with lead screw. POM and brass nut are both optional.


    Typical applications:

    * Medical Equipment

    * Linear Robotic Control

    * Precision Calibration

    * High Precision Valve

    * Other Precise Position Movement


    Plus tt has extra low noise and high stability.

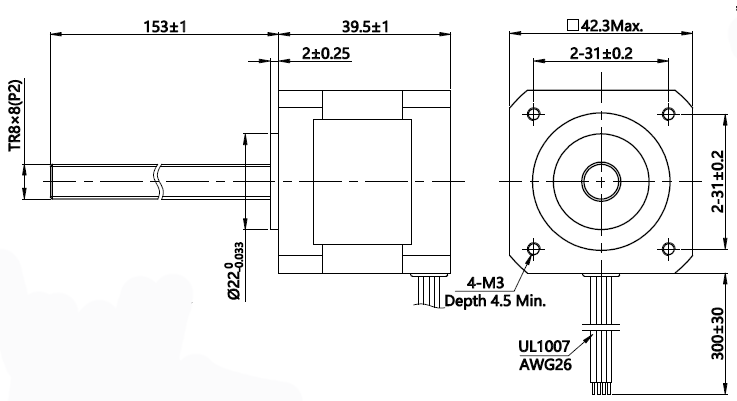

    Design Layout (Unit:mm)


    Nut design:

    Parameter sheet:

    Model No.VT32HS40-Linear
    Motor typeLinear hybrid stepper motor
    Motor size42mm * 40mm (Width*height)
    Lead screw typetrapezoidal screw
    Lead screw lengthAdjustable
    Nut materialPOM / brass

    Lead screw diameterScrew Lead (mm)Screw pitch(mm)Travel per step(mm)

    TR8

    (8mm)

    110.005
    220.1
    31.50.015
    420.02
    820.04
    1020.05
    1220.06
    1420.07

    Competitive Advantage

    • High quality and the best price.

    • Fast deliver,storage company and rich inventory

    • Near Shanghai port, the traffic is very convenient.

    Product Detail Presentation
