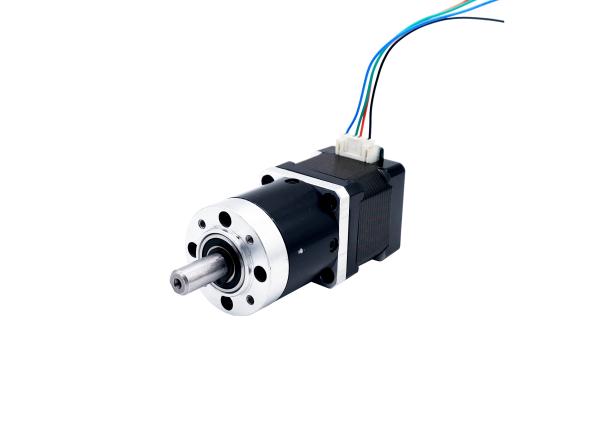

NEMA 14 35mm High Torque Hybrid Stepping Planetary Gearbox Motor 5V
12V China Stepper Motor
High torque geared motor gearbox DC 12V motor ,Voltage: DC12V; Feature:-The motor is Gear DC motor with
micro-turbine worm, you can change the wiring-connection to change
motor rotation. Worm geared motor with self-lock, that is, in the
case of motor without electric, the output axis is fixed,
self-lock.
No-load speed choice : 2rpm / 3rpm / 5rpm / 6rpm / 10rpm / 20 rpm /
30rpm / 40rpm / 62rpm / 100rpm(use M3 scews to mount)
Suitable for: Widely used in windows,remote control curtains,
miniature a door opener, barbecue grills, ovens, washers, waste
disposal machines, coffee machines, printing machines, household
appliances, miniature winch and other occasions.
The gearbox output shaft direction of the motor shaft is arranged
vertically. The entire body of the motor output shaft relative to
the general direction of gear motor short, Widely adapted to some
of the installation dimensions of this aspect is required.
WARRANTY: In there,you are backed by our Performance Assurance. If
you have any issues with your product,simply contact customer
service for troubleshooting help, parts, replacement, or refund.
Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | Geared stepper motor |
| Model | 35BYGH34-51PG |
| Motor Parameters | |
| Rated Voltage | 5V~12V |
| NO.OF PHASES | 2 PHASES |
| Gear Box Parameters | |
| Peduction Rated | 1:51 |
| STEP ANGLE | 18°/STEP |
| COIL RESISTANCE | 10Ω±10% |
| PHASE INDUCTANCE | 12±20% mH |
| HOLDING TORQUE | 1.2Kg.cm |
| INSULATION CLASS | B |
WEIGHE | 0.25kg |
| Other Ratio for Choice | 28 32 49 74 101 153 218 290 505 634 |
| OEM & ODM SERVICE | AVAILABLE |
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user
drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.

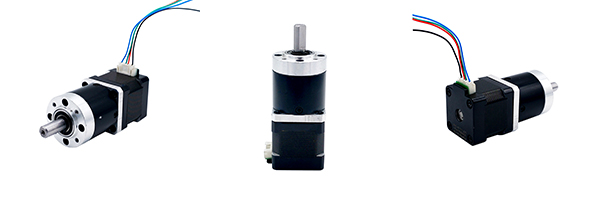

Product Detail Presentation
