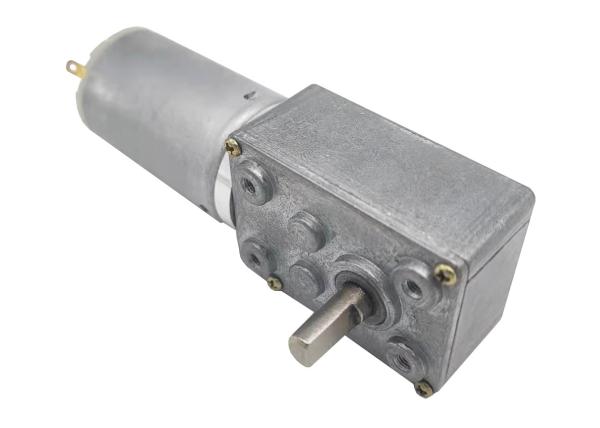

OEM ODM 32*88.5 Gearbox Torque Small 12V Micro DC Motor 90 Degree
Right Angle 1-100rpm 24V DC Worm Gear Motor
Introduction of DC Brushless/ BLDC planetary gear motor
BLDC Motor has advantages of small size, high power, high
efficiency, adjustable speed, long life, no sparkover,etc.
It can widely replace DC Brushed motor, inverter motor, AC
asynchronous motor. It's the best solution to match to planetary
gearbox and it can also match to normal gearbox. BLDC Motor is the
developing direction of transmission and it's the only choice for
green energy and driving industry.
It's widely used in car, medical equipments, electrical tools,
automatic instrument, home applicance, military industry,
environment protection and energy saving industry, aeronaustics
industry, office automation, intelligent home, financial machines,
game machines, hollow window-blinds, smart toilets, auto racks,
power tools, automatic windows, automatic curtains, glass walls,
bank ATM machines, automatic cash registers, vending machines and
other automated bill machines .
Please let us know the following Parameter if we are lucky to
attract your interests:
1. Voltage & Frequency
2. Number of revolutions and direction of rotation
3. Type of output shaft ( Our standard shaft our your customized
shaft)
4. Torque on output shaft
5. Length of lead wire if you have requirements
Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | Geared DC motor |
| Model | JSX5300-385 |
| Motor Parameters | |
| Rated Voltage | 6 V |
| No-load Speed | 1.6rpm |
| Gear Box Parameters | |
| Peduction Rated | 1:5300 |
| Rated Torque | 25Kg.cm |
| Stall Torque | 30 Kg.cm |
| Rated Current | 750 mA |
| Stall Current | 4000mA |
| No-load Current | 400 mA |
Rated Speed | 1.3 rpm |
| No-load Speed | 8000 rpm |
| Other Ratio for Choice | 40 69 100 180 255 330 600 950 1170 1650 5300 |
| OEM & ODM SERVICE | AVAILABLE |
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user
drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Product Detail Presentation
