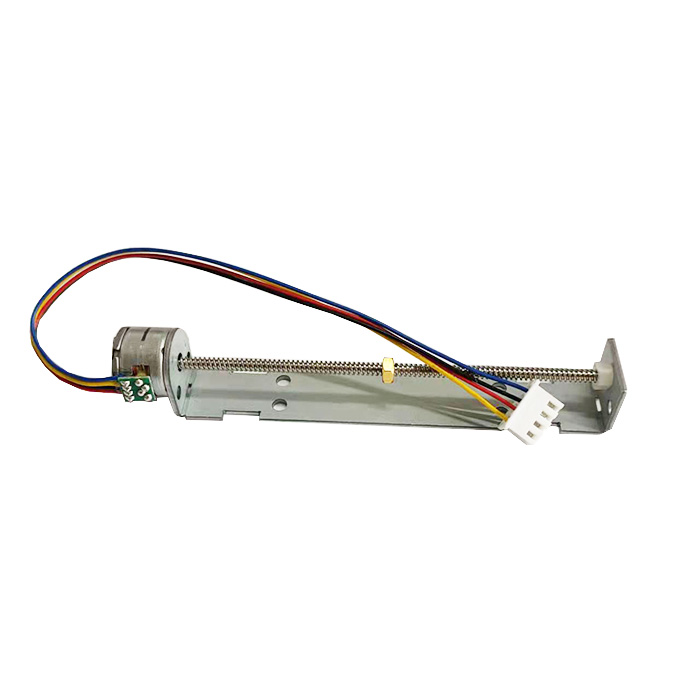

Chinese factory SM1567A 15mm diameter copper nut lead screw linear stepper motor with bracket

This 1567A motor is a 15mm diameter linear stepper motor. It’s attached with a 1mm pitch 2 starts 3mm diameter trapezoidal lead screw, and there is a copper nut.

The connector is JST XHP-4 connector (2.5mm pitch, 4 pin).

You can customize lead screw’s length and connector type.

Feel free to contact us if you are interested in this product.

Mechanical Dimension:MM

Typical Applications

• Intelligent Security Products

• Camera Lenses

• Door Locks

• Wearable device




Electrical Parameters:

Competitive Advantage

• High quality and the best price.
• Fast deliver,storage company and rich inventory
• Near Shanghai port, the traffic is very convenient.

Torque Curve For Reference

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

Product Detail Presentation

CHANGZHOU VIC-TECH MOTOR TECHOLOGY CO., LTD
Changzhou Vic-Tech Motor Techology Co., Ltd has been specializing in producing micro motors and accessories since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers.

We have a R & D team with 20 years of experience in motor development, providing customers with design and development custom services. By leveraging our honesty, dependability and quality, Vic-Tech Motor aims to continue as a pioneer in the sales overseas by seeking global partners.
