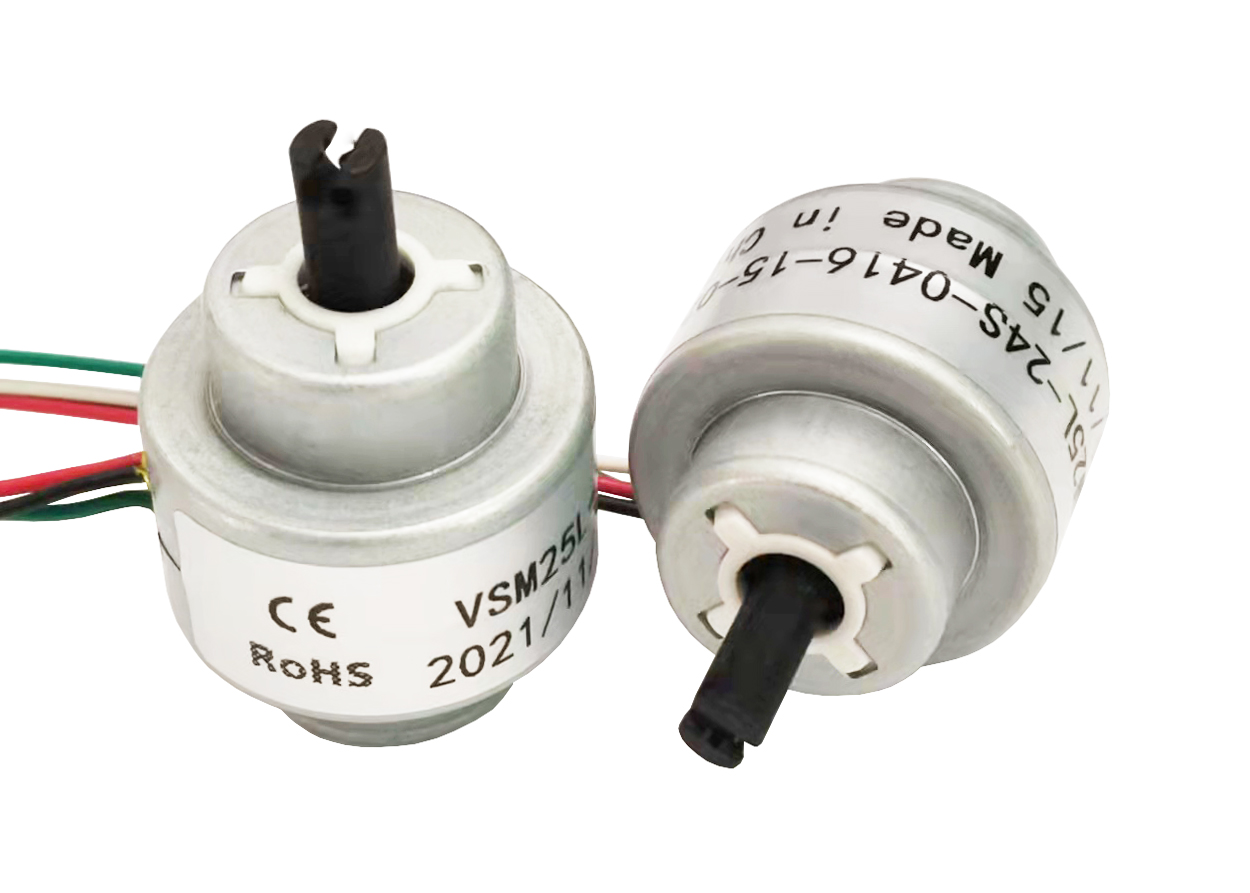

Custom Shaft Linear Stepping Motor 15 Degree Step Angle 12V 25mm
Diameter
VSM25L series permanent magnet linear stepping motors, when the
rotor runs continuously, the lead screw will move forward or
backward. This column can be divided into 3 types of motor
structures: fixed shaft type, through shaft type and external drive
type.
VSM25 series permanent magnet linear stepping motors have step
angles of 7.5 degrees and 15 degrees. When the step angle is 7.5
degrees, the step length can be 0.0127mm, 0.0254mm, and 0.0508mm.
When the step angle is 15 degrees, the step length can be 0.0254mm,
0.0508mm, 0.1016mm.
Parameters can be customized according to customer requirements.
This product is our company's product. It converts the rotation of
the motor into linear motion through the relative movement of the
internal rotor and screw. Mainly used in valve control, automatic
buttons, medical equipment, textile machinery, robots and other
related fields.
At the same time, the external wiring part can use the connection
line and other methods according to customer requirements.
Our team has more than 10 years of experience in stepper motor
design, development and production, so we can realize product
development and auxiliary design according to the special needs of
customers!
The needs of customers are our efforts, please feel free to contact
us!
Mechanical Dimension:MM
Technical Features
This product is a patented product of the company. It converts the
rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in
valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal
posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.
Typical Applications
Specifications
Motor diameter | 25mm |
Rated voltage | 12V |
No. of phases | 2 phases |
Phase Current | 0.21mA |
Phase Inductance | 55Ω |
Step angle | 15° |
| Ster Travel | 0.0416mm |
Competitive Advantage
High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.
Product Detail Presentation
