    permanent magnet stepping motor Geared Stepper Motor Low Noise 12V 7.5 Degree 5 Wires

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : 30BYJ46
    Certification : ROHS
    Price : $0.8~3/unit
    Payment Terms : MoneyGram, Western Union,Credit Card,T/T, L/C
    Supply Ability : 10000Units/month
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    permanent magnet stepping motor Geared Stepper Motor Low Noise 12V 7.5 Degree 5 Wires

    Permanent Magnet Geared Stepper Motor Low Noise 12V 7.5 Degree 5 Wires


    30BYJ46 stepping motor is mainly used for sanitary ware. Thermostatic valve, hot water faucet, automatic control and adjustment of water temperature and water flow such as rainwater.
    Other areas that require precise control can be realized. The external wiring part can adopt various types and lengths of connecting wires, or FPC FFC according to customer requirements.
    The output part can be used in a variety of ways, such as gears, pulleys, V-grooves, and turbo screws.

    We support the customization of various types of DC motors, as follows:
    1) Model model or size: main model model or size, shaft size, extension shaft size;
    2) Parameters: voltage, speed, current, torque...
    3) Purpose: Which product is the DC motor used for?
    4) Type of DC motor: ordinary micro motor, vibration motor, gear motor, pump motor?
    5) Other requirements: Does it need to be environmentally friendly? Or anti-interference? Life, noise amplitude, etc.
    Our team has more than 10 years of stepper motor design, development and production experience, and can realize product development and auxiliary design according to the special needs of customers!
    Customer needs are our efforts, please feel free to contact us!

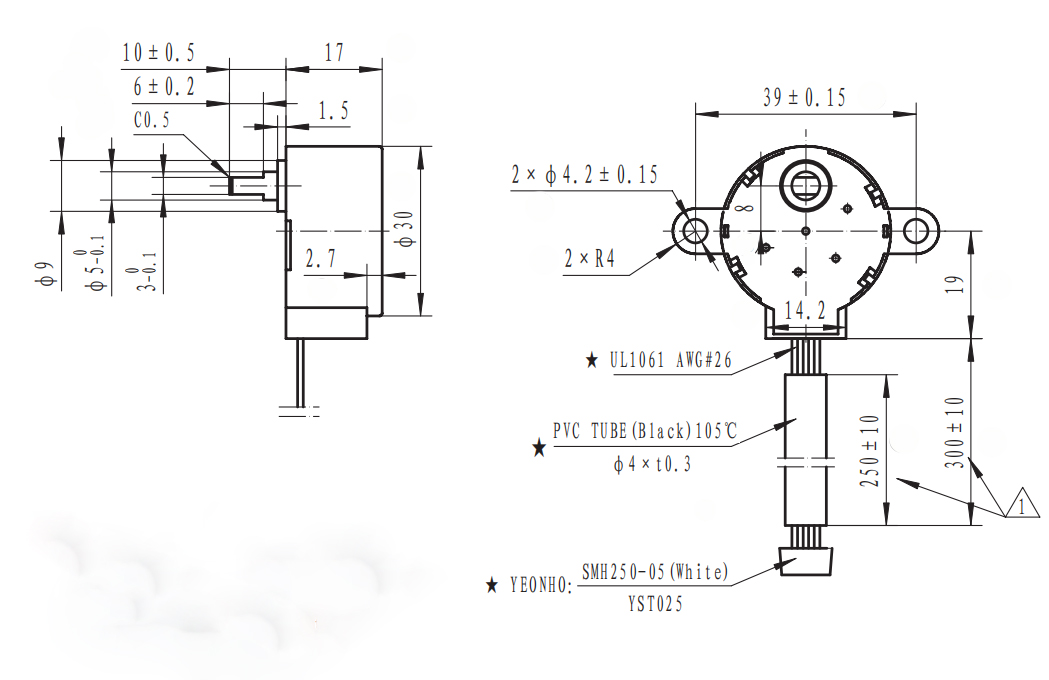

    Mechanical Dimension:MM



    Technical Features


    30BYJ46 12V Permagnent Magnet Stepper Motor with I Cut Shaft

    Application Highlights

    HVAC/R Valve Actuation Winding possibilities – Bipolar

    Office Automation Printers, Copiers, Data storage Maintenance free - motor is brushless

    Medical Applications Pill dispensing Analysers Cost effective - compact design, lower integration cost

    Other Industries & Applications Robotics Digitally controlled - Easy to use with a micro processor

    Telecommunication Antennae positioning Switching lines Open loop control - No encoders necessary


    Typical Applications


    • Saliva Analyzer
    • Blood Analyzer
    • Welding Machine
    • Intelligent Security Products
    • Fiber Fusion Splicer
    • Digital Electronics

    Specifications


    Product NameGeared stepper motor
    Model30BYJ46
    Resistance130 mΩ ± 10%/ phase

    Current Per Phase

    100 mA/phase
    Max Starting Frequency350 pps
    Max Response Frequency800 pps
    Pull in Torque78.4 gf.cm
    Detent Torque39.2 gf.cm
    Operating Temperature Range-0~+ 45 ℃
    OEM & ODM SERVICE

    AVAILABLE


    Type of Wire Connect


    Motor input method with Pin type,FPC, PCB, Lead wire etc.

    These can be customized according to customer needs.

    Shaft Type


    Out shaft standard as follows,also can customerized due to the user drawings

    welcome to contact customer service for more types

    • Round Type : DIA3mm. 4mm. 5mm

    • D-cut Type: DIA3-D2.5 DIA4-D3 etc

    • Screw Type: M3 M4 M5 Serial

    • Trape Type

    • I-cut Type: DIA3-I2 DIA4-I3

    • Other Type: Shaft with a hole etc


    Type of Fixture Cover


    The regular models are shown in the figure, and the special sizes can be customized.

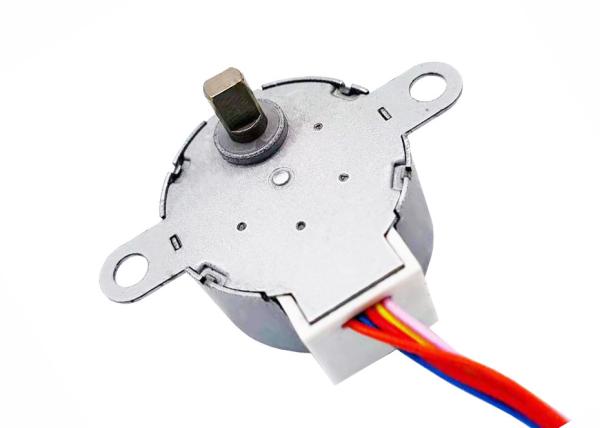

    Product Detail Presentation
