    0.9°/1.8 ° Step Angle 0.4~1.7A/phase High Efficiency Planetary Gearbox Hybrid Stepper Motor NEMA 17 42mm

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : 42BYG-42PLF
    Certification : RoHS
    Price : $20.2-$38/unit
    Payment Terms : MoneyGram, T/T, Western Union, T/T
    Supply Ability : 100000units/year
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    0.9°/1.8 ° Step Angle 0.4~1.7A/phase High Efficiency Planetary Gearbox Hybrid Stepper Motor NEMA 17 42mm

    NEMA 17 42mm high efficiency planetary gearbox hybrid stepper motor

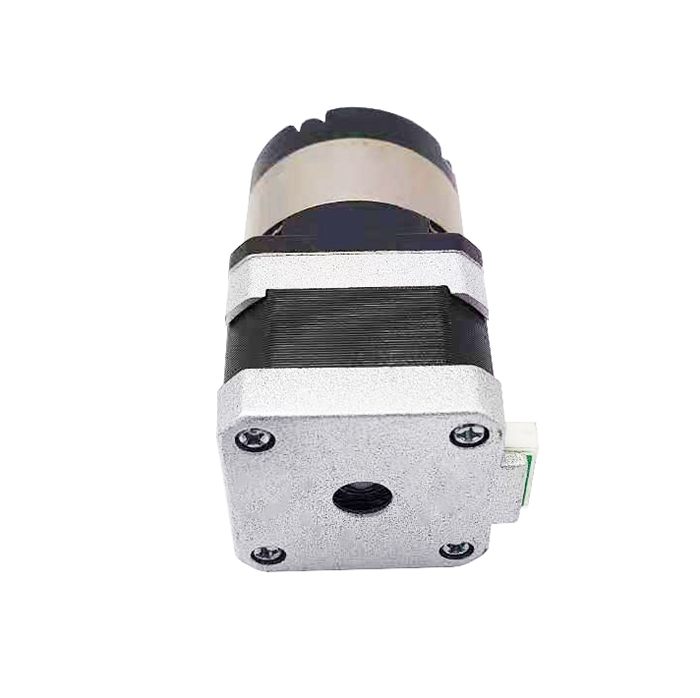

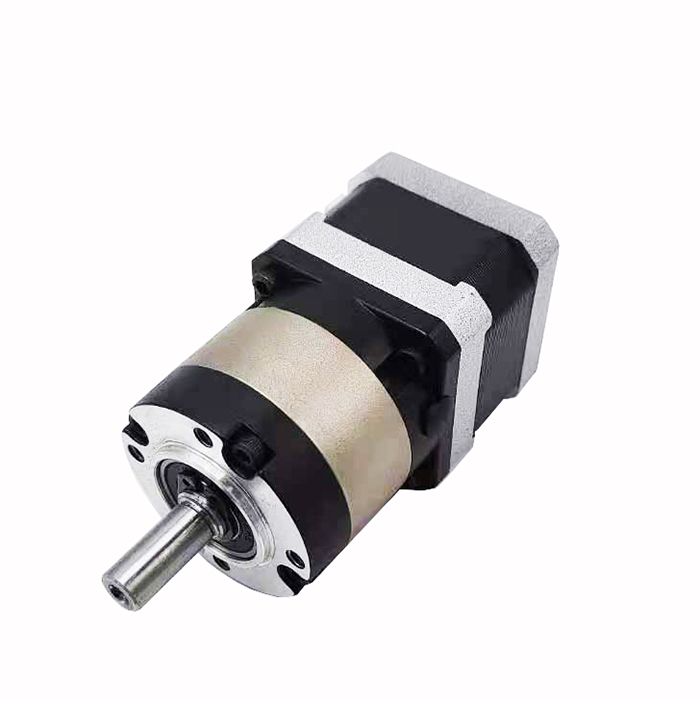

    This is a 42mm hybrid stepper motor (NEMA 17) attached with planetary gearbox.

    There are several gearbox ratio for you to choose, from 4:1 to 79:1.

    Base on different gear levels, gearbox will have different length and efficiency.

    1 level: 35mm length, 95% efficiency

    2 levels: 46mm length, 90% efficiency

    Mechanical Dimension:MM

    Typical Applications

    • Medical instruments

    • Precision instrument

    • Robot

    • Factory automation

    • Game machine

    • ATM equipment

    • Security equipment

    Specifications


    Motor typeHybrid stepper motor+planetary gearbox
    Model42BYG-42PLF
    Excitation mode2-2 bipolar
    Output shaftΦ10h7
    Gearbox typePlanetary gearbox
    0.4~1.7A/phase

    4:1; 5:1; 7:1; 10:1; (1 level)

    16:1; 20:1; 25:1; 28:1; (2 levels)

    35:1; 40:1; 50:1; 79:1;

    Output torqueMotor’s torque*gear ratio*gearbox efficiency
    Current range0.4~1.7A/phase
    Step angle0.9°/18°


    Competitive Advantage

    • High quality and the best price.
    • Fast deliver,storage company and rich inventory
    • Near Shanghai port, the traffic is very convenient.
