8mm micro stepper motor with planetary gearbox for electronic product

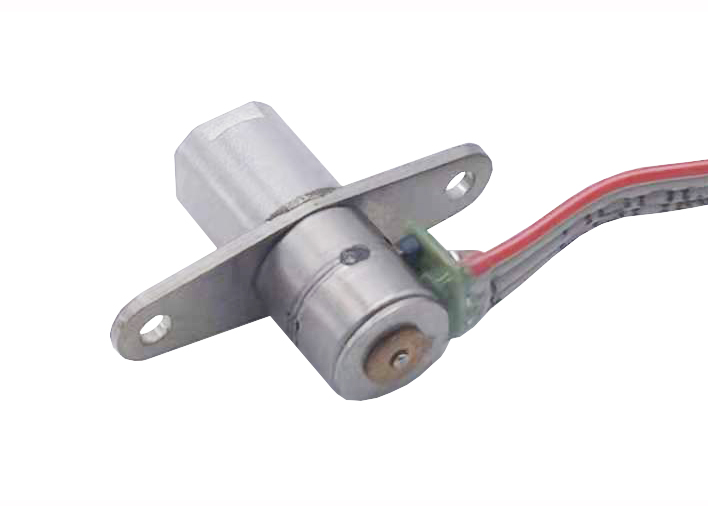

This is a 8mm stepper motor, with a 20:1 gear ratio gearbox.

This motor is design for precise control of electronic devices.

There is a race track shape hole on top of this motor, when motor spins, it will spin as well.

You just need to design a shaft with the exact same shape, and insert shaft inside the hole, and this motor will drive your device.

There are two 2.1mm diameter holes (21mm distance), and they are location holes, for you to find correct location during installation.

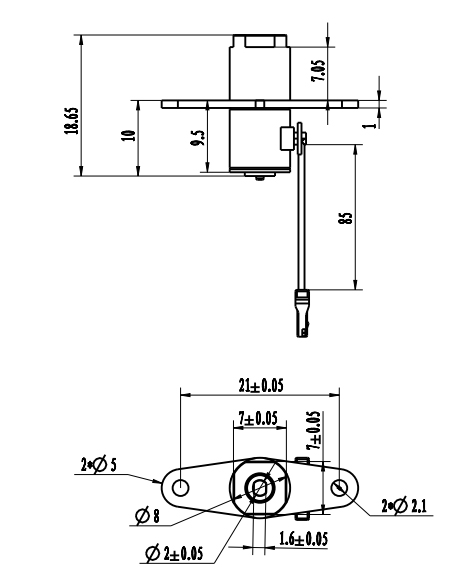

Mechanical Dimension:MM

Typical Applications

• Medical instruments

• Precision instrument

• Robot

• Factory automation

• Game machine

• ATM equipment

• Security equipment

Specifications

Competitive Advantage

• High quality and the best price.
• Fast deliver,storage company and rich inventory

• Near Shanghai port, the traffic is very convenient.

Type of Wire Connect

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Product Detail Presentation
