6mm precision micro stepping motor, occupying a small space,
stepping motor with screw slider
VSM0652 is a precision mini stepper motor fuselage diameter 6 mm, 7
mm fuselage length, 1 mm shaft diameter, the axial length can be
according to the demand change appropriately, can also be equipped
with gear, pulley, worm, screw, etc. The corresponding output
device.
Because of its small size, high precision, easy to control and
other excellent characteristics, so this micro stepper motor is
widely used in the camera, optical instruments, lenses, precision
medical devices, automatic door locks and other fields.
The motor input part of the FPC, but can according to the customer
demand can be changed to a connecting line needle, PCB and other
forms.
The mounting bracket can be changed according to the customer's
request.
Our team has more than 10 years of experience in stepper motor
design, development and production, and can realize product
development and auxiliary design according to the special needs of
customers!
Customer needs are our efforts, please feel free to contact us!
Mechanical Dimension:MM
Typical Applications
Specifications
| Product Name | 6mm micro stepper motor |
| Model | VSM0652 |
| Rated Voltage | 4.6V |
| Coil Resistance | 40Ω±10% |
| No. Of phase | 1-2 Phases |
| Step Angle | 9°/Step |
| Excitation Method | 1-2 Phase Excitation |
| Pull-Out Torque | 36g min,(5V 200mA,300-400pps) |
| Max. Response Frequency | 1100 pps,At 4.6VDC |
| Max. Starting Frequency | 2000 pps,At 4.6VDC |
| Insulation Strength | 300 V AC for One Second |
| Insulation Resistance | 1.0 MΩ (DC 100 V) |
| Operating Temperature Range | -10~+60℃ |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.

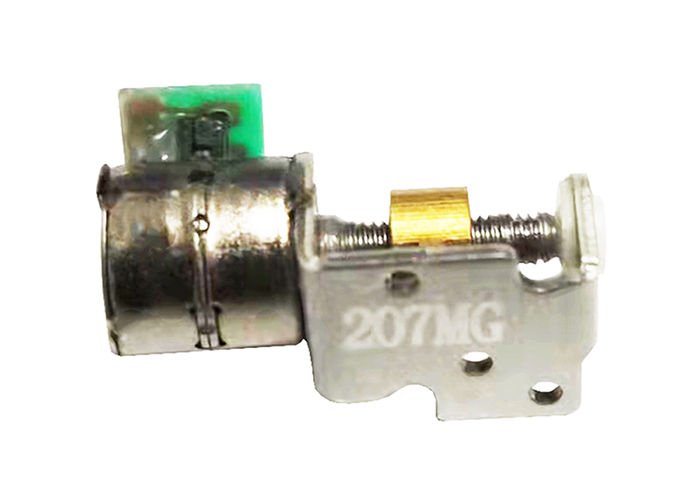

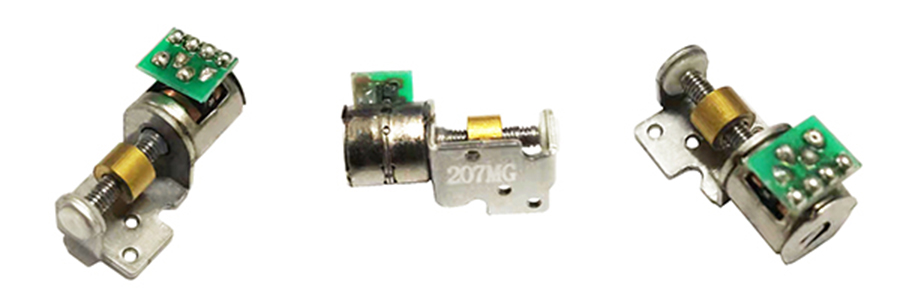

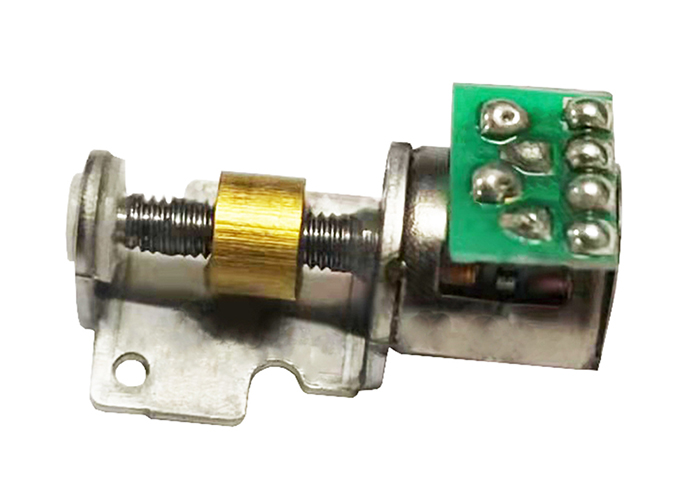

Product Detail Presentation
