    Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : VSM25L-048S-0254-97-001
    Certification : RoHS
    Price : $6.5~$30/Unit
    Payment Terms : Western Union, T/T, L/C, MoneyGram
    Supply Ability : 1000000 Units/year
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier

    Through shaft 7.5 degree step angle permanent magnet stepper motor 25mm pm linear stepper motor supplier


    VSM25L series permanent magnet linear stepping motor, when the rotor runs continuously, the lead screw will move forward or backward. This column can be divided into 3 types of motor structures: fixed shaft type, through shaft type and external drive type.

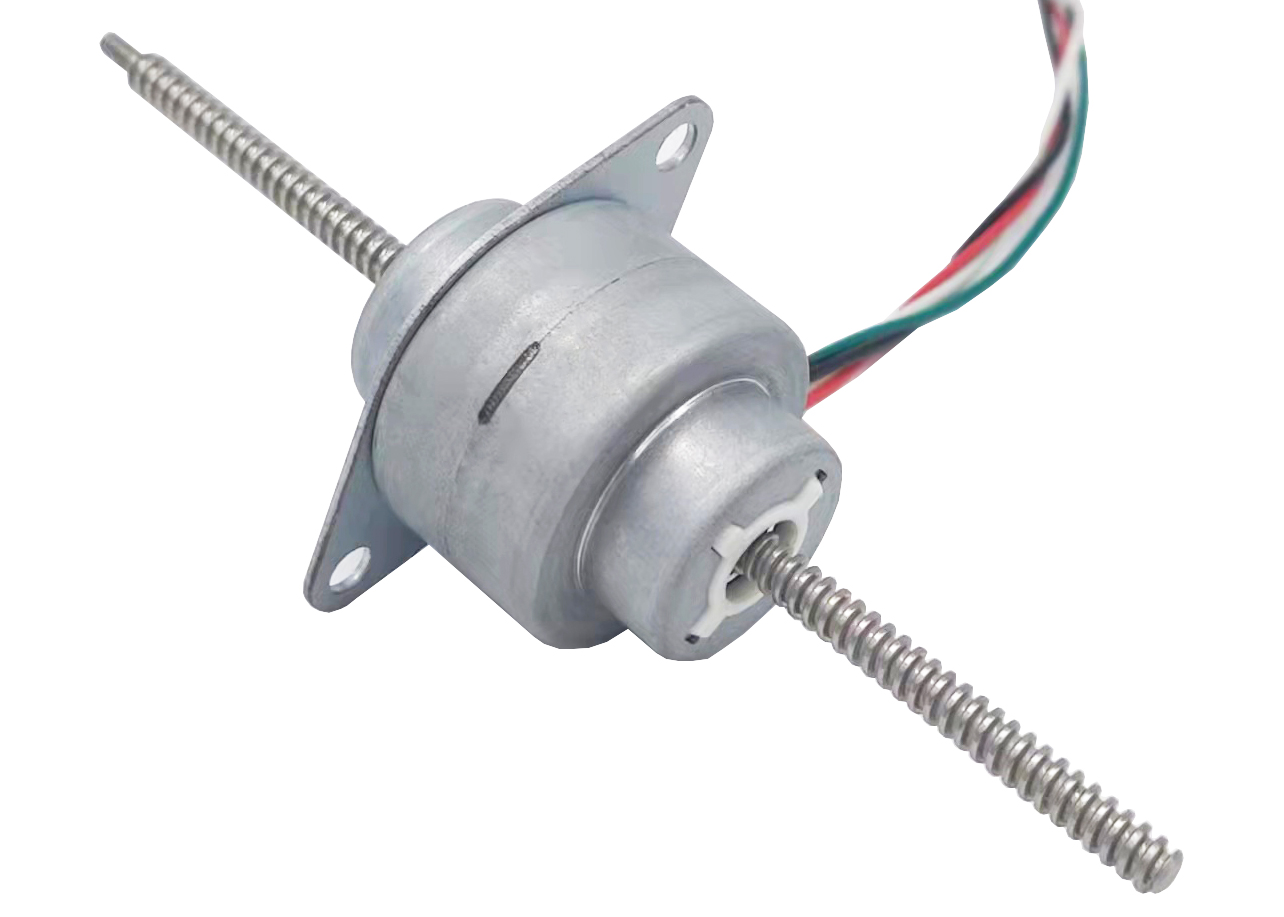

    This is a through shaft stepper motor.


    The step angle of VSM25 series permanent magnet linear stepper motor is 7.5 degrees and 15 degrees. When the step angle is 7.5 degrees, the step length can be 0.0127 mm, 0.0254 mm and 0.0508 mm.
    When the step angle is 15 degrees, the step length can be 0.0254mm, 0.0508mm, 0.1016mm.

    Parameters can be customized according to customer requirements.


    Main uses: automotive, medical, valve control stage lighting, etc.,
    At the same time, the external wiring part can be connected according to customer requirements.


    Our team has more than ten years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!



    Mechanical Dimension:MM



    Technical Features


    This product is a patented product of the company. It converts the rotation of the motor into a linear motion through the relative
    movement of the internal rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile
    machines, robots and other related fields.
    At the same time, the external wiring part can use four terminal posts (light pins) or connecting wires, or FPC FFC PCB, etc.

    according to customer requirements.
    The output part is linear.


    Application :


    HVAC/R Valve Actuation

    Office Automation Printers, Copiers, Data storage

    Medical Applications Pill dispensing Analysers

    Telecommunication Antennae positioning Switching lines

    Other Industries & Applications Robotics


    Typical Applications


    • Medical Equipment

    • Automatic Control

    • 3D Printer

    • Precision Calibration

    • Precision Fluid Measurement

    • Precise Position Movement

    Specifications

    Motor diameter

    25mm

    Rated voltage

    5V

    No. of phases

    2 phases

    Phase Current

    370mA

    Phase Inductance

    13.5Ω

    Step angle

    7.5°,15°

    Stear Travel0.0127mm,0.0254mm,0.0508mm,0.1016

    Competitive Advantage


    • High quality and the best price.

    • Fast deliver,storage company and rich inventory

    • Near Shanghai port, the traffic is very convenient.


    Product Detail Presentation
