    8mm Diameter 18 Degree Step Angle Linear Stepper Motor With M2 Lead Screw

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : SM0818
    Certification : RoHS
    Price : $1.5~$5/Unit
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000000 Units/year
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

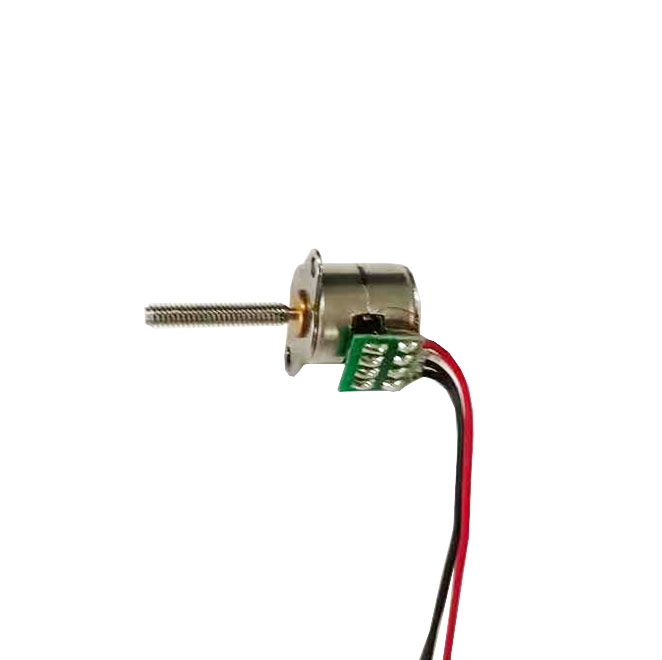

    8mm Diameter 18 Degree Step Angle Linear Stepper Motor With M2 Lead Screw

    SM0818 8mm diameter 18 degree step angle linear stepper motor with M2 lead screw

    SM0818 motor is a 8 mm diameter stepper motor with M2*0.4P lead screw on top.

    This is M2 standard lead screw, customers are free to customize lead screw’s type and length.

    For example, lead screw could be replaced with M3 lead screw.

    Other parameters such as cable length and resistance are all customizable.

    Mechanical Dimension:MM

    Typical Applications

    • Intelligent Security Products

    • Camera Lenses

    • Door Locks

    • Wearable device


    Specifications

    Model No.SM0818
    Motor type8mm linear stepper motor
    Rated voltage5V DC
    Coil resistance6Ω(customizable)
    Lead screw typeM2*0.4P
    Lead screw length12.5mm(customizable)
    Drive mode2-2 phase excitation
    Step angle18°
    Pull-out torque>3.5g*cm at 500 PPS
    Drive mode2-2 phase excitation

    Competitive Advantage

    • High quality and the best price.
    • Fast deliver,storage company and rich inventory
    • Near Shanghai port, the traffic is very convenient.

    Product Detail Presentation


    Type Of Wire Connect For Reference

    Motor input method with Pin type, FPC, PCB, Lead wire etc.

    These can be customized according to customer needs.


    Type of Fixture Cover

    The regular models are shown in the figure, and the special sizes can be customized.
