    1.8 degree step angle NEMA 8-axis hybrid stepper motor 20mm diameter 2-phase 5V stepper motor

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : 20C0101-1
    Certification : RoHS, ISO9001
    Price : $42.5~$70/Unit
    Payment Terms : Western Union, T/T, L/C, MoneyGram
    Supply Ability : 100000 Units/year
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    1.8 degree step angle NEMA 8-axis hybrid stepper motor 20mm diameter 2-phase 5V stepper motor

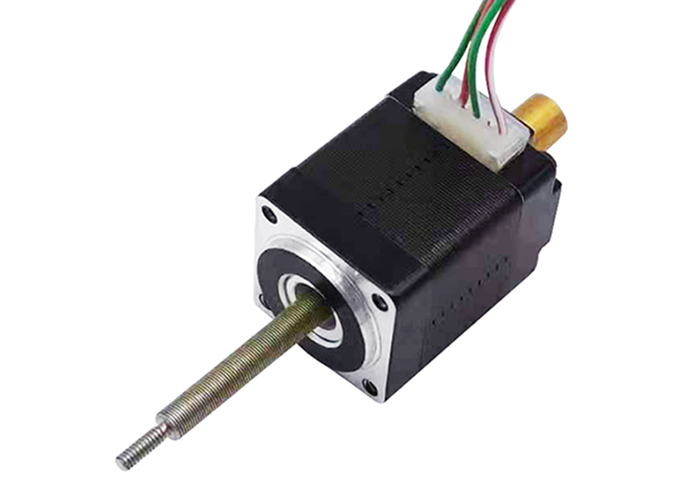

    20C0101 20mm 2 Phase 5V 1.8 Degree NEMA 8 Through Shaft Hybrid Stepping Motor


    Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
    Customer needs are our efforts, please feel free to contact us!



    Design Layout (Unit:mm):



    Parameter sheet:

    Model No.

    20C0101-1

    Lead screw diameter

    3.5mm

    Lead screw lead

    0.3mm

    Linear travel per step

    0.0015mm/step

    Motor’s phases

    2 phases

    Step Angle

    18°

    Rated voltage

    Rated voltage

    Rated current/phase

    0.24A

    Resistance/phase

    20.4Ω±10%

    Inductance/phase

    5.0mH±20%

    Insulation class

    B

    Insulation resistance

    100MΩ(500VDC)

    Heat rise

    80℃

    Minimal thrust/300pps

    2.4KG


    Competitive Advantage


    • High quality and the best price.

    • Fast deliver,storage company and rich inventory

    • Near Shanghai port, the traffic is very convenient.

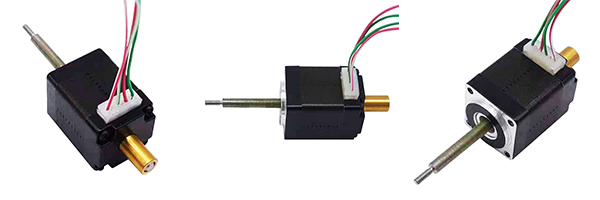

    Product Detail Presentation
