35BYGH34-51PG Nema14 high torque 35mm planetary gearbox 2 phase 5V gear stepper motor

35BYG product is a hybrid stepping motor with a square size of 35*34. The length may be adjusted according to the requirements of power, etc., and the range is generally between 20~51mm. The length of the planetary gear reducer is between 30.9~44.1mm. The gear reduction ratio of this motor is 1:51. The gear reduction ratio can be customized according to customer requirements.It can be re-evaluated after special request.
Hybrid stepping motor has the advantages of high control precision, high transmission resolution and large output torque. It is widely used in engraving machines, medical equipment, stage lighting, precision instruments and other fields.
The necessary driving device or control device for the customer can cooperate with the customer for development.
The basic step angle of the motor is 1.8 degrees.
At the same time, we can provide the same size products with a step angle of 0.9 degrees!

Mechanical Dimension:MM

parameter:

Typical Applications

• ​Textile Equipment
• Automatic Control
• Packing Machine
• Engineering Vehicle
• 3D Printer
• New Energy
• Gate Openers
• Vending Machine
• Conveyor System
• Medical Equipment
• Fluid Control
• OA Financial Equipment

Competitive Advantage

• High quality and the best price.

• Fast deliver,storage company and adequate inventory.

• Near Shanghai port, the traffice is very convenient.

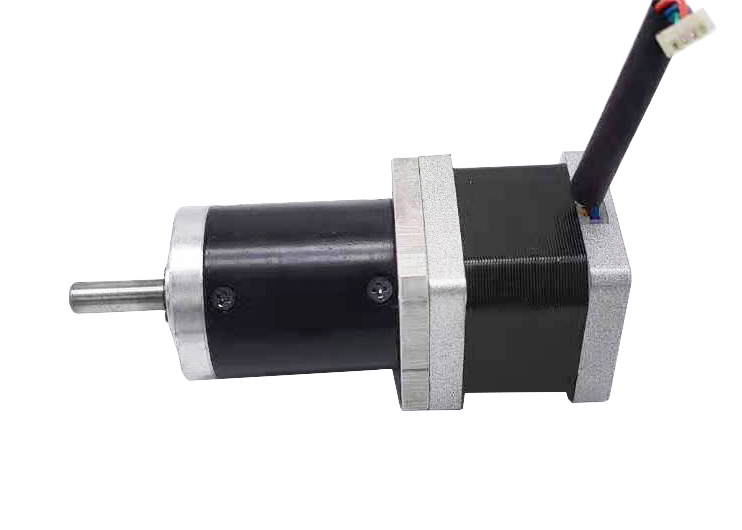

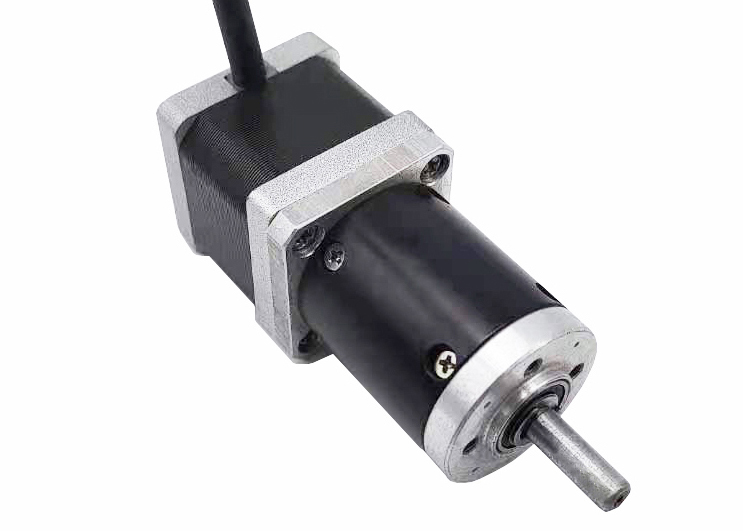

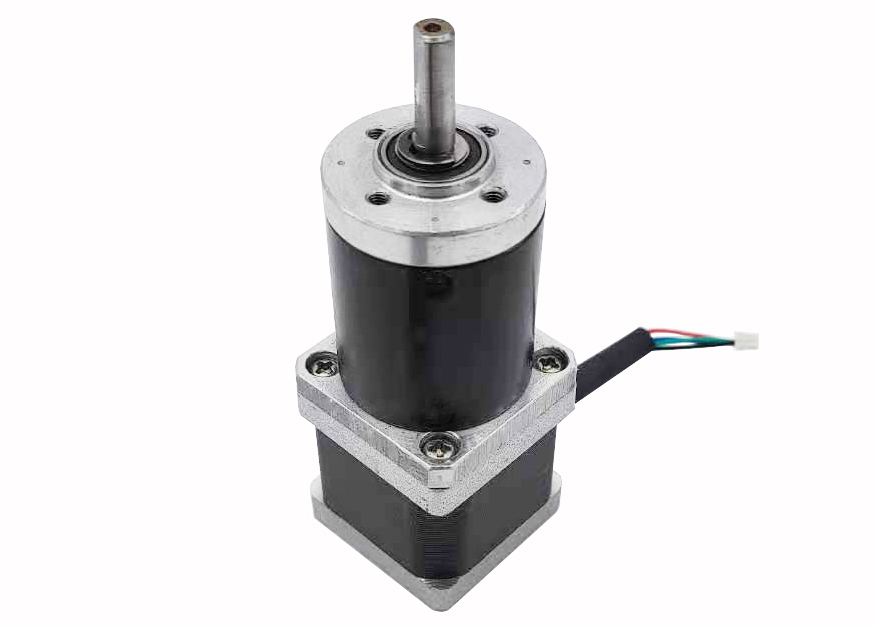

Product Detail Presentation
