    8mm Micro Stepper Motor 2 Phase 5V 18 Degree Step Angle Pm Stepper Motor

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : VSM08248
    Certification : RoHS
    Price : $3~$8/Unit
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000000 Units/year
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    8mm Micro Stepper Motor 2 Phase 5V 18 Degree Step Angle Pm Stepper Motor

    VSM08284 8mm micro stepper motor 2 phase 5V18 degree step angle pm stepper motor​


    VSM08248 is a precision lead screw motor ,the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
    Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
    Actuator aspects using subdivision drive way to meet.



    Mechanical Dimension:MM



    Technical Features

    8mm micro stepper motor is a small type motor for precision instrument.

    Typical Applications

    • Intelligent Security Products

    • Camera Lenses

    • Door Locks

    • Wearable device


    Specifications

    Product Name8mm micro stepper motor
    ModelVSM08284
    Rated Voltage5 V DC
    Coil Resistance16 Ω±10%
    No. Of phase2 Phases
    Step Angle

    18°/STEP

    Max Starting Frequency

    800 pps min.(AT 5.0 V DC)

    Max Slewing Frequency

    2000 pps min.(AT 5.0 V DC)

    Pull in Torque

    2.8 gf-cm min(AT 480 PPS,5.0 V DC)

    Pull out Torque

    3.8 gf-cm min(AT 480 PPS,5.0 V DC)

    Insulation Class

    CLASS E FOR COILS

    Insulation Strength

    100V AC/1s 3mA Max

    Insulation Resistance1 MΩ (DC 100 V)
    Operating Temperature Range-30~+70 ℃
    Weight4 g(Ref.)
    OEM & ODM SERVICEAVAILABLE

    Competitive Advantage

    • High quality and the best price.
    • Fast deliver,storage company and rich inventory
    • Near Shanghai port, the traffic is very convenient.

    Torque Curve For Reference


    Type Of Wire Connect For Reference


    Motor input method with Pin type, FPC, PCB, Lead wire etc.

    These can be customized according to customer needs.

    Type of Fixture Cover

    The regular models are shown in the figure, and the special sizes can be customized.

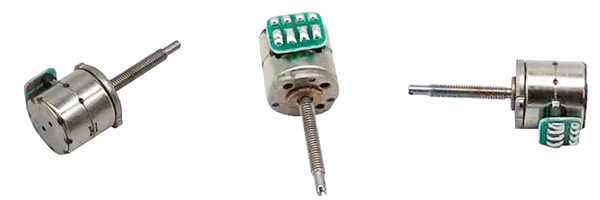

    Product Detail Presentation

    Quality 8mm Micro Stepper Motor 2 Phase 5V 18 Degree Step Angle Pm Stepper Motor for sale
