For Electronic Lock Dc Electric Brush Motor High Quality 12mm Metal
Gearbox With N20dc Gear Motor 3v 6v 12v With Encoder
N20 is a DC gear motor made of precious metal brushed DC motor with
precision metal reducer. The outer dimensions are oblate, outer
diameter 12, flat 10, motor length 15mm, the length of the gearbox
is
18MM, DC motor because of mature technology, low price, simple
drive control and widely used in cameras, copiers, door locks,
optical drives, precision instruments, cameras and other fields.
After supporting the gearbox, the torque is greatly increased, the
speed is reduced, and it is easy to control!
Our gearboxes are processed and assembled by imported machine tools
to ensure that the accuracy of each gear is higher than other
manufacturers in the same industry, so the gearbox is stable in
transmission, low in noise, high in efficiency, reliable in
structure, long in life and quality.
stability.
Our team has more than 10 years of experience in micro-motor
design, development and production, so we can achieve product
development and auxiliary design according to the special needs of
customers!
Customer needs are our efforts, please feel free to contact us!
N20 DC gear motor has beautiful appearance, small size, light
weight, easy to install, long life, low noise technology, high
energy saving rate, zero momentum, large torque and high precision.

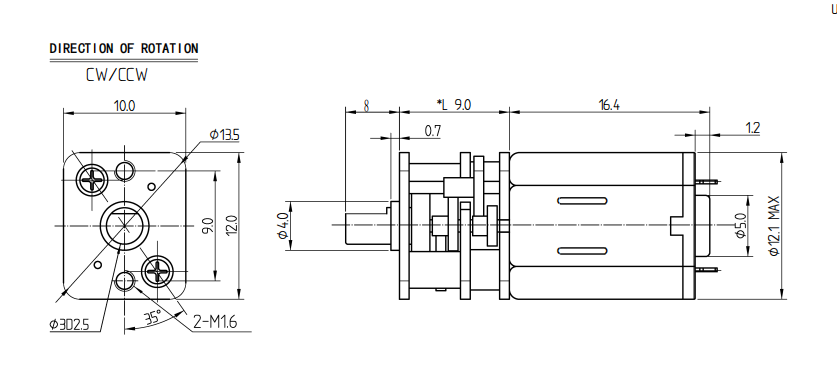

Mechanical Dimension:MM
Technical Features
N20 DC gear motor has beautiful appearance, small size, light
weight, easy to install, long life, low noise technology, high
energy saving rate, zero momentum, large torque and high precision.
1:12*10mm gearbox with N20 permanent magnet DC motor
2: Meets EU environmental standards. Low energy consumption, low
noise
3: Can be equipped with encoder. The number of pulses is 3ppr
4: Reduction ratio:
1:3.1:5.1:10.1:20.1:30.1:50.1:63.1:100.1:150.1:210.1:
250.1:298.1:380.1:500.1:1000
5: The product is suitable for: electronic door locks, intelligent
switches, steam hair straighteners (water spray straight hair),
label stripping agent, smart wear, smart machine 3D printing
equipment products, hair curlers, safes, electric screwdrivers,
display stands, etc.
Typical Applications
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
- Safe Box
- Ad Equipment
- Household Appliances
- Electtric Door Locks
Specifications
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | CURRENT | TORQUE |
| (r/min) | (A) | (r/min) | (A) | (g.cm) | (W) | (A) | (g.cm) |
| N20VA-13115 | 1.5-3.0 | 2.4V CONSTANT | 15800 | 0.096 | 12250 | 0.33 | 2.91 | 0.37 | 1.15 | 13 |
| N20VA-08260 | 4.5-6.0 | 5.0V CONSTANT | 14600 | 0.04 | 11160 | 0.14 | 2.59 | 0.3 | 0.45 | 11 |
| REDUCTION RATIO | 1:3.1:5.1:10.1:20.1:30.1:50.1:63.1:100.1:150.1:210.1:
250.1:298.1:380.1:500.1:1000 |

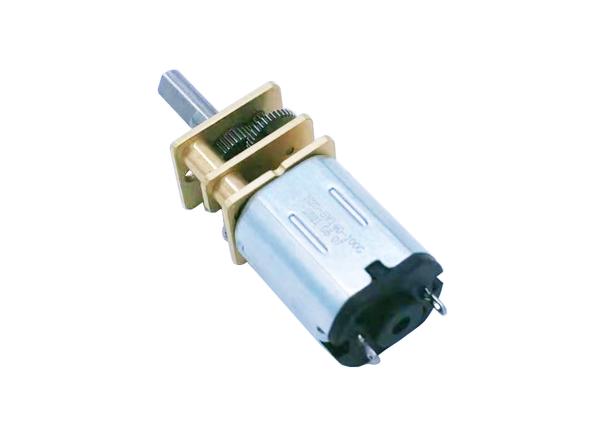

Product Detail Presentation
N20 micro DC brushed motor 3V-12V horizontal gear reducer for
shared bicycle smart lock
China 12mm 5v dc gear motor special motor for electronic lock
