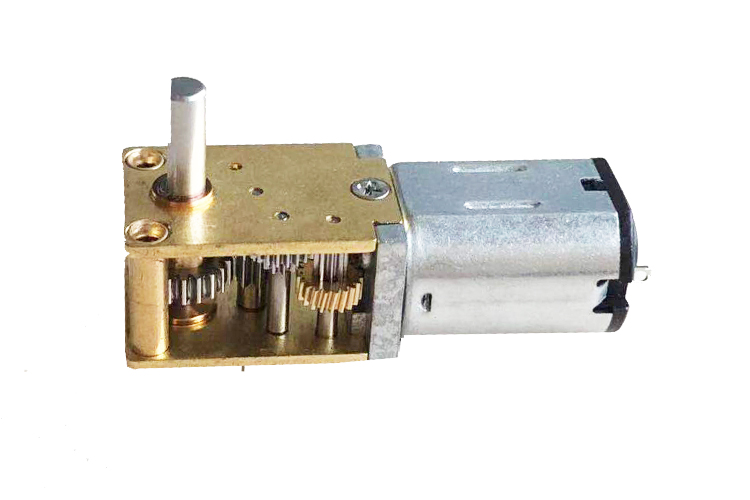

Maintex High Torque Low Speed 12mm Worm DC Motor Biaxial Metal
Gearbox Electronic Door Lock Motor 3v 6v 12v N20
N20 is a DC gear motor made of precious metal brushed DC motor with
precision metal reducer. The outer dimensions are oblate, outer
diameter 12, flat 10, motor length 15mm, the length of the gearbox
is
18MM, DC motor because of mature technology, low price, simple
drive control and widely used in cameras, copiers, door locks,
optical drives, precision instruments, cameras and other fields.
After supporting the gearbox, the torque is greatly increased, the
speed is reduced, and it is easy to control!
Our gearboxes are processed and assembled by imported machine tools
to ensure that the accuracy of each gear is higher than other
manufacturers in the same industry, so the gearbox is stable in
transmission, low in noise, high in efficiency, reliable in
structure, long in life and quality.
stability.
Our team has more than 10 years of experience in micro-motor
design, development and production, so we can achieve product
development and auxiliary design according to the special needs of
customers!
Customer needs are our efforts, please feel free to contact us!
Mechanical Dimension:MM
Typical Applications
- Office Automatic Equipments
- Printer/paper Feeder
- Bank Equipments
- Safe Box
- Ad Equipment
- Household Appliances
- Electtric Door Locks
Specifications
| Product Name | 10mm micro stepper motor |
| Model | N20 Gear Motor |
| Rated Voltage | 3~12 V |
| Current Per Phase | 130mA /phase |
| Insulation Class | Class E for Coils |
| Gear Ratio | 1:21~1:1030 |
| Operating Temperature Range | -0~+55 ℃ |
| Weight | 14g |
| OEM & ODM SERVICE | AVAILABLE
|
Product Detail Presentation
3V 12V N20 mini gear box DC motor 6 Volt Price Gear Mini 12 V
Brushed Industrial Geared Electric Toy Car Bicycle Dc Motor
Maintex high torque low speed 12mm Worm DC Motor Biaxial Metal
Gearbox electronic door lock motor 3v 6v 12v N20 with encoder
