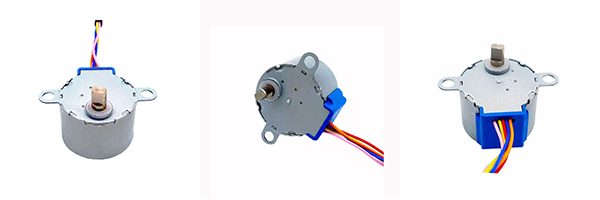

24BYJ48 24mm diameter permanent magnet stepper motor with gearbox
This product is mainly used for sanitary ware, thermostatic valves,
hot water faucets, automatic adjustment of water temperature and
water flow, etc.
At the same time, other areas that require precise control can be
achieved. Due to the realization of open-loop control, low-cost
position control is realized.
It is applied to the precise control of gas valves, water purifier
valves, instruments and other automatic control fields.
At the same time, the external wiring part can adopt various types
and lengths of connecting wires, or FPC FFC according to customer
requirements.
The output part can be used in a variety of ways, such as gears,
pulleys, V-grooves, and turbo screws.
The shape of the mounting plate and the angle of the outlet can be
adjusted according to customer needs!
Our products can be customized, if you can write to me.
Mechanical Dimension:MM
Typical Applications
- Smart Toilet
- Smart kitchen
- Air Conditioning
- Refrigerator
- Vending Machine
- Entertainment Equipment
Specifications
Motor diameter | 24mm |
Rated voltage | 12V |
Resistance (25℃) Ω phase ±8% | 70Ω |
Step angle | 11.25°/32 |
Reduction ratio | 1:32 |
Pull-in torque | ≥58.8mN.m |
Custom torque | ≥29mN.m |
No-load pull-in frequency | ≥500HZ |
No-load pull frequency | ≥800HZ |
Insulation resistance DC.500v | ≥10 |
Insulation dielectric strength | No breakdown or flying fox |
Temperature rise 400HZ 3 min | ≤60K |
| noise | ≤45dB(A) |
Competitive Advantage
Torque Curve For Reference
Product Detail Presentation
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Type of Wire Connect
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
