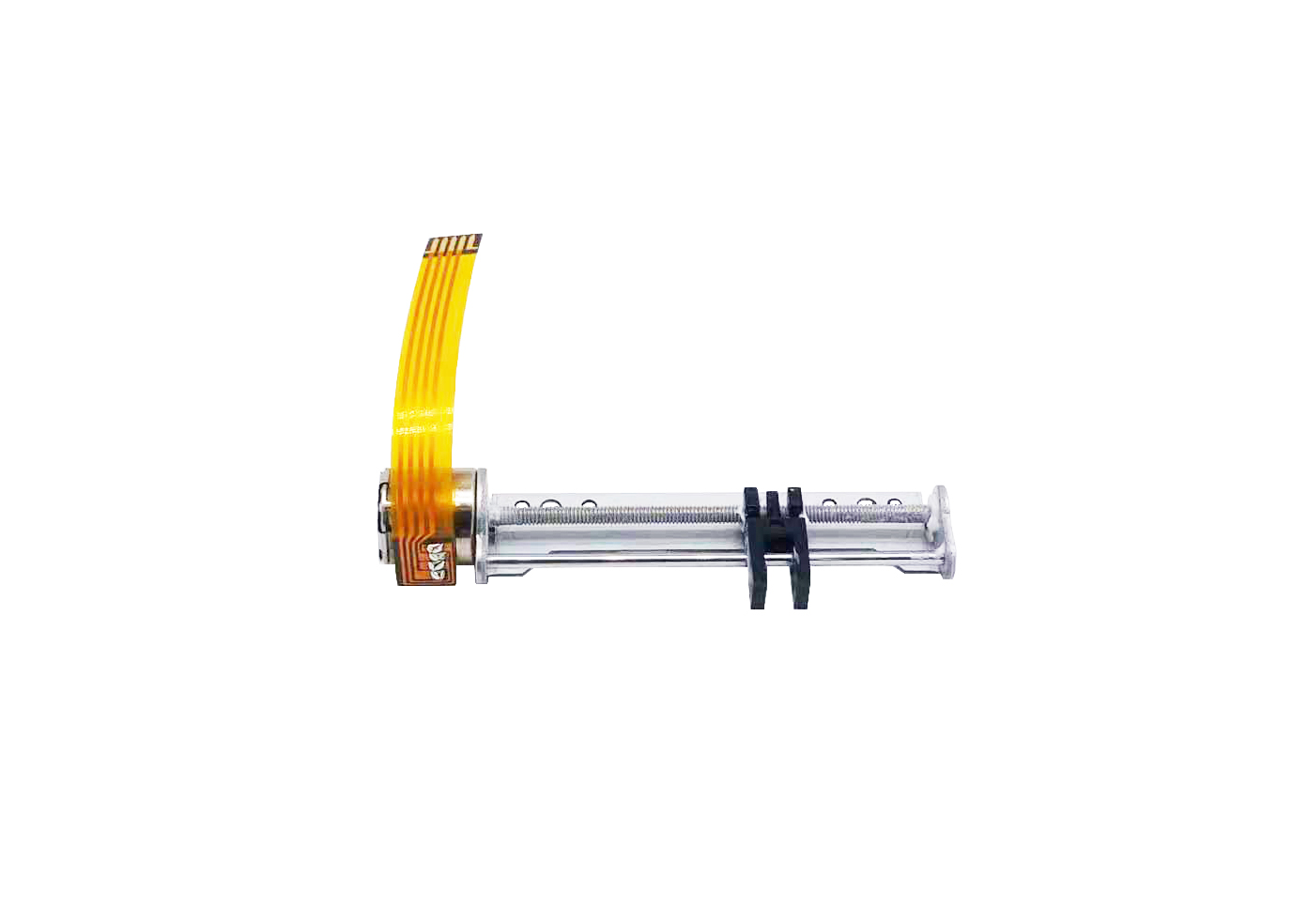

    2 Phase 10mm Micro Linear Slider Screw Stepper Motor 3.3V DC For Door Locks

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : VSM10155
    Certification : RoHS
    Price : $3~$8/Unit
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000000 Units/year
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    2 Phase 10mm Micro Linear Slider Screw Stepper Motor 3.3V DC For Door Locks

    VSM10155 2 phase 10mm micro slider screw stepper motor 3.3V DC pm stepper motor camera lens linear stepper motor

    VSM10155 is a precision lead screw motor ,the output shaft with a pitch of 0.4mm of the screw, through the screw and the screw rod supporting the turn of the screw into a thrust.
    Motor basic step angle is 18 degrees, the motor running 20 steps every week, so the resolution of displacement can reach 0.02mm, to achieve the purpose of precision control.
    Actuator aspects using subdivision drive way to meet.
    Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
    Customer needs are our efforts, please feel free to contact us!

    2 Phase 10mm Micro Linear Slider Screw Stepper Motor 3.3V DC For Door Locks


    Mechanical Dimension:MM

    Typical Applications

    • Intelligent Security Products

    • Camera Lenses

    • Door Locks

    • Wearable device


    Specifications

    Product Name10mm micro stepper motor
    ModelVSM10155
    Rated Voltage3.3V DC

    Coil Resistance

    10Ω±10%

    No.Of Phases

    2 Phases

    Step Angle

    18°/Step

    MAX. STARTING FREQUENCY

    1000 PPS min. (AT 3.3 V DC)

    MAX. SLEWING FREQUENCY

    1200 PPS min. (AT 3.3 V DC)

    PULL IN TORQUE

    3.5 gf-cm min. (AT 500 PPS , 3.3V DC)

    PULL OUT TORQUE

    4.5gf-cm min. (AT 500 PPS , 3.3V DC)

    INSULATION CLASS

    CLASS E FOR COILS

    INSULATION STRENGTH

    300V AC FOR ONE SECOND

    INSULATION RESISTENCE

    50 MΩ (DC 100 V)

    OPERATING TEMPERATURE RANGE

    -20~+70℃

    OEM & ODM SERVICE

    AVAILABLE


    Competitive Advantage

    • High quality and the best price.
    • Fast deliver,storage company and rich inventory
    • Near Shanghai port, the traffic is very convenient.

    Type Of Wire Connect For Reference


    Motor input method with Pin type, FPC, PCB, Lead wire etc.

    These can be customized according to customer needs.

    Type of Fixture Cover

    The regular models are shown in the figure, and the special sizes can be customized.


    Product Detail Presentation

    2 Phase 10mm Micro Linear Slider Screw Stepper Motor 3.3V DC For Door Locks
