Durable Micro Stepper Motor 2 phase pm stepper motor For 3.3V DC
motor Optical Instruments Camera Lenses
The VSM0620-1 micro stepping motor is a precision micro stepping
motor with a body outer diameter of 6MM, a body length of 7MM, and
a shaft outer diameter of 1MM. The shaft length can be
appropriately changed as required. It can be equipped with gears,
pulleys, worms, screws, and other output devices.
The basic step angle of the motor is 18 degrees, and the motor runs
20 steps per week.
This kind of micro stepping motor is widely used in cameras,
optical instruments, lenses, flashlights, precision medical
equipment, automatic door locks and other fields because of its
small size, high precision and easy control.
Our team has more than 10 years of experience in stepper motor
design, development and production, and can realize product
development and auxiliary design according to the special needs of
customers!
Customer needs are our efforts, please feel free to contact us!

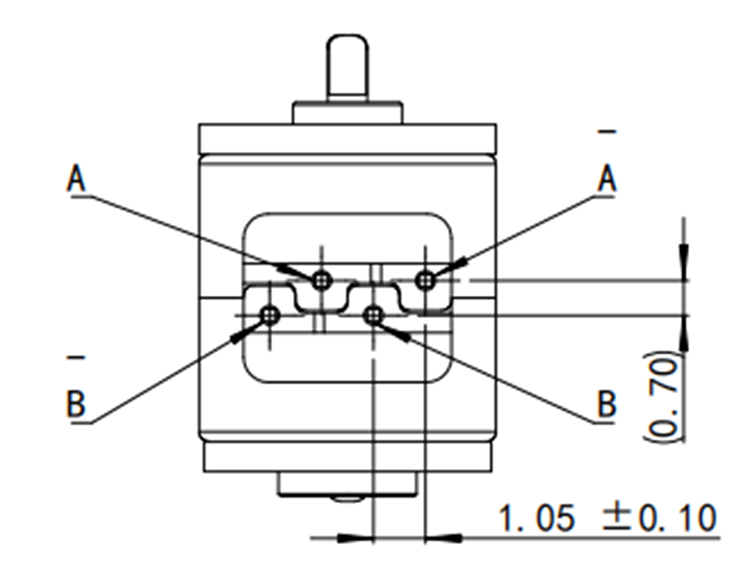

Mechanical Dimension:MM
Technical Features
The motor input part is shown as four needles, but it can be used
in various forms such as PCB, FPC, and connecting line according to
customer requirements.
The size and shape of the mounting plate can be changed according
to customer requirements.
At the same time, we can match the corresponding drive system to
meet the needs of customers!
Our team has more than 10 years of stepper motor design,
development and production experience, so we can achieve product
development and auxiliary design according to the special needs of
customers! Customer needs is our efforts, please feel free to
contact!
Typical Applications
Specifications
| Product Name | 6mm micro stepper motor |
| Model number | VSM0620-1 |
| Rated Voltage | 3.3V DC |
| Coil Resistance | 20Ω±10% |
| No. Of phase | 2-2 Phases |
| Step Angle | 18 °/step |
Max.Sraring Frequency | 1300PPS min.(AT 3.3 V DC) |
Max.Slewing Frequency | 2000PPS min.(AT 3.3 V DC) |
| Pull-In Torque | 0.7gf-cm min(AT 800 PPS ,3.3V DC) |
| Pull-Out Torque | 0.9gf-cm min(AT 800 PPS ,3.3V DC) |
Insulation Class | Class e for coils |
| Insulation Strength | 100 V AC for One Second 3mA MAX |
| Insulation Resistance | 1mΩ(DC 100 V) |
| Operating Temperature Range | -10~+60 ℃ |
Competitive Advantage
- High quality and the best price.
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Torque Curve For Reference
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Product Detail Presentation
