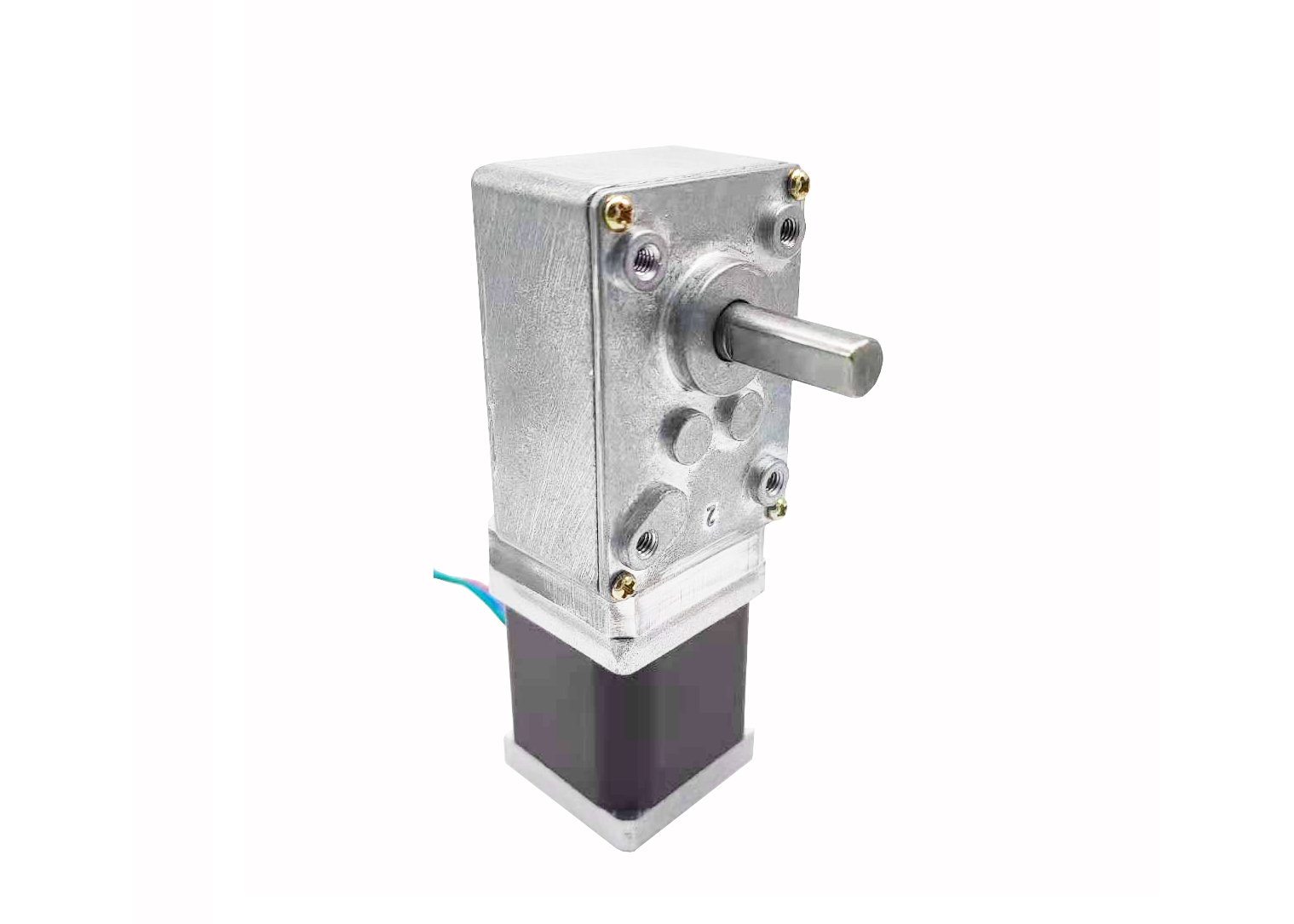

Nema14 35HS42+634JSX49 1.8 Degree Step Angle High Quality Hybrid Stepper Motor Plus Worm Gear Transmission

The 35HS42+634JSX49 product is a hybrid stepping motor with a square size of 35*42. The length can be adjusted according to power and other requirements, and the range is generally between 20~51mm. The length of the worm gear reducer is 58.1mm, and the motor gear reduction ratio is 1:49. The conventional gear reduction ratio is 1:49 1:74 1:101 1:218 1:505 1:634 The gear reduction ratio can be customized according to customer requirements, and special requirements can be re-evaluated.
Hybrid stepping motors have the advantages of high control accuracy, high transmission resolution, and large output torque. It is widely used in engraving machines, medical equipment, stage lighting, precision instruments and other fields.
The drive device or control device required by the customer can be developed in cooperation with the customer.
The basic step angle of the motor is 1.8 degrees.
At the same time, we can provide products of the same size with a step angle of 0.9 degrees!

Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

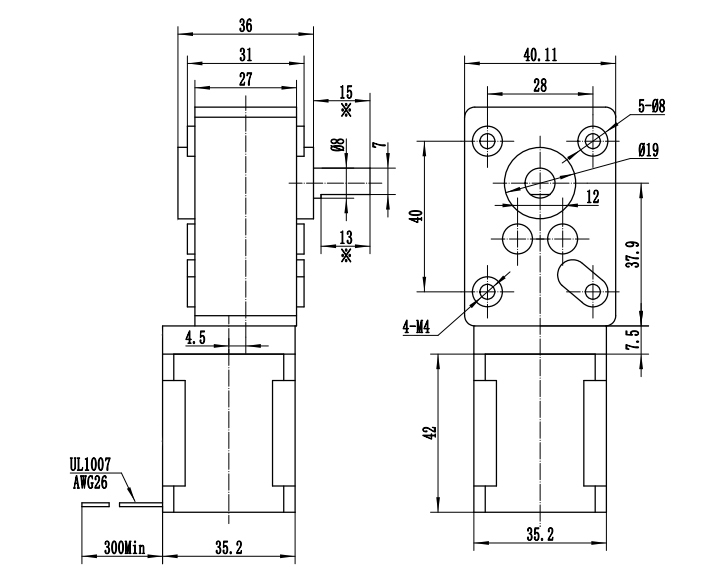

Mechanical Dimension:MM

​Textile EquipmentTypical Applications

• Automatic Control
• Packing Machine
• Engineering Vehicle
• 3D Printer
• New Energy
• Gate Openers
• Vending Machine
• Conveyor System
• Medical Equipment
• Fluid Control
• OA Financial Equipment

Competitive Advantage

• High quality and the best price.

• Fast deliver,storage company and adequate inventory.

• Near Shanghai port, the traffice is very convenient.

Product Detail Presentation

CHANGZHOU VIC-TECH MOTOR TECHOLOGY CO., LTD
Changzhou Vic-Tech Motor Techology Co., Ltd has been specializing in producing micro motors and accessories since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers.

We have a R & D team with 20 years of experience in motor development, providing customers with design and development custom services. By leveraging our honesty, dependability and quality, Vic-Tech Motor aims to continue as a pioneer in the sales overseas by seeking global partners.
