    8mm 2 Phase Micro Slider Linear 3.3 V Stepper Motor With Bracket for Camera Lenses、Door Locks 、Wearable device

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : VSM08138
    Certification : RoHS
    Price : $3~$7/Unit
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 1000000 Units/year
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    8mm 2 Phase Micro Slider Linear 3.3 V Stepper Motor With Bracket for Camera Lenses、Door Locks 、Wearable device

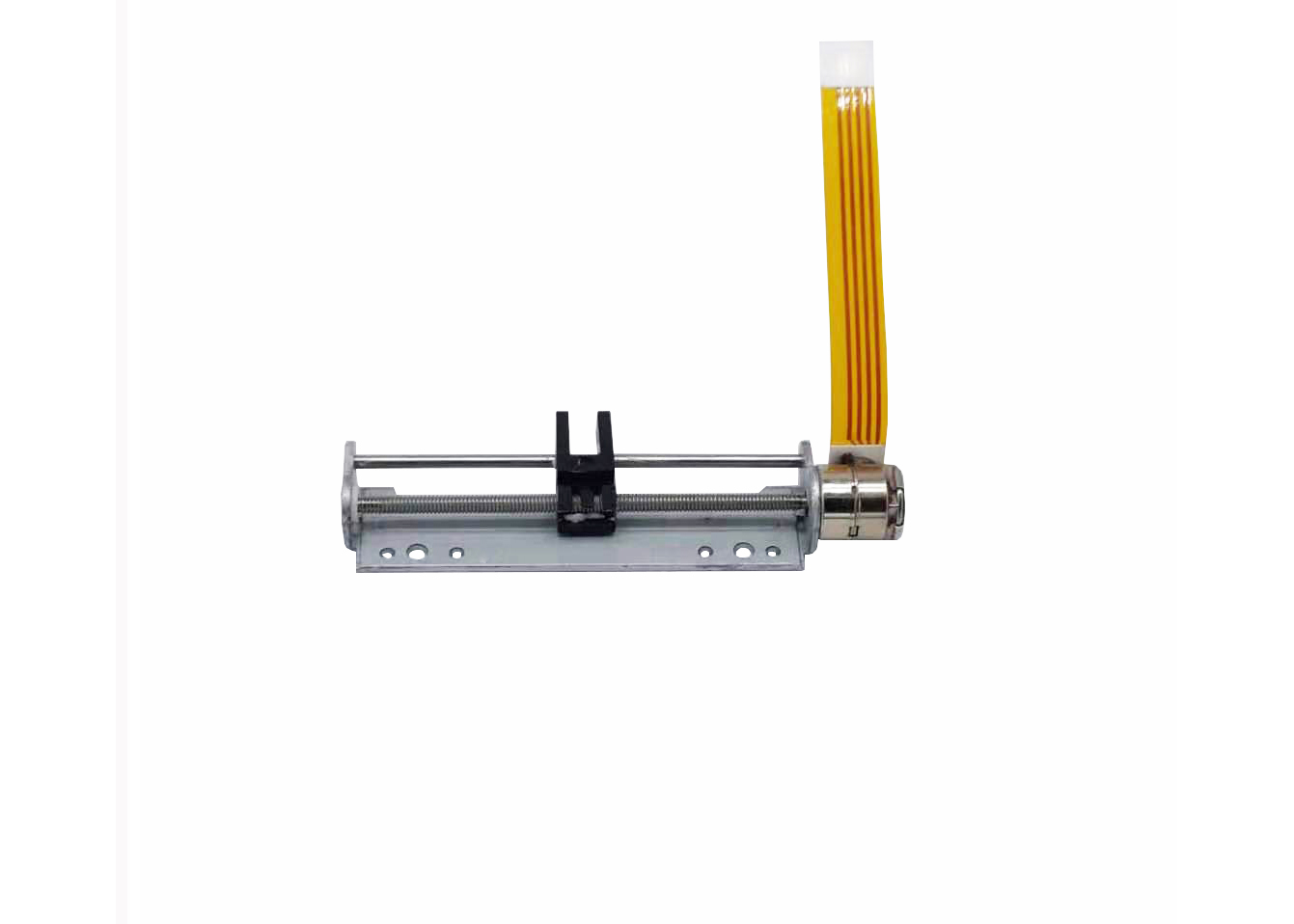

    VSM08138 8mm 2 phase micro slider linear stepper motor 3.3V dc screw motor with bracket stepper motor

    VSM08138 is a precision micro stepping motor. The pitch between the output shaft and the screw is 0.4mm. The screw and the screw support the rotation of the screw to generate thrust.
    The basic step angle of the motor is 18 degrees, the motor runs 20 steps per week, and the displacement resolution can reach 0.02mm, achieving the purpose of precise control.
    The actuator adopts the subdivision drive mode to meet the requirements.
    Due to its small size, high precision, easy control and other excellent characteristics, this micro stepping motor is widely used in cameras, optical instruments, lenses, precision medical equipment, automatic door locks and other fields.
    The motor input part is FPC, but it can be changed to connect pin, PCB and other forms according to customer needs.
    The mounting bracket can be replaced according to customer requirements.
    Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
    Customer needs are our efforts, please feel free to contact us!

    8mm 2 Phase Micro Slider Linear 3.3 V Stepper Motor With Bracket for Camera Lenses、Door Locks 、Wearable device


    Mechanical Dimension:MM

    Typical Applications

    • Intelligent Security Products

    • Camera Lenses

    • Door Locks

    • Wearable device


    Specifications

    Product Name8mm micro stepper motor
    ModelVSM10138
    Rated Voltage3.3V DC

    Coil Resistance

    16Ω±10%

    No.Of Phases

    2 Phases

    Step Angle

    18°/Step

    MAX. STARTING FREQUENCY

    800 PPS min. (AT 3.3 V DC)

    MAX. SLEWING FREQUENCY

    1200 PPS min. (AT 3.3 V DC)

    PULL IN TORQUE

    1.5 gf-cm min. (AT 500 PPS , 3.3V DC)

    PULL OUT TORQUE

    2.0gf-cm min. (AT 500 PPS , 3.3V DC)

    INSULATION CLASS

    CLASS E FOR COILS

    INSULATION STRENGTH

    100V AC FOR ONE SECOND

    INSULATION RESISTENCE

    1 MΩ (DC 100 V)

    OPERATING TEMPERATURE RANGE

    -20~+70℃

    OEM & ODM SERVICE

    AVAILABLE
