VSM08248 2 phase 8mm 18 degree step angle micro slider stepper motor 3.3V DC screw stepper motor with bracket

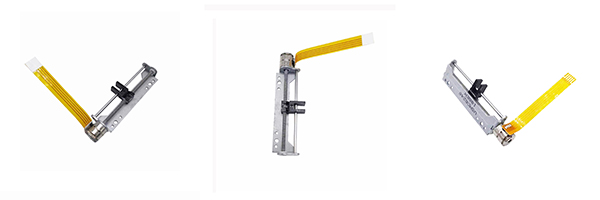

VSM08248 is a special micro stepping motor (or linear stepping motor), with a bracket and a movable slider (when the motor rotates, the slider will move forward or backward), the moving speed can be adjusted by precision Micro-stepping motor drive pulse frequency control, moving distance can be controlled by precious micro-stepping drive pulse number. For this typical motor, when the motor drives 2-2 phases, 1 pulse moves the slider by 0.02 mm. As shown in the picture, the basic slide is a black plastic (POM) unit, and the slide can also be customized into any shape.
Our team has more than 10 years of experience in stepper motor design, development and production, and can realize product development and auxiliary design according to the special needs of customers!
Customer needs are our efforts, please feel free to contact us!

Mechanical Dimension:MM

Typical Applications

• Intelligent Security Products

• Camera Lenses

• Door Locks

• Wearable device




Specifications

Competitive Advantage

• High quality and the best price.
• Fast deliver,storage company and rich inventory
• Near Shanghai port, the traffic is very convenient.

Type Of Wire Connect For Reference

Motor input method with Pin type, FPC, PCB, Lead wire etc.

These can be customized according to customer needs.

Type of Fixture Cover

The regular models are shown in the figure, and the special sizes can be customized.

Product Detail Presentation

CHANGZHOU VIC-TECH MOTOR TECHOLOGY CO., LTD
Changzhou Vic-Tech Motor Techology Co., Ltd has been specializing in producing micro motors and accessories since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers.

We have a R & D team with 20 years of experience in motor development, providing customers with design and development custom services. By leveraging our honesty, dependability and quality, Vic-Tech Motor aims to continue as a pioneer in the sales overseas by seeking global partners.
