High progress two-phase stepper motor with 35 mm diameter and 15
degree step angle
SM35-024-12100 Micro stepping motor
Suitable for printers, scanners, monitors, etc.
The basic step angle of the motor is 15 degrees, that is, 24 steps
per revolution, plus the deceleration effect of the gearbox, the
final motor rotation angle resolution can reach 0.1-12 degrees,
which can be used for various needs.
Accurately control the rotation position of the magnetic field.
Given a suitable stepping motor drive frequency, a certain speed
and torque can be achieved.
Our products can be customized, if you are interested, you can
write to me.

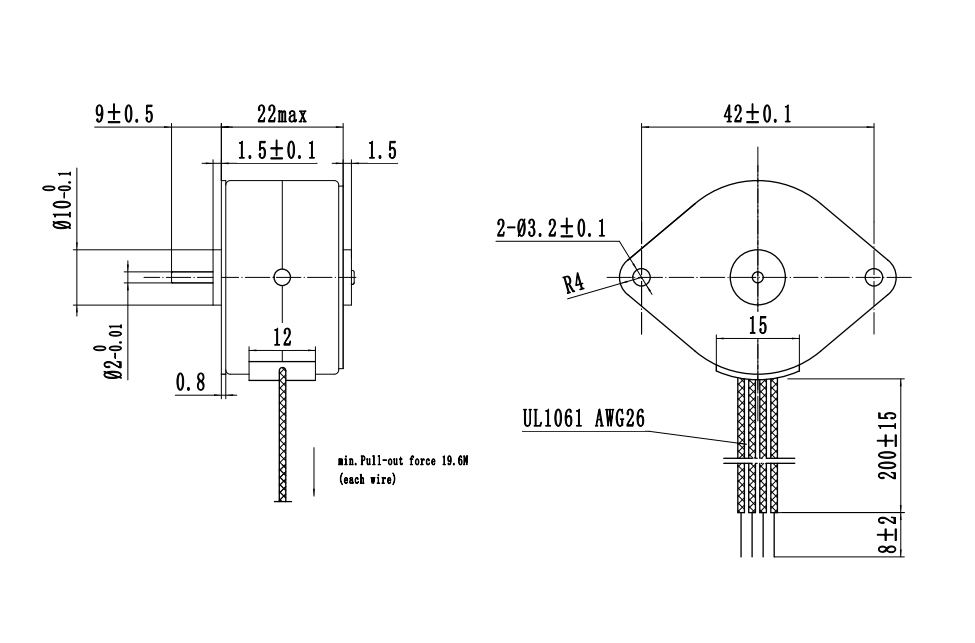

Mechanical Dimension:MM
Technical Features
This product gear box uses the most advanced equipment in the
international processing related parts, so the high precision, high
efficiency, low noise, and the use of reasonable and reliable
process, make the product has better reliability.
The power input part and standard stepper motor can be used as
probe structure, FPC, FFC, PCB cable and other forms.
Part of the output of the motor can be used in a variety of output
structure, such as the circular axis, D axis, and the wire rod!
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
Model No | SM35-024L-12100 |
Rated voltage | 12V DC |
NO of Phase | 12Phases |
Step Angle | 15° |
Winding Resistance | 100±10%Ω at 25℃ |
Winding Current | 120mA |
Max Pull-in Rate | 250 PPS |
Pull out Torque at 100PPS | 80g.cm |
Winding Temperature at 300PPS | ≤65K |
Dielectric Strength | 600VAC ISEC 1mA |
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user
drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Product Detail Presentation
