High precision 3V micro gear stepper motor 2 phase 4 wire with gear
box
The SM10-100G-16M3 gear stepper motor consists of a 10mm micro
stepper motor and a 10*12mm metal gear box. The diameter of the
motor is 10mm, the resistance of each phase of the motor is 18Ω,
the step angle is 18 °, and each revolution is 20 steps. The wiring
type is lead, and there are 4 wires (red, white, black, brown) for
the motor lead housing, red and white are phase A, and black and
brown are phase B. The voltage range of SM10-100G-18M5 miniature
gear stepper motor is 3V to 5V, and the resistance can be
customized according to your requirements
Our products can be customized, if you are interested, you can
write to me
Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | 10 mm geared stepper motor |
| Model | SM10-100G 16M3 |
| Resistance | 18 Ω±7% |
| Voltage | 3 V |
| Current Per Phase | 200 mA |
| Frequency | 660 pps min |
| Drive Method | 2-2 Phase |
| Gear Ratio | 1:380 |
| OEM & ODM SERVICE | AVAILABLE |
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Shaft Type
Out shaft standard as follows,also can customerized due to the user
drawings
welcome to contact customer service for more types
Round Type : DIA3mm. 4mm. 5mm
D-cut Type: DIA3-D2.5 DIA4-D3 etc
Screw Type: M3 M4 M5 Serial
Trape Type
I-cut Type: DIA3-I2 DIA4-I3
Other Type: Shaft with a hole etc
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.

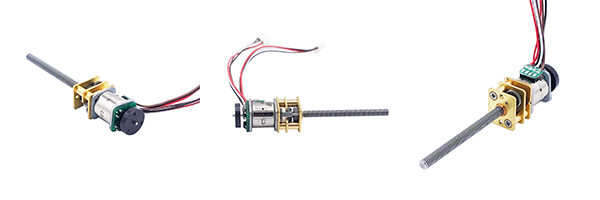

Product Detail Presentation
