    Nema 14 35mm Hybrid Ball Screw Stepper Motor 1.8° Step Angle Voltage 1.4 / 2.9V Current 1.5A,4 Lead Wires

    Nema 14 (35mm) hybrid ball screw stepper motor 1.8° Step Angle Voltage 1.4 / 2.9V Current 1.5A,4 Lead Wires

    Nema 14 (35mm) hybrid stepper motor, bipolar, 4-lead, ball screw, low noise, long life, high performance, CE and RoHS certified.

    Nema 14 35mm Hybrid Ball Screw Stepper Motor 1.8° Step Angle Voltage 1.4 / 2.9V Current 1.5A,4 Lead Wires


    Descriptions:


    Product Name

    35mm hybrid ball screw stepper motor

    Model

    VSM35BSHSM

    Type

    hybrid stepper motors

    Step Angle

    1.8°

    Voltage (V)

    1.4 / 2.9

    Current (A)

    1.5

    Resistance (Ohms)

    0.95 / 1.9

    Inductance (mH)

    1.5 / 2.3
    Lead Wires4

    Motor Length (mm)

    34 / 45

    Ambient Temperature-20℃ ~ +50℃
    Temperature Rise80K Max.
    Dielectric Strength1mA Max. @ 500V, 1KHz, 1Sec.
    Insulation Resistance100MΩ Min. @500Vdc

    Certifications:


    Nema 14 35mm Hybrid Ball Screw Stepper Motor 1.8° Step Angle Voltage 1.4 / 2.9V Current 1.5A,4 Lead Wires

    Electrical Parameters:

    Motor Size

    Voltage/

    Phase

    (V)

    Current/

    Phase

    (A)

    Resistance/

    Phase

    (Ω)

    Inductance/

    Phase

    (mH)

    Number of

    Lead Wires

    Rotor Inertia

    (g.cm2)

    Motor Weight

    (g)

    Motor Length L

    (mm)

    351.41.50.951.442019034
    352.91.51.93.243023047

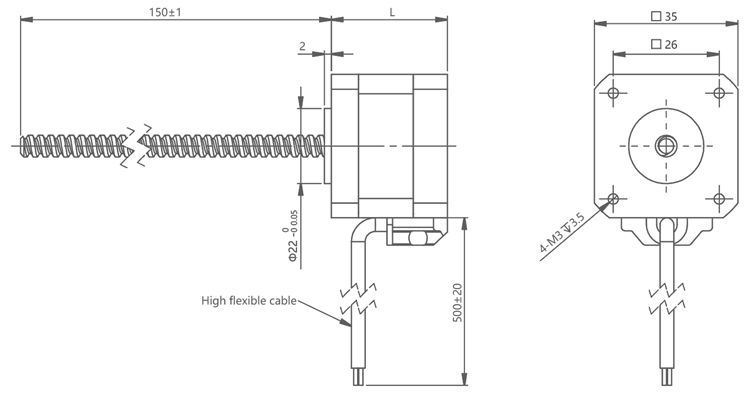

    VSM35BSHSM standard external motor outline drawing:

    Notes:

    Lead screw length can be customized

    Customized machining is viable at the end of lead screw

    Please contact us for more ball screw specifications.


    VSM35BSHSMBall nut 0801 or 0802 outline drawing:


    VSM35BSHSMBall nut 1202 outline drawing:


    VSM35BSHSMBall nut 1205 outline drawing:


    VSM35BSHSMBall nut 1210 outline drawing:

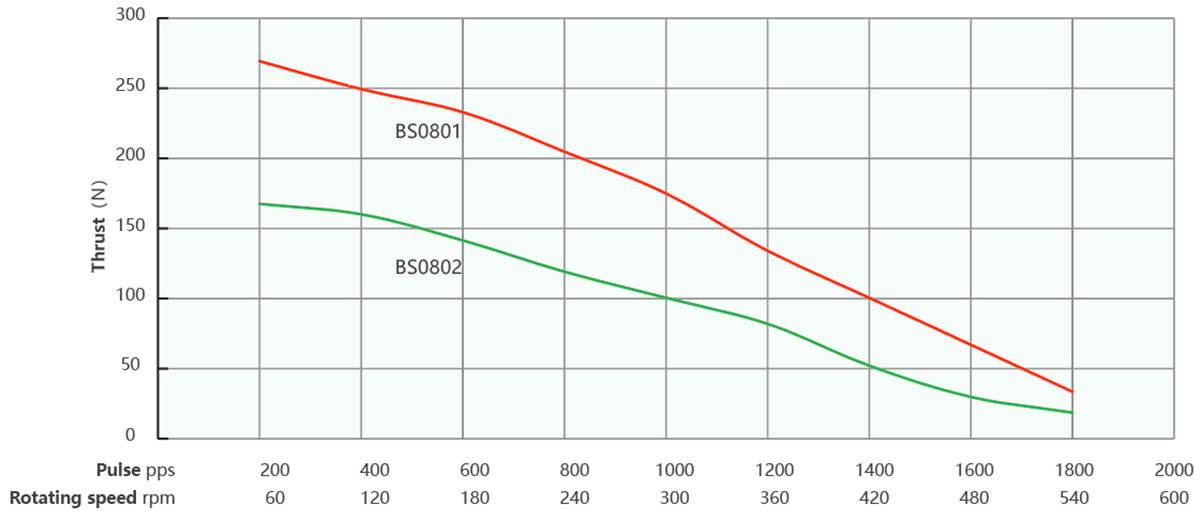

    Speed and thrust curve:

    35 series 34mm motor length bipolar Chopper drive
    100% current pulse frequency and thrust curve



    35 series 47mm motor length bipolar Chopper drive
    100% current pulse frequency and thrust curve


    Lead (mm)Linear velocity (mm/s)
    112345678910
    22468101214161820
    55101520253035404550
    10102030405060708090100

    Test condition:Chopper drive, no ramping, half micro-stepping, drive voltage 24V


    Areas of application:


    Industrial Automation


    CNC Machinery


    3D Printing


    Medical Devices


    Laboratory Equipment


    Optical Systems


    Packaging and Labeling


    Semiconductor Equipment


    Advantage:


    High Positioning Accuracy


    Excellent Torque Output


    High Efficiency


    Low Vibration and Noise


    Reliability and Durability


    Compact Size


    Easy Control and Operation


    Motor Selection Requirements:

    ►Movement/mounting direction

    ►Load Requirements

    ►Stroke Requirements

    ►End machining requirements

    ►Precision Requirements

    ►Encoder Feedback Requirements

    ►Manual Adjustment Requirements

    ►Environmental Requirements


    Production workshop:
