    Nema 14 (35mm) hybrid stepper motor, bipolar, 4-lead, ACME lead screw,1.8° Step Angle,high performance.

    Nema 14 (35mm) hybrid stepper motor, bipolar, 4-lead, ACME lead screw,1.8° Step Angle,high performance.

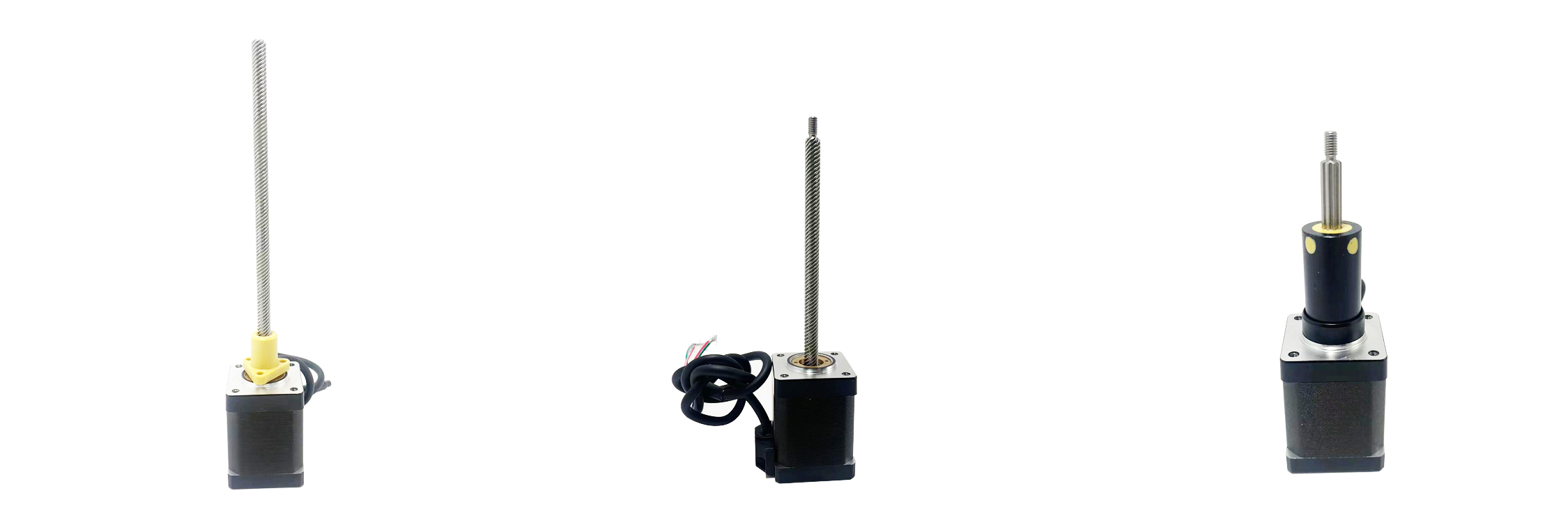

    This 35mm hybrid stepper motor is available in three types: externally driven, through-axis, and through-fixed-axis. You can choose according to your specific needs.

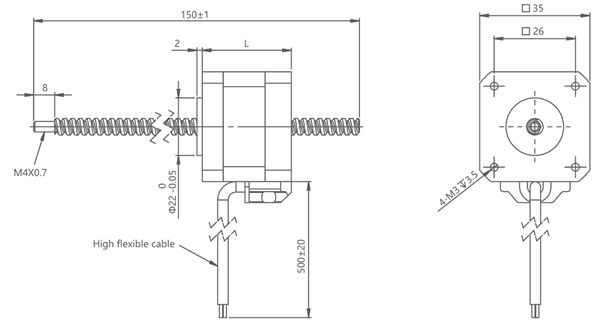

    VSM35HSM standard external motor outline drawing:


    Notes:

    Lead screw length can be customized

    Customized machining is viable at the end of lead screw


    Descriptions:


    Product Name

    35mm hybrid stepper motors

    Model

    VSM35HSM

    Type

    hybrid stepper motors

    Step Angle

    1.8°

    Voltage (V)

    1.4/ 2.9

    Current (A)

    1.5

    Resistance (Ohms)

    0.95 / 1.9

    Inductance (mH)

    1.5 /2.3

    Lead Wires4

    Motor Length (mm)

    35/45

    Ambient Temperature-20℃ ~ +50℃
    Temperature Rise80K Max.
    Dielectric Strength1mA Max. @ 500V, 1KHz, 1Sec.
    Insulation Resistance100MΩ Min. @500Vdc

    Certifications:


    Nema 14 (35mm) hybrid stepper motor, bipolar, 4-lead, ACME lead screw,1.8° Step Angle,high performance.

    Electrical Parameters:

    Motor Size

    Voltage

    /Phase

    (V)

    Current

    /Phase

    (A)

    Resistance

    /Phase

    (Ω)

    Inductance

    /Phase

    (mH)

    Number of

    Lead Wires

    Rotor Inertia

    (g.cm2)

    Motor Weight

    (g)

    Motor Length L

    (mm)

    351.41.50.951.442019034
    352.91.51.93.243023047


    Lead screw specifications and performance parameters:


    Diameter

    (mm)

    Lead

    (mm)

    Step

    (mm)

    Power off self-locking force

    (N)

    6.351.270.00635150
    6.353.1750.01587540
    6.356.350.0317515
    6.3512.70.06353
    6.3525.40.1270

    Note: For more lead screw specifications, please contact us.

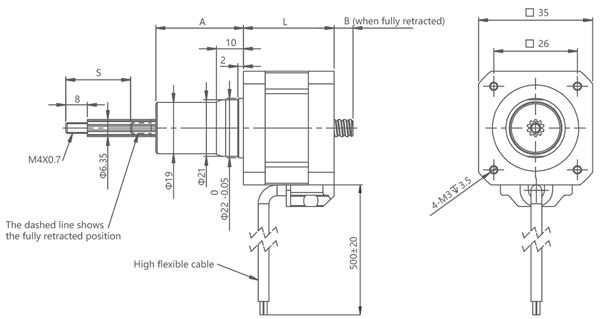

    35mm hybrid stepper motors standard captive motor outline drawing:


    Notes:

    Customized machining is viable at the end of lead screw


    Stroke S

    (mm)

    Dimension A

    (mm)

    Dimension B (mm)
    L = 34L = 47
    12.720.68.40
    19.12714.80.8
    25.433.321.17.1
    31.839.727.513.5
    38.14633.819.8
    50.858.746.532.5
    63.571.459.245.2


    35mm Hybrid Stepper Motor Standard Through-Fixed Motor Outline Drawing​:


    Notes:

    Lead screw length can be customized

    Customized machining is viable at the end of lead screw

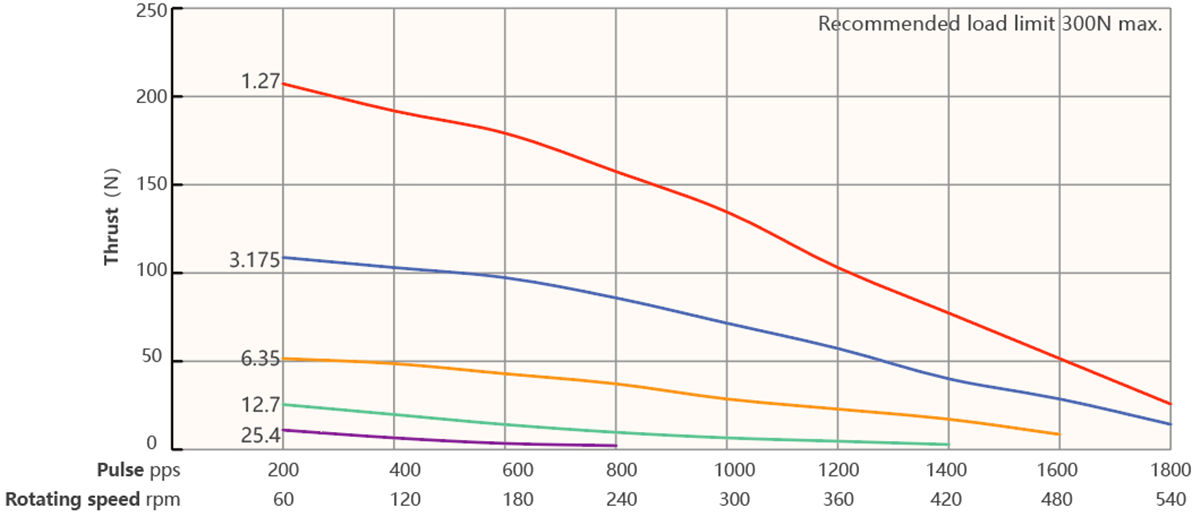

    Speed and thrust curve:

    35 series 34mm motor length bipolar Chopper drive
    100% current pulse frequency and thrust curve (Φ6.35mm lead screw)



    35 series 47mm motor length bipolar Chopper drive
    100% current pulse frequency and thrust curve (Φ6.35mm lead screw)



    Lead (mm)Linear velocity (mm /s)
    1.271.272.543.815.086.357.628.8910.1611.43
    3.1753.1756.359.52512.715.87519.0522.22525.428.575
    6.356.3512.719.0525.431.7538.144.4550.857.15
    12.712.725.438.150.863.576.288.9101.6114.3
    25.425.450.876.2101.6127152.4177.8203.2228.6

    Test condition:

    Chopper drive, no ramping, half micro-stepping, drive voltage 40V


    Areas of application:


    Industrial Automation


    Robotics


    Textile Machinery


    Packaging Machinery


    Laboratory Automation


    Consumer Electronics


    Advantage:


    High Accuracy


    Good low-speed performance


    Simple Drive Control


    Reliability and Durability


    Fast Response and Dynamic Performance


    Wide range of application areas


    Motor Selection Requirements:

    ►Movement/mounting direction

    ►Load Requirements

    ►Stroke Requirements

    ►End machining requirements

    ►Precision Requirements

    ►Encoder Feedback Requirements

    ►Manual Adjustment Requirements

    ►Environmental Requirements
