15mm external drive permanent magnet linear stepper motor

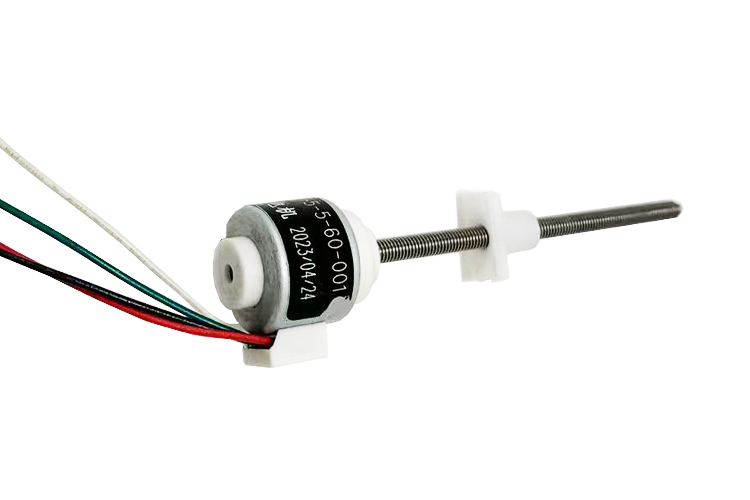

This is a 15mm permanent magnet linear stepper motor with external
drive.
The outer diameter of the motor is 15mm, the step angle is 18 °,
the screw diameter is 3.0mm, and the maximum thrust is 10N.
Suggested load less than or equal to 8N
Step size=(Step size/360) * Lead (mm)
The available leads are 0.4mm, 0.5mm, and 1mm
Please note that speed and acceleration should also be considered
when selecting the appropriate wire. The speed of a linear stepper
motor is inversely proportional to the thrust, which means that
increasing the operating speed of the motor will correspondingly
reduce the thrust of the motor.
At the same time, it is also necessary to consider: work cycle,
system life, environmental factors, repeated positioning accuracy,
noise and vibration requirements, acceptable backlash,
acceleration/deceleration requirements, driving conditions,
horizontal or vertical
Mechanical Dimension:MM
STEP SPEED AND THRUST CURVE:
Technical Features
This product is a patented product of the company. It converts the
rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in
valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal
posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.
Typical Applications
Specifications
Motor diameter | 15mm |
Rated voltage | 4V 5V 12V |
No. of phases | 2 Phases |
Phase Current | 200mA 160mA 70mA |
Phase Inductance | 20Ω 33Ω 180Ω |
Step angle | 18 degree |
| Stear Travel | 0.02mm 0.025mm 0.05mm |
Competitive Advantage
High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.
Product Detail Presentation
