Nema 17 Captive Type 2-phase 4-wire high torque screw stepper motor
with copper nut linear actuator
VSM42HS40-08045L8-15.3 is a hybrid stepper motor with a size of 42
* 42 * 39.5mm. The length of the body can be adjusted according to
customer requirements. The normal height range of the motor body is
between 25mm and 60mm. If there are special requirements,
customization is also acceptable
The screw rod of this motor is TR8 * 8 (P2), with metal nuts. The
diameter and length of the screw rod can also be customized
according to customer needs, as well as the installation nut
Hybrid stepper motors have the advantages of high control accuracy,
high transmission resolution, and large output torque. Widely used
in carving machines, medical equipment, stage lighting, precision
instruments and other fields.
The driver or control device required by the customer can be
developed in cooperation with the customer.
The basic step angle of the electric motor is 1.8 degrees.
Meanwhile, we can provide products of the same size with a step
angle of 0.9 degrees!
The output part is linear.
Our team has over 10 years of experience in the design,
development, and production of stepper motors, so we can achieve
product development and auxiliary design based on customers'
special needs!
Customer needs are our efforts,
Mechanical Dimension:MM
The 42mm Hybrid Stepper Motor Series is a versatile family of
motors suitable for a wide range of applications. Use with a
microstepping driver to reduce vibration and achieve higher step
resolution. Choose a baseline version or request your own
customized configuration.
SM15-18.6L- external shaft Specification:
Product Name | Linear stepper motor |
Model | VSM42HS40-08045L8-15.3 |
Resistence | 8.4Ω±10% |
Number of phase | 2 |
Holding torque | 3.5Kg.cm |
Position accuracy | 1.8°±0.09° |
Phase current | 0.8A |
Phase voltage | 6.7V |
| Phase Inductance | 16.8mH±20%(1khz 1v Rms) |
Weight | 260g |
OEM&ODM Service | Available |
Application:
Robotics field: 42mm hybrid reduction stepper motors can be used as joint drivers
for robots to realize precision control and movement of robots.
Automation equipment field: 42mm hybrid geared stepper motors can be applied to various
equipment in automated production lines, such as conveyor belts,
printing equipment, packaging machinery, etc., to realize
automation control and precise positioning.
Textile machinery field: 42 mm hybrid reduction stepper motors can be used in a variety of
textile machinery, such as looms, sewing machines, printing and
dyeing machines, etc., to achieve precision control and
positioning.
Electronic equipment field: 42 mm hybrid reduction stepper motor can be applied to a variety
of electronic equipment in the precision control, such as precision
instruments, digital cameras, automatic focusing mechanism.
Medical equipment field: 42mm hybrid reduction stepper motors can be applied to precision
control in medical equipment, such as surgical robots, medical
cameras, medical syringes and so on.
Aerospace field: 42mm hybrid reduction stepper motors can be applied in aerospace
equipment, such as aviation instruments, wing flap adjustment of
civil aircraft, etc.

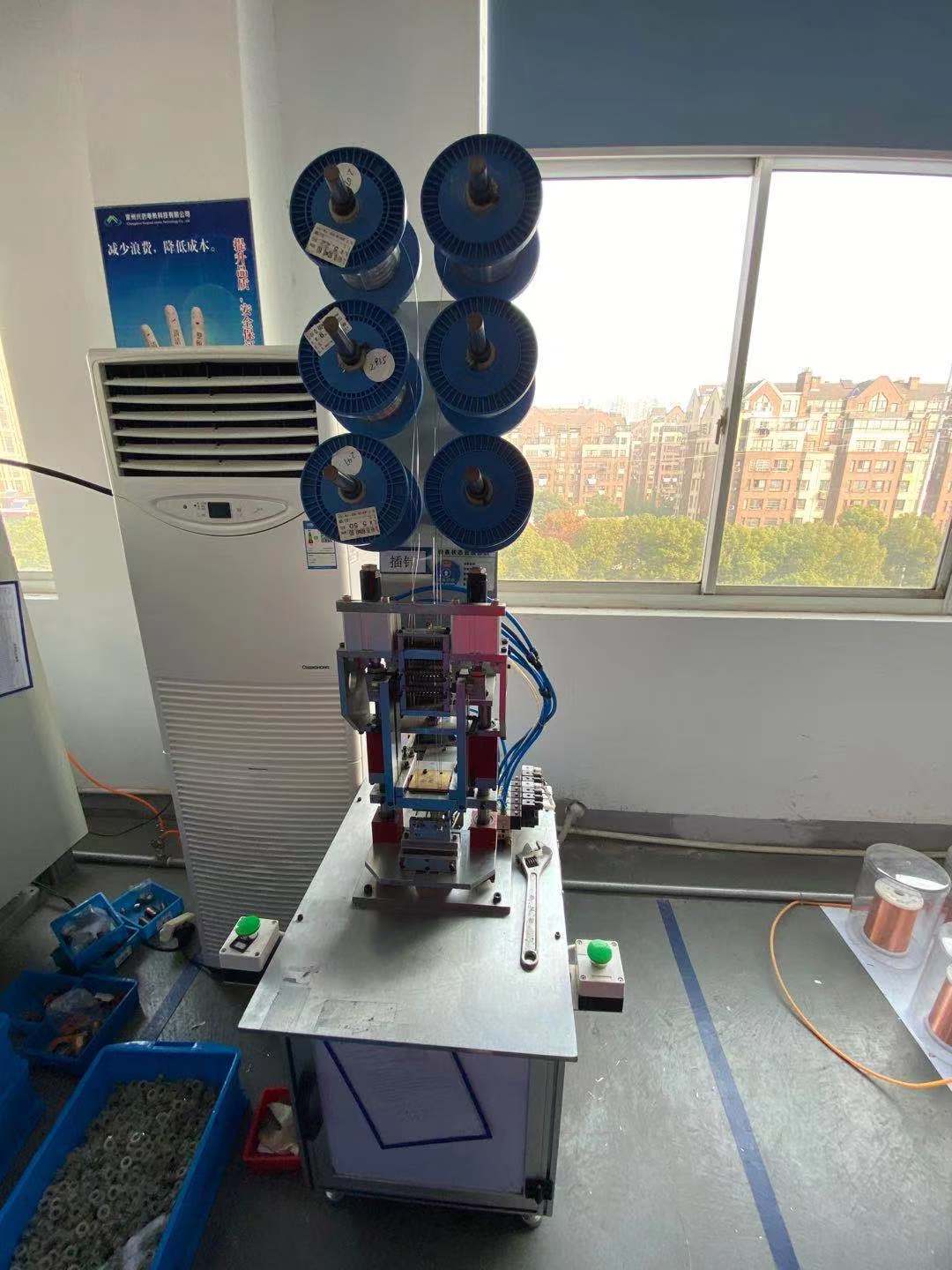

Production workshop:
