PM15 bipolar mini high precision linear stepper motor 5V 12V
external drive type DC linear stepper actuator screw motor
This motor is a 15mm external drive stepper motor with a guide
screw, external shaft: The motor operates as a lead screw drives a
nut, which is fast to your structure.
The motor stepper angle is 18 degrees, and the screw pitch is
0.5mm. When the motor stepper rotates one step, the screw moves
0.025mm, the motor diameter is 15mm, and the body height is 18.6mm.
The length of the screw can be customized according to customer
installation needs.
This product is a patented product of the company. It converts the
rotation of the motor into linear motion through the relative
motion of the internal rotor and screw. Mainly used in valve
control, automatic buttons, medical equipment, textile machinery,
robots and other related fields.
The motor output is usually connected by wires and plugs, and the
installation mechanism can also be customized according to customer
needs.
Our team has more than 10 years of stepper motor design,
development and production experience, so we can achieve product
development and auxiliary design according to the special needs of
customers!
Customer needs are our efforts, please feel free to contact us!
Mechanical Dimension:MM
The length of the screw rod can be customized, with regular M3 *
0.5 and TR3 * 0.5 screw rods
SM15-18.6L- external shaft Specification:
Product Name | PM15 5v Linear stepper motor |
Model | SM15-18.6L- external shaft |
Phase Resistance | 33Ω±10% |
Phase inductance | 8.7Ω±10% |
The Mark Thrust | 4N/300pps |
Step Angle | 18° |
Screw Lead | 0.5 |
Step Travel | 0.025 |
| Lead Wrie | UL 1061 AWG26 |
Insulation Class | class E |
OEM&ODM Service | Available |

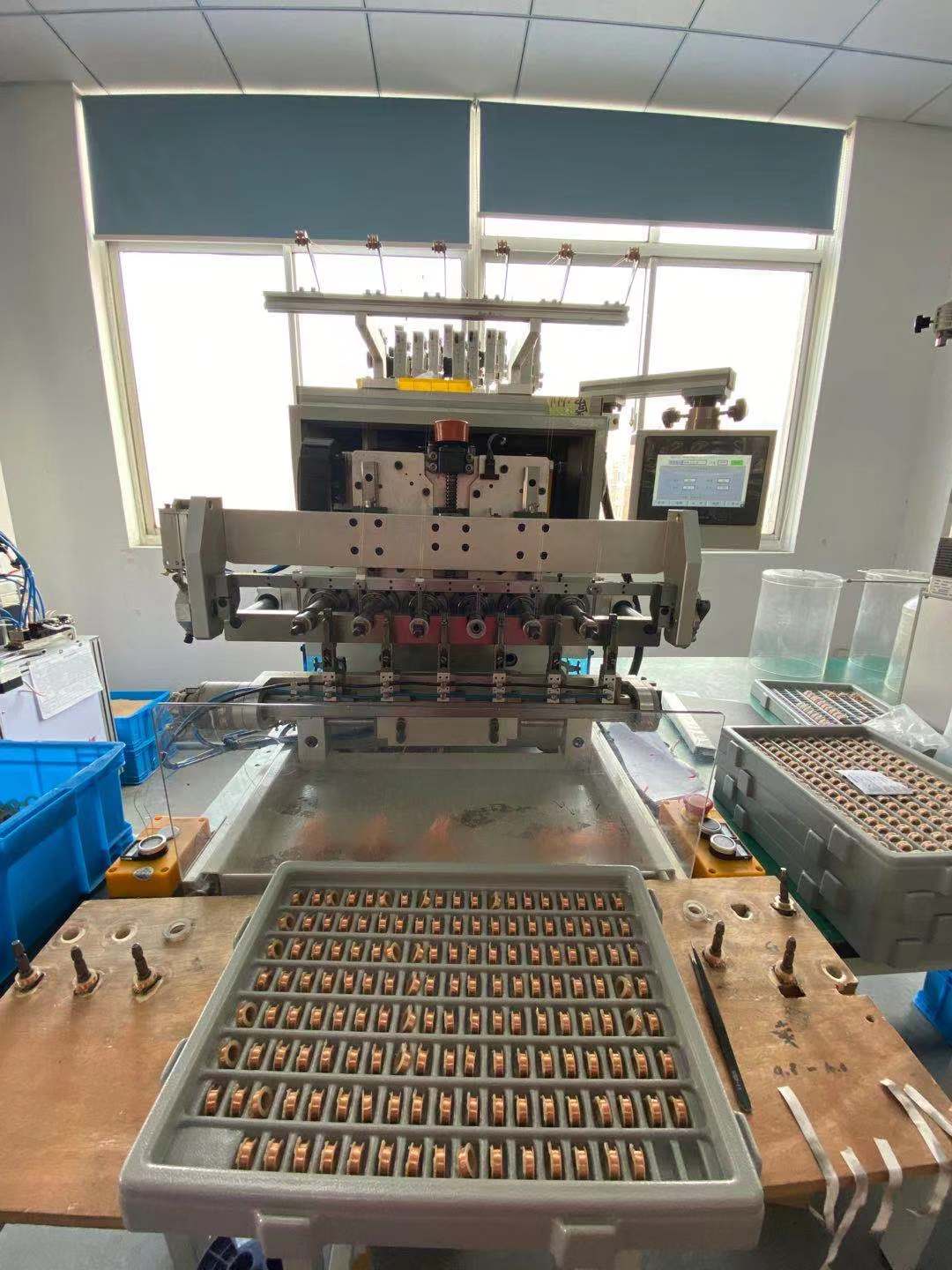

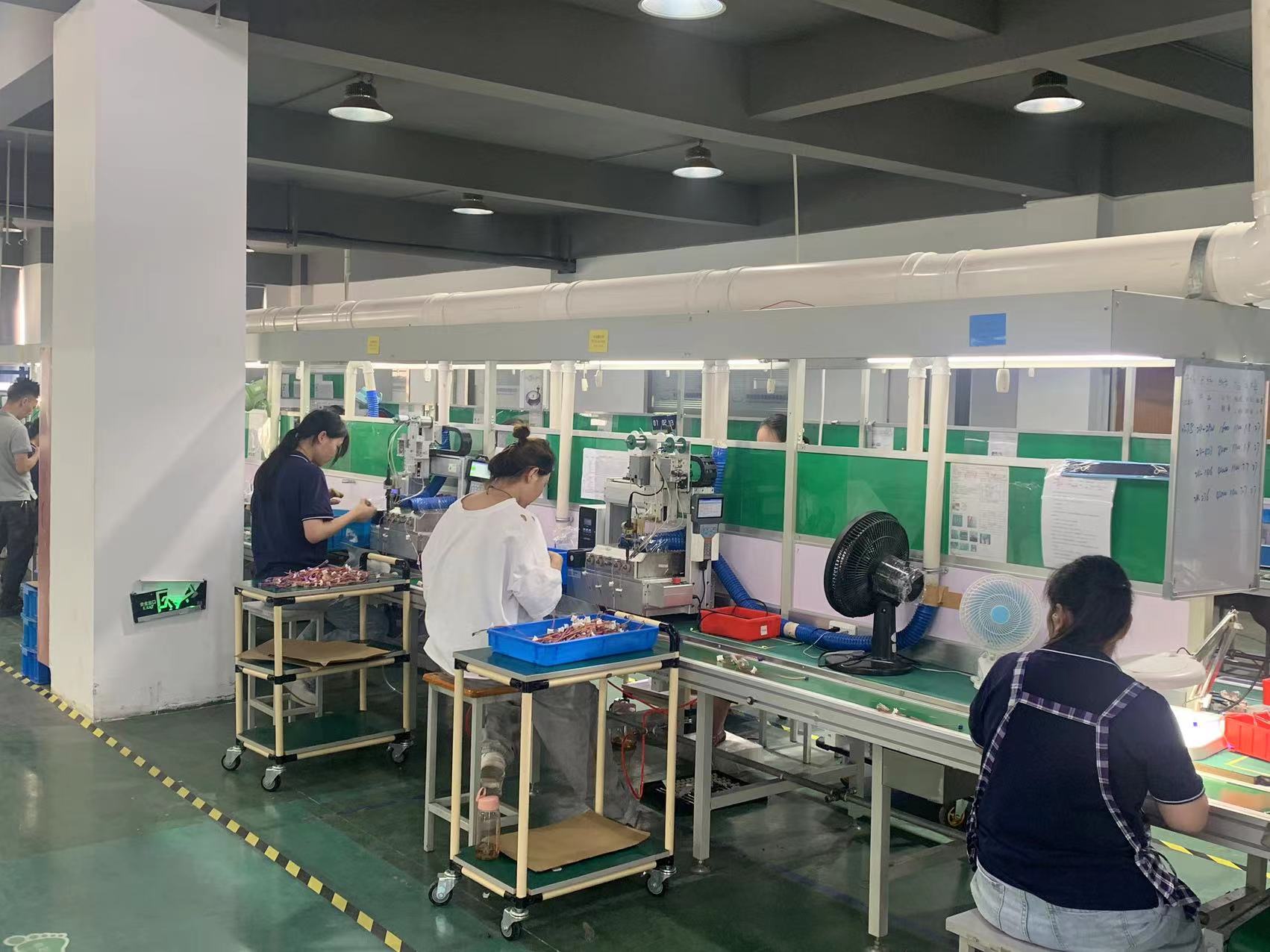

Production workshop:
Areas of application:
1,Automation equipment: 15mm externally driven linear stepper
motors can be used for tasks such as precise positioning, handling
and assembly on automated production lines, such as assembly lines
for electronic products, assembly lines for automotive parts, and
so on.
2,Medical equipment: Medical equipment requires highly accurate
motion control. 15mm external linear stepper motors can be used for
fine manipulation of medical equipment, such as minimally invasive
surgical instruments and drug delivery devices.
3,Robotics: Robots require precise motion control to accomplish a
variety of tasks. 15mm external linear stepper motors can be used
for precise control of robot joints and end-effectors, such as
collaborative robots and industrial robots.
4,Optical equipment: Optical equipment requires high-precision
motion control to achieve precise focus, positioning and scanning
tasks, 15mm external linear stepper motors can be used for motion
control of optical instruments, such as microscopes, scanners and
so on.
5,Linear drive: 15mm external linear stepper motor can be used as
the control element of linear drive to realize the precise control
of linear motion, such as automatic doors, electric curtains,
electric access control and so on.
