25BYJ412-7L geared stepper motor Chinese wholesale supply low noise
permanent magnet stepper motor
This motor has the characteristics of high precision and high
strength.
There is a built-in reduction box in the motor to achieve a 1:10
reduction ratio, thereby increasing torque, and finally, an output
popup with a stop structure is used to allow the slider to move
back and forth without rotating. Normal thrust is about 10 kg.
External wiring components are available in various types and
lengths of wiring or FPC FFC according to customer requirements. The shape of the mounting plate and the Angle of the outlet can be
adjusted according to the needs of the customer!
This motor has two holes on the cover (for mounting holes), the
hole spacing is 37mm, we also have 31mm version. The motor is equipped with a 1.25mm pitch connector (Molex
51021-0400)

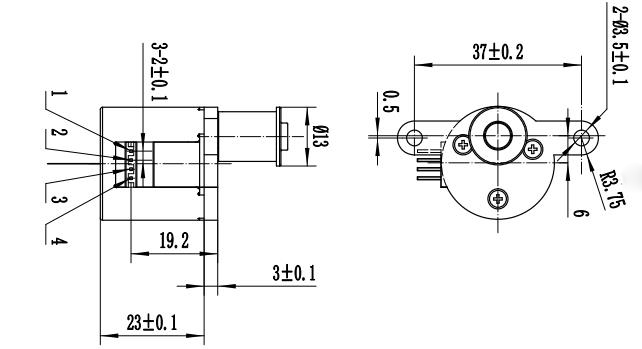

Mechanical Dimension:MM
Typical Applications
- Saliva Analyzer
- Blood Analyzer
- Welding Machine
- Intelligent Security Products
- Fiber Fusion Splicer
- Digital Electronics
Specifications
| Product Name | 25mm geared stepper motor |
| Model No | 25BYJ412-7L |
| Resistance | 5Ω±7%/Phase |
| Starting frequence | 750 PPS 2.6V DC) |
| Running Frequence | 800 PPS 3.0V DC) |
| Drive method | 2 phase |
| Storage temperature | -20~+50 ℃ |
| OEM & ODM SERVICE | AVAILABLE |
Application Highlights
Refrigeration Industry Air Conditioner, Fan Winding possibilities -
Bipolar
Electric Generator Valve Control Maintenance free - motor is brush
Other Industries & Applications Robotics Cost effective - compact design, lower integration cost
Monitoring Industry(CCTV) Camera Excellent open loop control - No encoders necessary
Sanitary Ware Automatic Toilet Bowl Digitally controlled - Easy to
use with a micro processor
Type of Wire Connect
Motor input method with Pin type,FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Type of Fixture Cover
The regular models are shown in the figure, and the special sizes
can be customized.
Product Detail Presentation
FAQ:
1. Are you a manufacturer or a trader?
We are a manufacturer. We produce motors ourselves.
2. Where is your factory? Can we visit your factory?
Our factory is located in Changzhou city. Feel free to visit us if
you want.
3. Do you provide customized samples/ free samples?
We are able to do customization on samples, and it cost extra
customization cost.
No, we don’t send free samples.
4. What’s the lead time on samples?
For samples in stock, lead time is within 3 days.
For samples not in stock, lead time is about 15 days.
For customized samples, lead time is about 25 to 30 days.
5. What customization service do you provide?
We have a developing team for over 20 years experience.
We provide customization service on all sorts of motor’s
components.
From motor’s slider, lead screw, gearboxes design.
To cable length, connector type, and FPC design.
6. Can we sign a NDA contract if we want to develop a new product?
Yes, we can sign NDA contract and protect your confidentiality.
Feel free to contact us if you have a new project to develop.
