    24mm diameter permanent magnet stepper motor with gearbox, single pole stepper motor, gearbox gear ratio selectable

    Ask Lasest Price
    Brand Name : VIV-TECH
    Model Number : 24BYJ48
    Certification : RoHS
    Price : $0.68-3.0/unit
    Payment Terms : MoneyGram, T/T, Western Union, T/T
    Supply Ability : 1000000units/year
    Delivery Time : 15-30 work days
    • Product Details
    • Company Profile

    24mm diameter permanent magnet stepper motor with gearbox, single pole stepper motor, gearbox gear ratio selectable

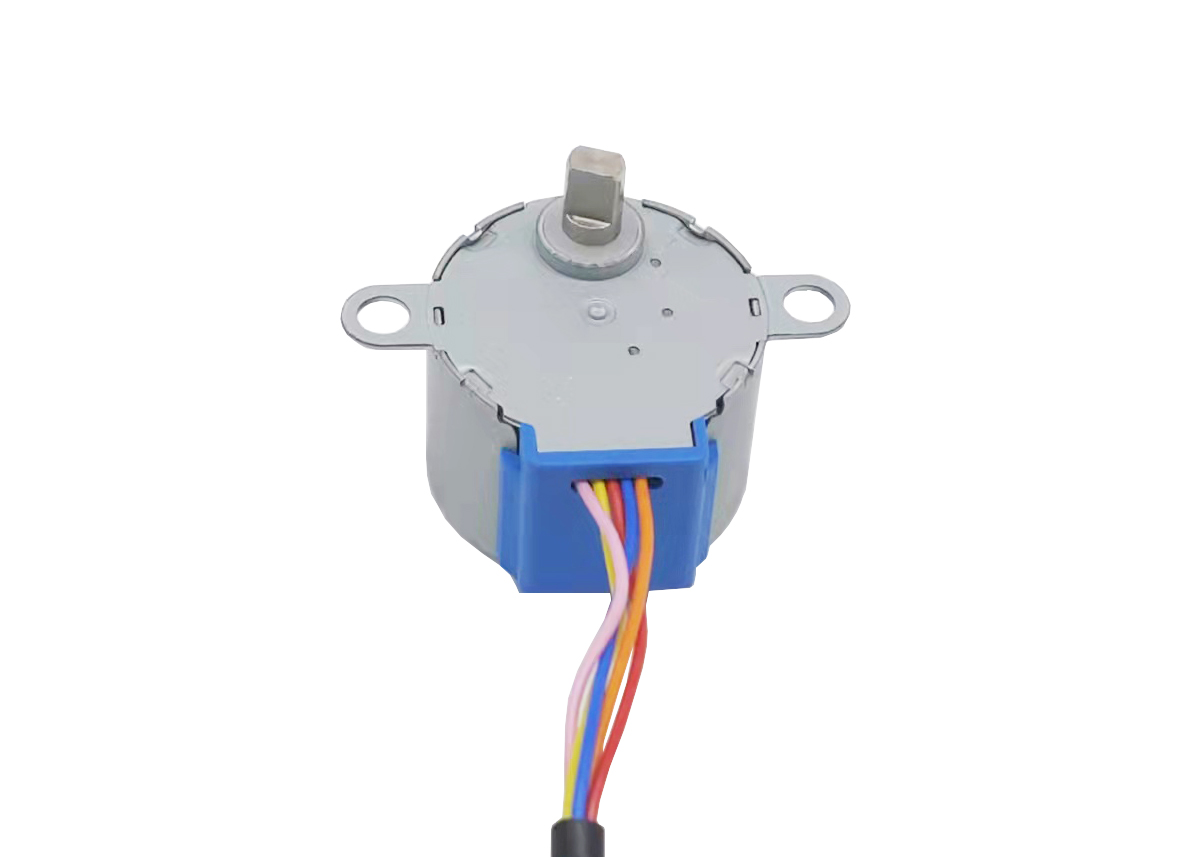

    24BYJ48 24mm diameter permanent magnet stepper motor with gearbox

    Single-pole stepper motor 24mm diameter permanent magnet stepper motor with gearbox


    This motor is mainly used for sanitary ware, thermostatic valve, hot water faucet, water temperature, flow automatic adjustment.

    At the same time, other areas requiring precise control can also be achieved. Because of the open loop control, low cost position control is realized.

    Applied to gas valves, water purifier valves, instruments and other automation control field precision control.

    At the same time, the external wiring part can use various types and lengths of connection cables, or FPC FFC, according to customer requirements.

    Output components can be used in a variety of ways, such as gears, belts, V-grooves and turbo screws.

    The shape of the mounting plate and the Angle of the socket can be adjusted according to the needs of the customer!

    If you can write to me, our products can be customized.

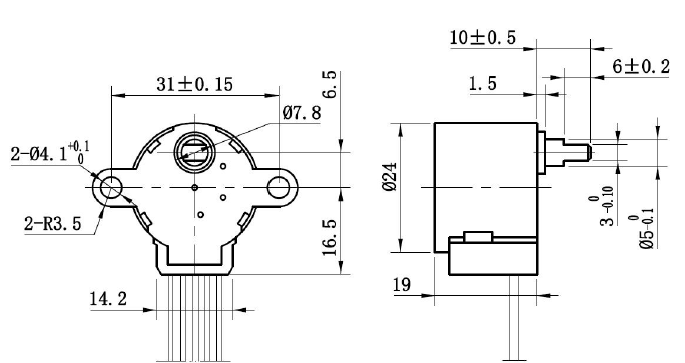

    Mechanical Dimension:MM

    Typical Applications

    • Smart Toilet
    • Smart kitchen
    • Air Conditioning
    • Refrigerator
    • Vending Machine
    • Entertainment Equipment

    Specifications


    Motor Diameter

    24 mm

    Rated Voltage

    12 V DC

    Resistance (25℃) Ω phase ±8%

    70ohm

    Step Angle

    11.25°/32

    Reduction Ratio

    32:1(16:1, 25:1, 48.8:1, 64:1, 85:1)

    Pull-in Torque

    ≥58.8mN.m

    Custom Torque

    ≥29mN.m

    No-load pull-in frequency

    ≥500HZ

    No-load pull frequency

    ≥800HZ

    Insulation Resistance DC.500v

    ≥10

    Insulation Dielectric strength

    No breakdown or flying fox

    Temperature Rise 400HZ 3 min

    ≤60K

    Noise

    ≤45dB(A)


    Competitive Advantage

    • High quality and the best price.
    • Fast deliver,storage company and rich inventory
    • Near Shanghai port, the traffic is very convenient.

    Product Detail Presentation


    Type of Fixture Cover


    The regular models are shown in the figure, and the special sizes can be customized.

    Type of Wire Connect

    Motor input method with Pin type, FPC, PCB, Lead wire etc.

    These can be customized according to customer needs.
