External drive linear stepper motor with 18 degree step angle of
15mm pm stepper motor

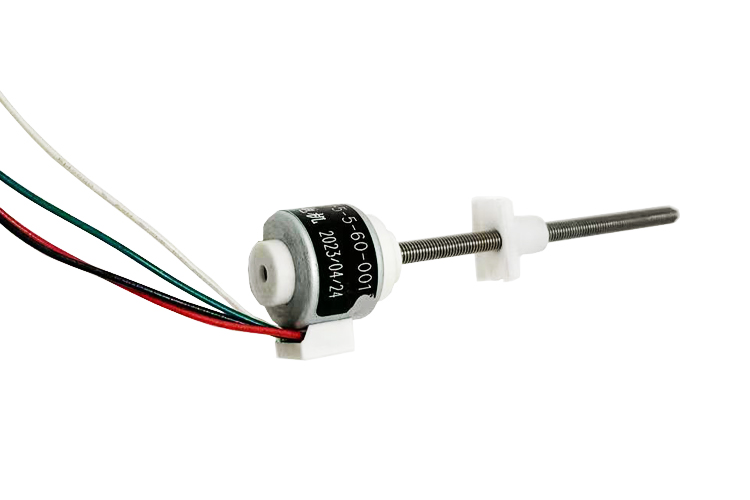

This is a 15mm permanent magnet linear stepper motor with external
drive.
The outer diameter of the motor is 15mm, the step angle is 18 °,
the diameter of the screw rod is 3.0mm, and the maximum thrust is
10N. It is recommended that the load be less than or equal to 8N
Step length=(step angle/360) * lead (mm)
The available leads are 0.4mm, 0.5mm, and 1mm
Note that when selecting the appropriate lead, velocity and
acceleration should also be considered. The speed of a linear
stepper motor is inversely proportional to the thrust, that is,
increasing the operating speed of the motor will correspondingly
reduce the thrust of the motor.
At the same time, it is also necessary to consider: work cycle,
system life, environmental factors, repeated positioning accuracy,
noise and vibration requirements, acceptable backlash,
acceleration/deceleration requirements, driving conditions,
horizontal or vertical installation.
Mechanical Dimension:MM

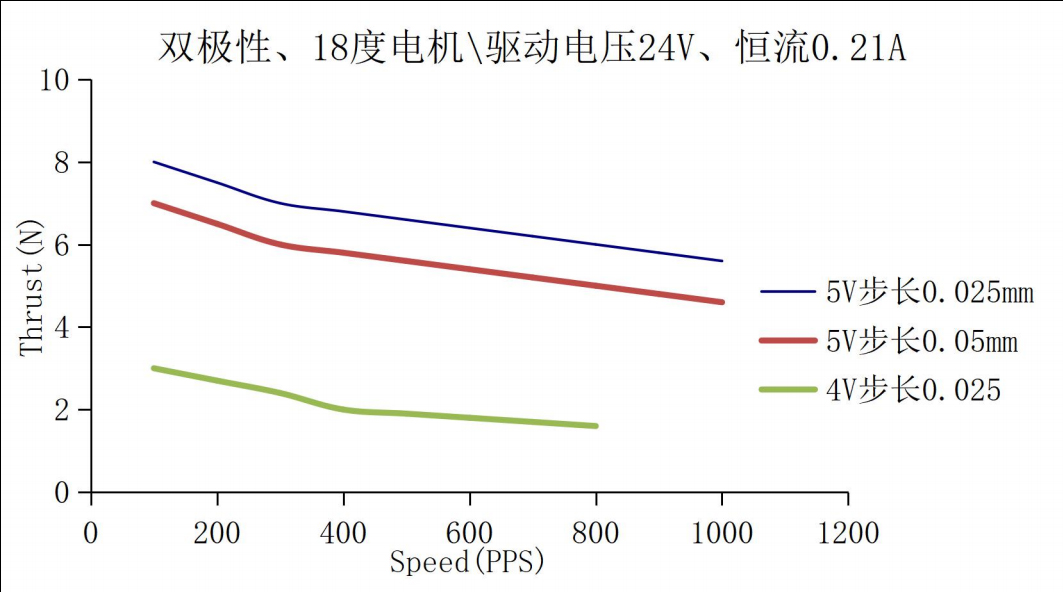

STEP SPEED AND THRUST CURVE:
Technical Features
This product is a patented product of the company. It converts the
rotation of the motor into a linear motion through the relative
movement of the internal rotor and the screw. It is mainly used in
valve control, automatic buttons, medical equipment, textile
machines, robots and other related fields.
At the same time, the external wiring part can use four terminal
posts (light pins) or connecting wires, or FPC FFC PCB, etc.
according to customer requirements.
The output part is linear.
Typical Applications
Specifications
Motor diameter | 15mm |
Rated voltage | 4V,5V,12V |
No. of phases | 2 phases |
Phase Current | 200mA,160mA,70mA |
Phase Inductance | 20Ω,33Ω,180Ω |
Step angle | 18° |
| Stear Travel | 0.02mm,0.025mm,0.05mm |
Stroke | mm |
