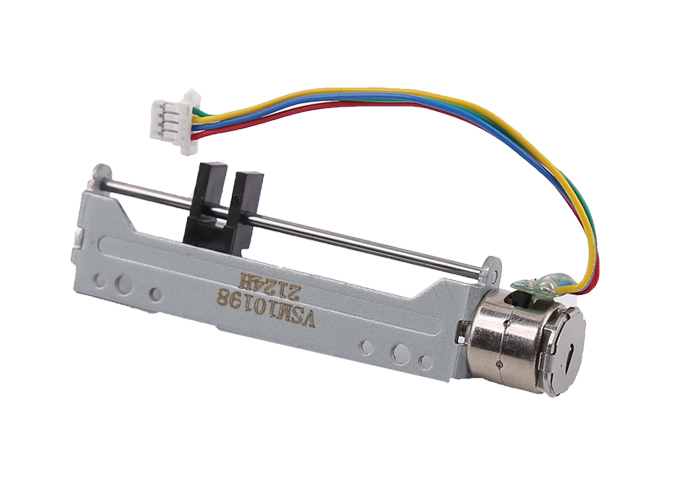

10mm diameter 3.3V sliding block motor with support stroke 40mm
lead screw linear stepper motor
This product is a linear stepper motor with a diameter of 10mm,
equipped with a screw and a slider.
The slider can move linearly. The action of the motor is completely
controlled by the driver.
This product can be used in conjunction with precision instruments
or electronic products.
Our products can be customized according to customer needs. If you
are interested, you can write to me.
Mechanical Dimension:MM
Technical Features
This motor is driven by the relative movement of the internal rotor
and screw. Mainly used in valve control, automatic buttons, medical
equipment, textile machinery, robots and other related fields.
At the same time, the external wiring part can use four wiring
terminals (light pins) or connecting wires, or FPC FFC PCBs, etc.
Customized according to customer requirements.
The output part is linear.
Typical Applications
Specifications
| Model No. | VSM10198 |
| Motor diameter | 10 mm |
| Rated voltage | 3.3V DC |
| No. of phases | 2phases |
| Step angle | 18 degrees |
| Max starting frequency | 1000 PPS |
| Thrust | Over 130g |
| Stroke | About 40mm |
Competitive Advantage
High quality and the best price.
Fast deliver,storage company and rich inventory
Near Shanghai port, the traffic is very convenient.
Product Detail Presentation
Packaging and Shipping information:
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
