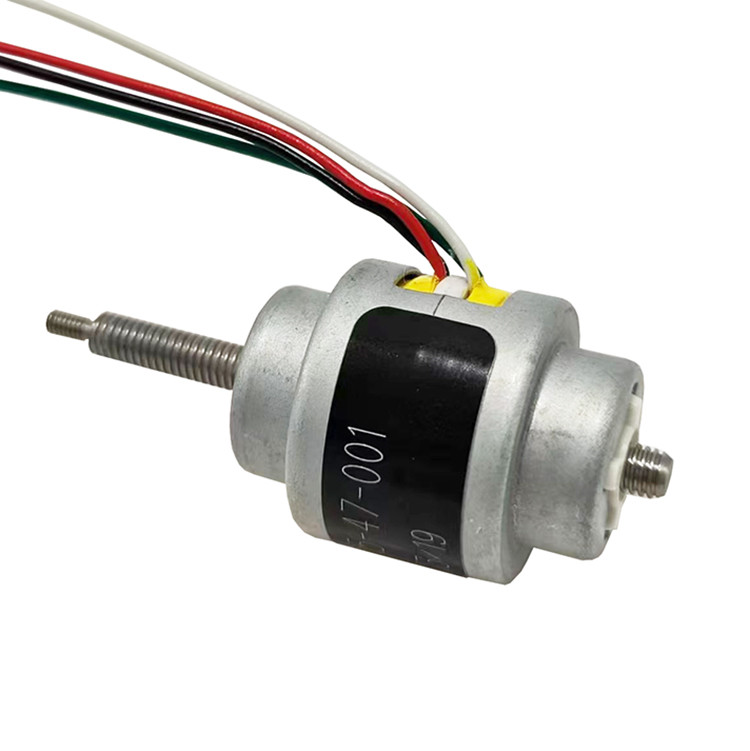

VSM20B-048S non-captive linear stepper motor with run through lead screw shaft

VSM20B-48S is non captive linear stepper motor with 20mm diameter.

We have three different shaft designs: including Captive / Non-captive / External drive

Captive motor: shaft is fixed, it can not rotate, shaft can only do linear movement.

Non-captive motor: shaft can do both rotational and linear movement. In order to work properly, user have to fix the shaft. User have to use anti-spinning mechanism to stop the motor from spinning, otherwise the motor will rotate in vain.

External drive: The shaft is locked with motor’s rotor, the shaft can only rotate, can not do linear movement. It comes with a plastic nut. Users can assembly their component on plastic nut.

Users can pick suitable shaft design based on different design requirement.

Other parameters, such as step angle, rated voltage, coil resistance and shaft length are all customizable.

Motor's shaft design:

Parameter sheet:

Design Layout (Unit:mm)

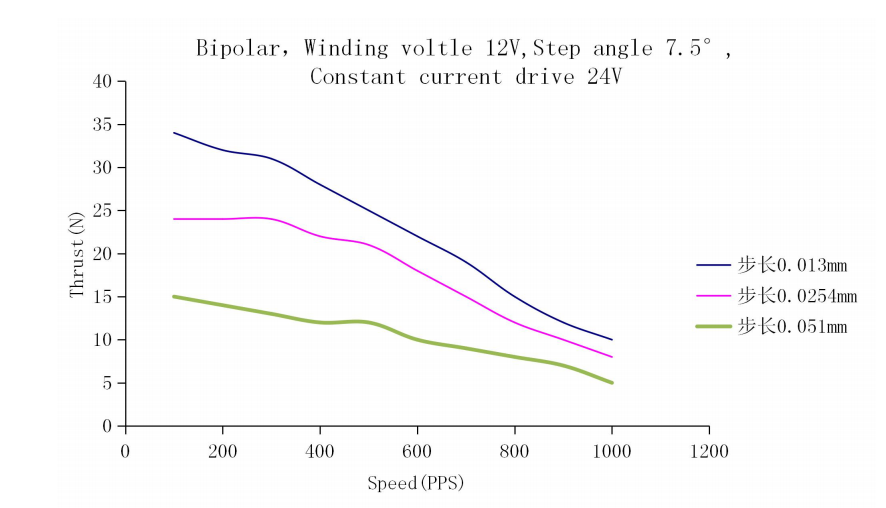

Chart of Thrust vs speed(PPS):

Competitive Advantage

• High quality and the best price.

• Fast deliver,storage company and rich inventory

• Near Shanghai port, the traffic is very convenient.

Product Detail Presentation
