SM1516-13GR cylinder gearbox 15mm diameter 5V DC 18° step angle PM
stepper motor
Description:
This is a 15mm permanent magnet stepper motor attached with gearbox
on top.
Gear box is 13GR cylinder gearbox (15.5 mm diameter)
We have different gear ratio for choosing, from 10:1 to 350:1.
Customer can choose suitable gear ratio based on their requirement
on speed/torque.
There is a gear on gearbox’s shaft, and we can remove it if
customers do not need it.
In general, output shaft is D shaft.
The connector is Molex 51021-0400 (1.25mm pitch 4 pins regular
connector), and we can replace it with other connector type if
customers want to.
Motor Parameters:
| Model No. | SM1516-13GR |
| Motor type | Bipolar stepper motor |
| Step angle | 18°/gear ratio |
| Rated voltage | 5V DC |
| Coil resistance | 10Ω |
| Phase No. | 2 phases |
| Connector type | Molex 51021-0400 |
| Gearbox type | 13GR (15.5mm diameter) |
Gearbox Parameters:
| Gear ratio | 10:1 | 16:1 | 20:1 | 30:1 | 35:1 | 39:1 | 50:1 | 66:1 |
| Precise ratio | 9.952 | 15.955 | 20.622 | 29.806 | 35.337 | 38.889 | 49.778 | 66.311 |
| Tooth number | 14 | 20 | 18 | 14 | 18 | 18 | 15 | 18 |
| Gear levels | 2 | 4 | 4 | 3 | 4 | 4 | 4 | 4 |
| Efficiency | 80% | 64% | 64% | 71% | 64% | 64% | 64% | 64% |
|
| Gear ratio | 87:1 | 102:1 | 153:1 | 169:1 | 210:1 | 243:1 | 297:1 | 350:1 |
| Precise ratio | 87.303 | 101.821 | 153.125 | 169.383 | 209.402 | 243.158 | 297.071 | 347.972 |
| Tooth number | 15 | 14 | 16 | 15 | 19 | 15 | 15 | 14 |
| Gear levels | 4 | 4 | 5 | 5 | 5 | 5 | 5 | 5 |
| Efficiency | 64% | 64% | 58% | 58% | 58% | 58% | 58% | 58% |

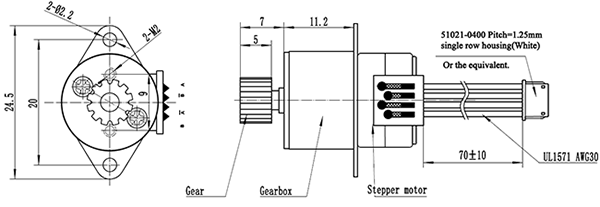

Design drawing:
Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical
equipment, 3D printer, industrial precise control, automation
equipment, etc.
Stepper motors can be used in any mechanisms requirement precise
conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop
encoders / without feed back system, also they do not have
electrical brushed. Thus there is no electromagnetic interference
and electrical sparks issues. In some cases, they can replace DC
brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature
establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Stepper motors are widely used among all industries.
Packaging and Shipping information:
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
