15mm Geared stepper motor for 3D printer 5V Pm Stepping Gear motor
SM1516 Low Speed High Torque step motor 5v15mm 12 volt Geared
Stepper Motor
Geared Stepper Motor 15mm DC Stepping reduction motor GM12-15BY
Stepper gear motor Small volume for Fiber Fusion Splicer
The gear motor overall volume is small, the reduction ratio can be
selected in a wide range,
The basic step angle of the motor is 18 degrees, that is 20 steps
per revolution, plus the deceleration effect of the gear box, the
final motor angle resolution can reach 0.018~0.9 degrees, which can
be used in various places requiring precise control.
The selectable speed ratios are 1:0 1:16 1:20 1:30 1:35 1:39 1:50 1:62 1:66 1:87 1:102 1:153 1:169
1:210 1:243 1:297 1:350, different speed ratios will produce different final Torque and
speed, customers can choose according to different torque and speed
requirements. Special speed ratios can be customized, please
contact us to discuss if necessary.
When selecting a motor, it is necessary to comprehensively consider
the speed and torque while meeting the requirements.
This series of gear boxes adopts the most advanced related parts
processing equipment, high precision, high efficiency, low noise,
and adopts reasonable and reliable technology, so that the products
have better reliability. The power input part and standard stepper
motor can adopt the form of probe structure, FPC, FFC, PCB cable
and so on. The output of the motor part can adopt various output
structures such as round shaft, D shaft, screw, gear, pulley and so
on!
SM15mmgearbox stepper main parameters:
| PRODUCT NAME | 15 mm worm geared stepper motor |
| MODEL | SM1516 |
| VOLTAGE | 5V |
| RESISTENCE | 10Ω±7% (optional 20 15 10 ohm) |
| OPERATING TEMPERATURE RANGE | -0~+55 ℃ |
| GEAR RATIO | 10~350 |
| OEM & ODM SERVICE | AVAILABLE |
| EFFICIENCY | 10~20% |
| SPEED RANGE | Motor(0~3000RPM) Out shaft(0~300rpm) |
SM15 gear stepper motor out drawing:
SM15 gear stepper torque curve:
Since there are many speed options, the output torque can be the
torque * speed ratio * efficiency of the motor, and the specific
situation will generally be determined after testing the actual
sample. The following is the torque curve of the SM15 stepper motor
for reference.
Temperature rise

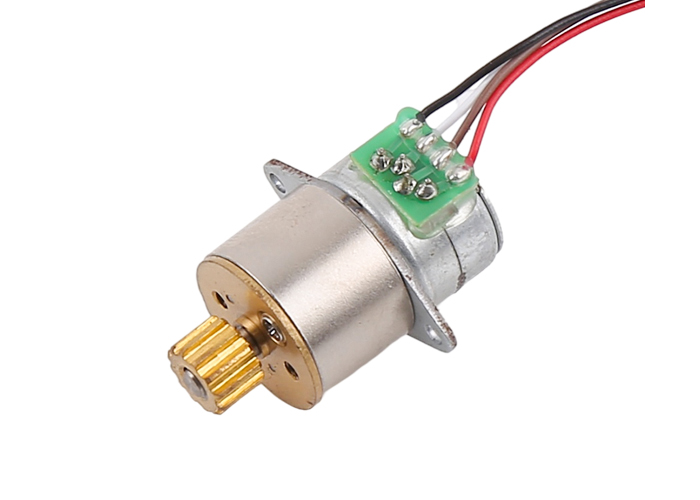

SM15 gear stepper motor display:
