China 35mm 35BYJ412P 3.75 degrees step angle stepper motor with
42.5:1 gearbox
Description:
35BYJ412P is 35mm diameter permanent magnet motor with gearbox
inside.
Step angle of single motor is 3.75°/step.
With a 42.5 gear ratio gearbox on top, so step angle is 3.75°/42.5
This is motor is suitable for 12V DC driving.
Regular PM unipolar stepper motor driver is able to drive this
motor.
Please feel free to contact us if you are interested.
Motor Parameters:
| Motor type | PM stepper motor + gearbox |
| Model No. | 35BYJ412P |
| Driving mode | Unipolar driving (5 cables) |
| Phase number | 4 |
| Gear ratio | 42.5:1 |
| Step angle | 3.75°/42.5 |
| Coil resistance | 25Ω |
| Rated voltage | 12V DC |
| Weight | About 55 g |

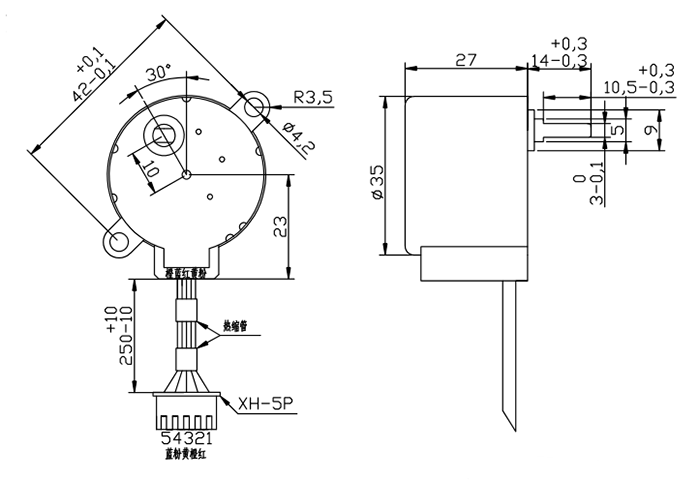

Design drawing:
Product display:
Application of stepper motors:
Stepper motors are used for precise control, widely used on medical
equipment, 3D printer, industrial precise control, automation
equipment, etc.
Stepper motors can be used in any mechanisms requirement precise
conrtol and rotational/linear movement.
Advantage of stepper motors:
Stepper motor can reach precise control even without close-loop
encoders / without feed back system, also they do not have
electrical brushed. Thus there is no electromagnetic interference
and electrical sparks issues. In some cases, they can replace DC
brushed motors/ brushless motors.
Stepper motors are easy to control with drivers, and this feature
establish its important position in the field of precise control.
1. Precise control achievable, programmable
2. Without electromagnetic interference & electrical sparks
3. Small size
4. Reasonable price
5. Low noise
6. Long service life
Stepper motors are widely used among all industries.
Packaging and Shipping information:
Samples are packed with foam sponge inside paper box.
For mass production, products are packed in paper carton.
For sea shipping (Mass production), cartons are packed on pallet.
Shipping time:
By express(DHL/ UPS/ Fedex/ TNT): 5~12 days
By 4PX express: 10~20 days
Sea shipping: 40~60 days (depends on different countries)
FAQ:
Question 1: Are you a manufacturer or a trader?
We are a manufacturer. We produce motors ourselves.
Question 2: Where is your factory? Can we visit your factory?
Our factory is located in Changzhou city. Feel free to visit us if
you want.
Question 3: Do you provide customized samples/ free samples?
We are able to do customization on samples, and it cost extra
customization cost.
No, we don’t send free samples.
Question 4: What’s the lead time on samples?
For samples in stock, lead time is within 3 days.
For samples not in stock, lead time is about 15 days.
For customized samples, lead time is about 25 to 30 days.
Question 5: What customization service do you provide?
We have a developing team for over 20 years experience.
We provide customization service on all sorts of motor’s
components.
From motor’s slider, lead screw, gearboxes design.
To cable length, connector type, and FPC design.
Question 6: Can we sign a NDA contract if we want to develop a new product?
Yes, we can sign NDA contract and protect your confidentiality.
Feel free to contact us if you have a new project to develop.
