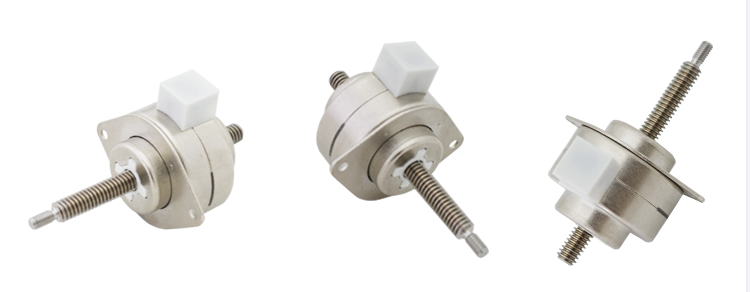

VSM36L-048S-0254-113.2 is a through shaft type stepping motor with guide screw. When the rotor operates clockwise or counterclockwise, the top of the screw rod needs to be fixed, and the guide screw will move forward or backward.

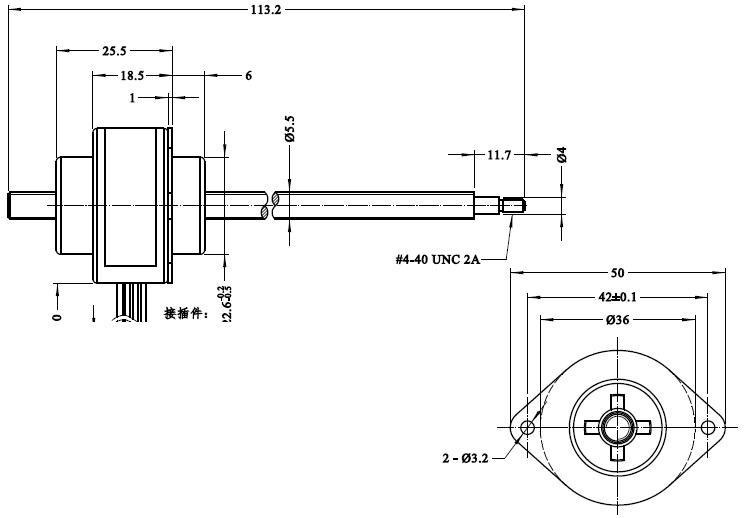

The stepping angle of the stepping motor is 7.5 degrees, and the lead spacing is 1.22mm. When the stepper motor rotates for one step, the lead moves 0.0254mm, and the length of the screw rod of the motor can be customized according to customer needs
The product converts the rotation of the motor into linear motion through the relative motion of the inner rotor and the screw. It is mainly used in valve control, automatic buttons, medical equipment, textile machinery, robots and other related fields.
At the same time, the external wiring can be connected or output from the outlet box according to customer requirements
Our team has more than 10 years of experience in stepping motor design, development and production, so we can achieve product development and auxiliary design according to the special needs of customers!
