N20 DC Brushed Motor With 1024 Gearbox, Output Shaft Can Be Customised

Ask Lasest Price
Brand Name :	VIC-TECH
Model Number :	N20-1024GB
Certification :	RoHS
Price :	$7~$15/Unit
Payment Terms :	MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability :	100000\ Units/year
Delivery Time :	10~30 days after receiving sample payment

Add to Cart

Product Details
Company Profile

N20 DC Brushed Motor With 1024 Gearbox, Output Shaft Can Be Customised

N20 DC Brushed Motor With 1024 Gearbox, Output Shaft Can Be Customised

Description

This is an N20 DC motor with a 1024 gearbox.
The N20 DC motor is also a brushed DC motor with a no-load speed of approximately 15,000 RPM for a single motor.
When the motor is connected to a gearbox, it runs slower and with more torque.
The output shaft of this motor is a D-shaft and the customer can also choose a threaded shaft, if required.
Gearboxes are available in the following gear ratios: 10:1,30:1,50:1,100:1,150:1,300:1,323:1,483:1,500:1,668:1,945:1,1000:1, the customer can choose the gear ratio according to his needs.
When the gear ratio is less than 600:1, the gearbox height can be adjusted to 6 mm (short version).
The output can be a D-shaft with a diameter of 3mm*D2.5mm, or an M3 leadscrew, or other customised shaft type.

Parameters

Model No.	N20-1024GB
Driving voltage	5V DC
Resistance	25Ω
Inductance	4 mH
No-load speed	9000RPM
Reduction ratio	298:1
No-load output speed	25RPM
No-load current	＜60mA
Output torque	800g.cm
Run direction	CW/CCW

Design Drawing

About DC brushed motors

DC brushed motors are the most commonly used motors on the market.
DC motors have brushes inside, l positive and negative poles (+ and -).
The speed of the DC motor can be controlled with different gear ratios or with PWM (pulse width modulation)
By means of a torque boost from the gearbox, the DC motor can achieve higher torques than the original torque of the motor.
It can also be installed in the following positions according to customer requirements:
1024GB Series + N20 DC motor

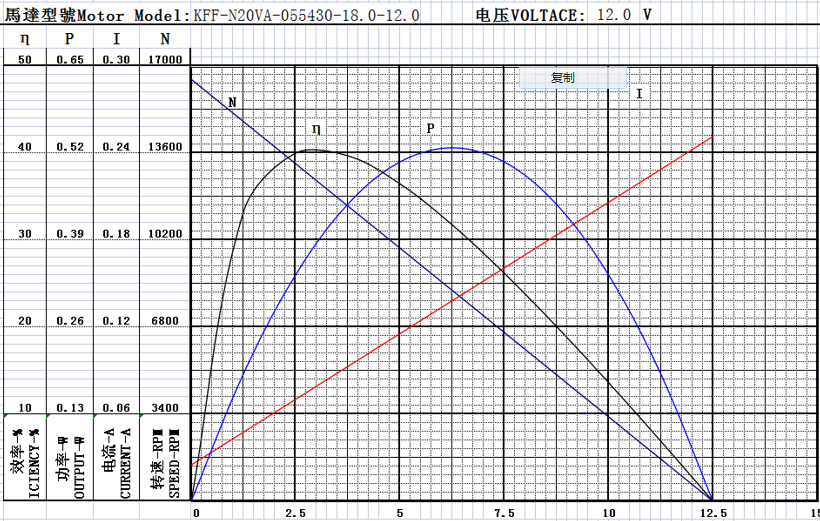

N20 motor performance curve (12V 16000 no-load speed version)

N20 works on the following principles

Gearbox Parameters

Gear ratio	10:1	16:1	20:1	30:1	35:1	39:1	50:1	66:1
Precise ratio	9.952	15.955	20.622	29.806	35.337	38.889	49.778	66.311
Tooth mumber	14	20	18	14	18	18	15	18
Gear levels	2	4	4	3	4	4	4	4
Efficiency	80%	64%	64%	71%	64%	64%	64%	64%
Gear ratio	87:1	102:1	153:1	169:1	210:1	243:1	297:1	350:1
Precise ratio	87.303	101.821	153.125	169.383	209.402	243.158	297.071	347.972
Tooth mumber	15	14	16	15	19	15	15	14
Gear levels	4	4	5	5	5	5	5	5
Efficiency	64%	64%	58%	58%	58%	58%	58%	58%

Application

Medical devices, robotics field, smart home, automotive drive, aircraft, consumer electronics, industrial automation, optical instruments and equipment field, etc.

Advantages of DC brushed motors

1. cheaper (compared to stepper motors)
2. Smaller size
3. Direct connection, easy to use
4. Wide range of use
5. Fast speed of rotation
6. Higher efficiency (compared with stepper motors)

Customization service

Out of the shaft length (the tail can be out of the shaft matching encoder),
The voltage,
The rotational speed,
Outlet mode,
And connectors and so on

Lead time and packaging information

Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity

Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets

Shipping Method

On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
