5000-30000RPM Worm Gearbox N20 DC Motor With Custom Encoder

Ask Lasest Price
Brand Name :	VIC-TECH
Model Number :	N20-1812 Worm Gear motor
Certification :	RoHS
Price :	$3~$8.5/unit
Payment Terms :	MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability :	100000\ Units/year
Delivery Time :	10~30 days after receiving sample payment

Add to Cart

Product Details
Company Profile

5000-30000RPM Worm Gearbox N20 DC Motor With Custom Encoder

Description

This is a DC worm gear motor with N20 encoder.
It is also available without encoder.

The outer diameter of the N20 motor is 12mm*10mm, the motor length is 15mm, and the length of the gearbox is 18mm (the gearbox can also hold an N10 motor or an N30 motor).

The motor consists of a metal brushed DC motor with a precision metal reducer. The worm gear has small size and large gear ratio.

The DC motor technology is relatively mature, inexpensive and simple to drive and control. With a gear box, the torque is greatly increased, the speed is reduced, and it is easy to control!
The following worm gearbox gear ratios are available.
1:21 1:42 1:118 1:236 1:302 1:399 1:515 1:603 1:798 1:1016

Parameters

Model No	N20-1812 Worm Gear motor
Size	12mm*33mm
Gear ratio:	1:21~1:1016
No-load seed(single motor)	5000~8000rpm
Encoder type	magnet hall sensor
Resolution	3ppr 5ppr 7ppr 12ppr

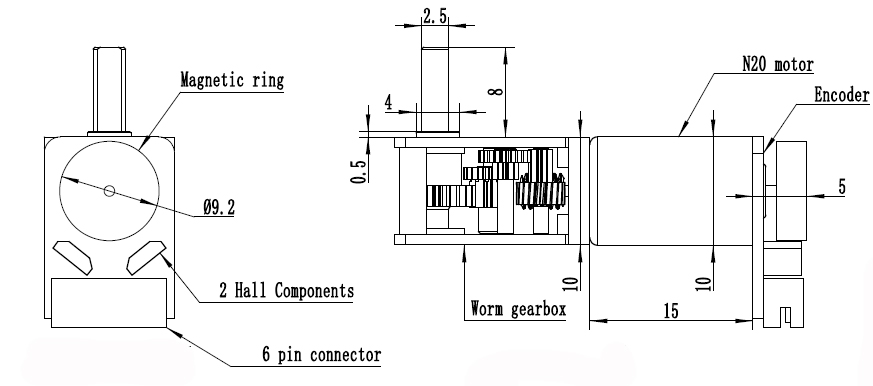

Design Drawing

N20 motor torque and speed curve

When changing the drive voltage, or changing the motor winding parameters, the motor will have different characteristics, this curve is for reference.

N20 DC motor can also be matched with GB12 gearbox, 1024GB gearbox, As shown in the figure:
1.N20 DC motor + GB12 gearbox

2.N20 DC motor + 1024GB gearbox

About DC motor structure

The above diagram shows the basic structure of a DC brushed motor.
This type of DC motor is composed of a stator, rotor, brushes and commutator. The mutual driving of the stator and rotor magnetic fields drive the motor to rotate. When they start and run, the brush part generates sparks and is not suitable for use in special applications.
The relative movement of brushes and commutator is easy to wear, and the life time of DC brushed motor with common structure is generally not very long, usually 200~2000 hours. For customers who have strict life time requirement for motor, it is recommended to choose stepper motor.

Advantages of DC brushed motor

1. Fast speed
2. small size
3. High efficiency (compared with stepper motor)
4. Universal use
5. Easy to connect and easy to use
6. Inexpensive

Application

Electric DC worm gear motors are mainly used in various applications such as windows, household appliances, model cars, model robots, model ships, industrial applications, DIY engines, miniature winches, remote control curtains, miniature door openers, barbecue grills, ovens, garbage disposals, coffee machines, printing presses, etc.
