10-817G 10mm Stepper Motor With 1024GB Horizontal Gearbox Shaft Type

Ask Lasest Price
Brand Name :	VIC-TECH
Model Number :	10-817G
Certification :	RoHS
Price :	$7~15/unit
Payment Terms :	MoneyGram, Western Union,Credit Card,T/T, L/C
Supply Ability :	100000\ Units/year
Delivery Time :	10~30 days after receiving sample payment

Add to Cart

Product Details
Company Profile

10-817G 10mm Stepper Motor With 1024GB Horizontal Gearbox Shaft Type

10-817G 10mm Stepper Motor With 1024GB Horizontal Gearbox Shaft Type Gear Ratio Adjustable

Description

This is a 1024GB horizontal gearbox attached with a 10mm micro stepper motor.
We have different gear ratio for option, from 10:1 to 1000:1.
With higher gear ratio, motor’s output torque will be higher, and output speed will be slower.
The choice of gear ratio depends on customers want more torque, or more speed.
Here is calculation:
Output torque=single motor’s torque*gear ratio* gearbox efficiency
Output speed= single motor’s speed/gear ratio

Output shaft can be customized into D shaft, lead screw shaft or other shaft types.

Parameters

Model No.	10-817G
Motor diameter	10mm
Drive voltage	5V DC
Coil resistance	40Ω±10%/phase
Number of phase	2 phases (bipolar)
Step angle	18°/ gear ratio

Gearbox parameters

Gear ratio	10:1	30:1	50:1	100:1	150:1	300:1	323:1	483:1	500:1	668:1	945:1	1000:1
Precise ratio	10.204	30.401	49.914	100.303	144.522	299.358	323.275	483.277	496.540	668.102	945.168	1000.766
Tooth number	12	13	15	12	14	18	12	12	12	12	12	12
Gear levels	2	4	4	4	6	6	6	6	6	6	6	6
Efficiency	80%	65%	65%	65%	53%	53%	53%	53%	53%	53%	53%	53%

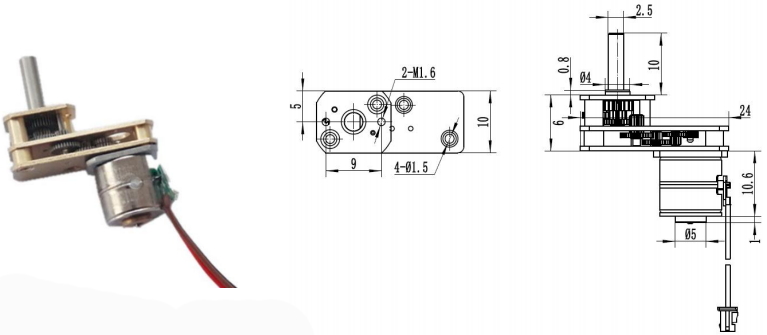

Design Drawing

Customization options

Output shaft can be customized into M3 lead screw, or other shape for special projects.

In general, motor is assembled on top of the gearbox, there is also another option, that motor be can be assembled at the bottom.

Application

Geared stepper motors, widely used in Smart home, personal care, home appliance equipment, smart medical equipment, smart robot, smart logistics, smart cars, communication equipment, smart wearable devices, consumer electronics, camera equipment, and other industries.

Lead Time and Packaging Information

Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)
Lead time for building a new mold: generally about 45 days
Lead time for mass production: based on order quantity
Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets

Shipping Method

On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)

FAQ

1.Are you a manufacturer?
Yes, we are a manufacture, and we produces mainly stepper motors.

2.Where is your factory location? Can we visit your factory?
Our factory is located in Changzhou, Jiangsu. Yes, you are very welcome to visit us.

3.Can you provide free samples?
No, we don’t provide free samples. Customers won’t treat free samples fairly.

4.Who pays for shipping cost? Can I use my shipping account?
Customers pay for shipping cost. We will quote you shipping cost.
If you think you have cheaper/more convenient shipping method, we can use you shipping account.

5.What’s you MOQ? Can I order one motor?
We don’t have MOQ, and you can order only one piece sample.
But we recommend you to order a little bit more, just in case the motor is damaged during your testing, and you can have a back-up.

6.We are developing a new project, do you provide customization service? Can we sign a NDA contract?
We have over 20 years of experience in stepper motor industry.
We have developed many projects, we can provide full set customization from design drawing to production.
We are confident we can give you few advice/suggestions for your stepper motor project.
If you are worrying about confidential issues, yes, we can sign a NDA contract.

7.Do you sell drivers? Do you produce them?
Yes, we do sell drivers. They are only suitable for temporary sample test, not suitable for mass production.
We do not produce drivers, we only produce stepper motors
