18 Degrees Step Angle M3 Lead Screw Linear Stepper Motor 15 Mm for Medical Devices

18 Degrees Step Angle M3 Lead Screw Linear Stepper Motor 15 Mm Applicable To Medical Devices, Etc

Description

SM15-80L is a stepping motor with a diameter of 15mm. The screw pitch is M3P0.5mm, (Move 0.25mm in one step. If it needs to be smaller, subdivision drive can be used), and the effective stroke of the screw is 80mm. The motor has a white POM slider. As it is a mold production, it can save costs. It can also customize the slider made of brass according to customer needs. However, the slider needs CNC processing, so the cost is relatively high. Considering the cost and the structure allows, it is recommended that the plastic slider be preferred for production

The greatest advantage of the brass slider is that it is supported by two linear bearings, which provide strong support for the slider and ensure that the slider can move smoothly even under high load.

Therefore, the brass slider has better stability and higher price is fully justified.

For the screw rod stroke, considering your installation space, we can also customize the bracket with short stroke to save installation space

Parameters

Product Name	15 mm diameter stepper motor with lead screw and slider
Model	VSM15-80L
Max. Starting Frequency	More Than 1100 PPS min.
Max. Response Frequency	More Than 1600 PPS min.
Voltage	12 V
Pull Out Torque	500 gf-cm min. (AT 129 PPS , 12V DC)
Insulation Class	CLASS E FOR COILS
Insulation Strength	100 V AC FOR ONE SECOND
Insulation Resistence	50 MΩ (DC 100 V)
Operating Temperature Range	-20 ~+50 ℃
Motor Surface Temperature	80 ℃
OEM & ODM SERVICE	AVAILABLE

Custom Type Reference Example

This linear stepping motor is widely used in medical devices, scanners, automotive instruments, security systems, optical fiber welding equipment and other fields.

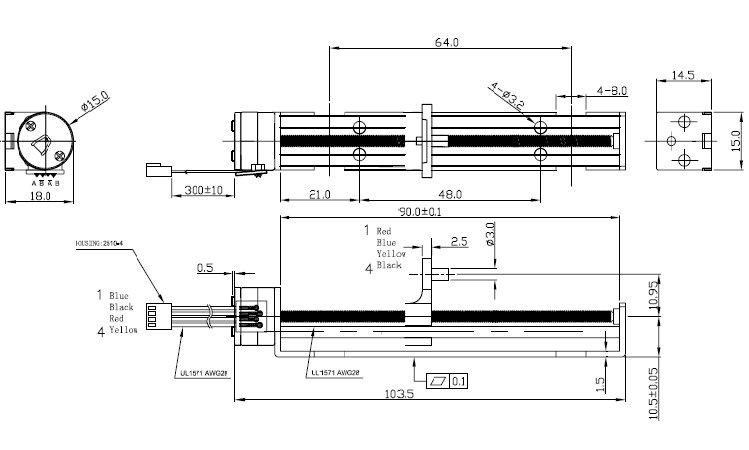

Design Drawing

Application scenarios

Customization service

Motor’s design can be adjusted based on customer’s requirement including:
Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor
Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.
Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.
PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.

Lead Time and Packaging Information

Lead time for samples:
Standard motors in stock: within 3 days
Standard motors not in stock: within 15 days
Customized products: About 25~30 days (based on complexity of customization)

Lead time for building a new mold: generally about 45 days

Lead time for mass production: based on order quantity

Packaging:
Samples are packed in foam sponge with a paper box, shipped by express
Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
If shipped by sea, product will be packed on pallets

Shipping Method

On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)

FAQ

1.Are you a manufacturer?
Yes, we are a manufacture, and we produces mainly stepper motors.

2.Where is your factory location? Can we visit your factory?
Our factory is located in Changzhou, Jiangsu. Yes, you are very welcome to visit us.

3.Can you provide free samples?
No, we don’t provide free samples. Customers won’t treat free samples fairly.

4.Who pays for shipping cost? Can I use my shipping account?
Customers pay for shipping cost. We will quote you shipping cost.
If you think you have cheaper/more convenient shipping method, we can use you shipping account.

5.What’s you MOQ? Can I order one motor?
We don’t have MOQ, and you can order only one piece sample.
But we recommend you to order a little bit more, just in case the motor is damaged during your testing, and you can have a back-up.

6.We are developing a new project, do you provide customization service? Can we sign a NDA contract?
We have over 20 years of experience in stepper motor industry.
We have developed many projects, we can provide full set customization from design drawing to production.
We are confident we can give you few advice/suggestions for your stepper motor project.
If you are worrying about confidential issues, yes, we can sign a NDA contract.

7.Do you sell drivers? Do you produce them?
Yes, we do sell drivers. They are only suitable for temporary sample test, not suitable for mass production.
We do not produce drivers, we only produce stepper motors
