    8mm 3.3VDC Mini Slider Linear Stepper Motor Of Camera Lens Motor

    Ask Lasest Price
    Brand Name : VIC-TECH
    Model Number : VSM0806
    Certification : RoHS
    Price : $3~$7/Unit
    Payment Terms : MoneyGram, Western Union,Credit Card,T/T, L/C
    Supply Ability : 100000 Units/year
    Delivery Time : 10~30 days after receiving sample payment
    • Product Details
    • Company Profile

    8mm 3.3VDC Mini Slider Linear Stepper Motor Of Camera Lens Motor

    8mm 3.3VDC Mini Slider Linear Stepper Motor Of Camera Lens Motor

    Description

    VSM0806 is a linear micro stepping motor. The screw rod is M2P0.4mm, and the screw pitch of the output shaft is 0.4mm. The screw is rotated into thrust through the screw rod and the screw rod.

    The basic step angle of the motor is 18 degrees, and the motor runs 20 steps every week, so the displacement resolution can reach 0.02mm, achieving the goal of precision control.

    The actuator is driven by subdivision.

    Because of its small size, high precision, easy control and other excellent characteristics, this micro stepping motor is widely used in cameras, optical instruments, lenses, precision medical devices, automatic door locks and other fields.

    The motor input part of FPC can be changed to the form of connecting wire pin, PCB, etc. according to customer requirements.

    The mounting bracket can be replaced according to customer requirements.

    Parameters

    PRODUCT NAME8MM MICROLINEAR STEPPER MOTOR
    MODELVSM0806
    MAX. STARTING FREQUENCY800 PPS min. (AT 3.3 V DC)
    MAX. SLEWING FREQUENCY2000 PPS min. (AT 3.3 V DC)
    PULL IN TORQUE1.5 gf-cm min. (AT 500 PPS , 3.3V DC)
    PULL OUT TORQUE2.0 gf-cm min. (AT 500 PPS , 3.3V DC)
    INSULATION CLASSCLASS E FOR COILS
    INSULATION STRENGTH300 V AC FOR ONE SECOND
    INSULATION RESISTENCE50 MΩ (DC 100 V)
    OPERATING TEMPERATURE RANGE-10 ~+60
    OEM & ODM SERVICEAVAILABLE
    PRODUCT NAME8MM MICROLINEAR STEPPER MOTOR

    Custom Type Reference Example

    sdasd2
    qweqw3

    Design Drawing

    图片 5

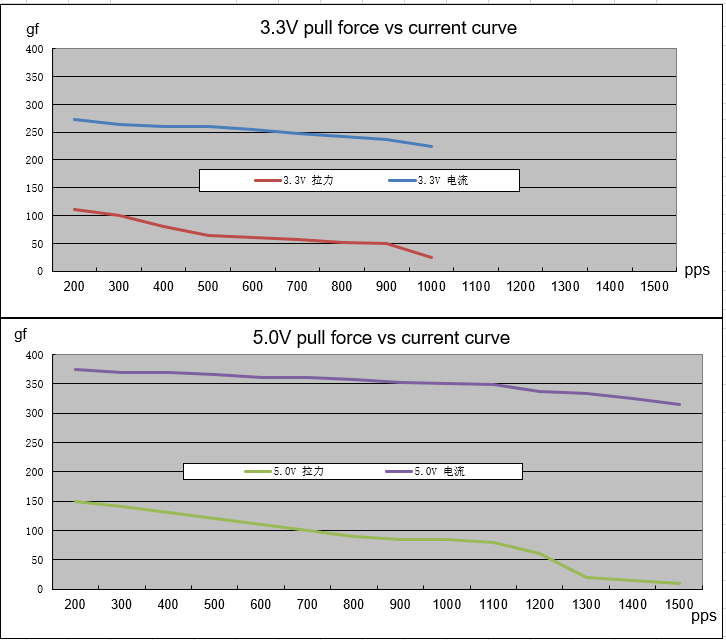

    ApplicationMotor test torque curve

    STEPPER MOTOR VSM0806 Torque(pull force)Curve

    Test Conditions:

    Drive mode: 2-2 phase

    Drive circuit: bipolar drive

    Drive voltage: 3.3 5 VDC (drive display voltage)

    Measuring instrument: Comprehensive test power supply, weight

    Resistance: 20 Ω

    eqw 6

    Application scenarios

    SDFSD 7
    DFSDS 8

    Customization service

    Motor’s design can be adjusted based on customer’s requirement including:
    Motor’s diameter: we have 6mm, 8mm, 10mm, 15mm and 20 mm diameter motor
    Coil resistance/ rated voltage: coil resistance is adjustable, and with higher resistance, motor’s rated voltage is higher.
    Bracket design/ lead screw length: if customer want the bracket to be longer/short, with special design such as mounting holes, it’s adjustable.
    PCB + cables + connector: PCB’s design, cable length and connector pitch are all adjustable, they can be replaced into FPC if customers require.

    Lead Time and Packaging Information

    Lead time for samples:
    Standard motors in stock: within 3 days
    Standard motors not in stock: within 15 days
    Customized products: About 25~30 days (based on complexity of customization)

    Lead time for building a new mold: generally about 45 days

    Lead time for mass production: based on order quantity

    Packaging:
    Samples are packed in foam sponge with a paper box, shipped by express
    Mass production, motors are packed in corrugated cartons with transparent film outside. (shipping by air)
    If shipped by sea, product will be packed on pallets

    EQWW 9

    Shipping Method

    On samples and air shipping, we use Fedex/TNT/UPS/DHL. (5~12 days for express service)
    For sea shipping, we use our shipping agent, and ship from Shanghai port. (45~70 days for sea shipping)
