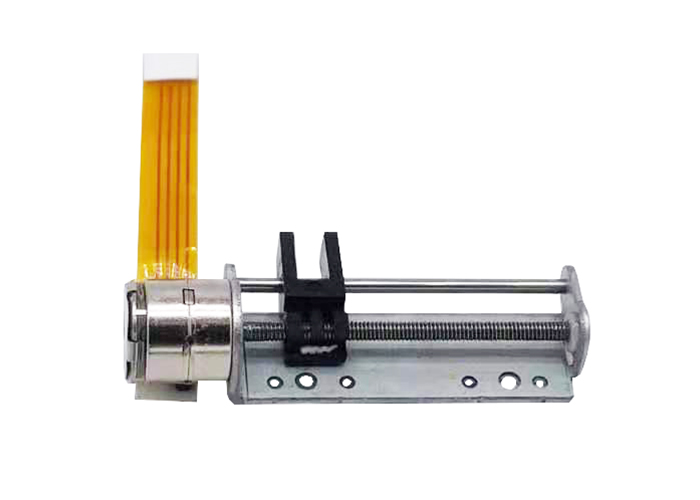

10mm Micro Stepper Motor With Screw Slider 2-Phase Stepper Motor
VSM1069 is a miniature stepper motor with a screw pitch of 0.4mm on
the output shaft, which is supported by the screw and the screw to
rotate into thrust.
The stepping angle of the motor is 18 degrees, and it runs 20 steps
per revolution, so the displacement resolution can reach 0.02mm,
achieving precise control.
The actuator adopts a subdivision driving method to meet the
requirements.
Due to its excellent characteristics such as small size, high
accuracy, and easy control, this micro stepper motor is widely used
in fields such as cameras, optical instruments, lenses, precision
medical devices, and automatic door locks.
The FPC of the motor input part can also be replaced with wiring
pins, PCBs, and other forms according to customer needs.
Mechanical Dimension:MM
Technical Features
VSM1069 is a special precious micro stepper motor (or say linear
stepper motor)with a bracket and push,
the moving speed can controlled by the precious micro stepper motor
driving pulse frequency, the moving distance can be controlled by
the precious micro stepper driving pulse number. for this typical
motor, when motor driving 2-2 phase, 1 pulse make the slide move
0.02 mm. forthis type motor, the basic slide is a golden color unit
as the photo show, also the slide can customization in any other
material or shape.
Typical Applications
Specifications
Model No. | VSM1069 |
Coil Resitance | 15±10%ohm |
Rated voltage | 3.0 V |
No. of phases | 2 phases |
Step Angle | 18° |
Max Starting Frequency | 800 PPS min,(AT 3.0 V DC) |
Max Slewing Frequency | 2000 PPS min,(AT 3.0 V DC) |
Pull in Torque | 3.0 gf-cm min(AT 500 PPS,3.0 V DC) |
Pull out Torque | 3.8 gf-cm min(AT 500 PPS,3.0 V DC) |
Insulation Class | CLASS E FOR COILS |
Insulation Strength | 300V AC FOR ONE SECOND |
Insulation Resistance | 50mΩ(DC 100 V) |
Operating Temperature | -20~70℃ |
High quality and the best price.
Competitive Advantage
- Fast deliver,storage company and rich inventory
- Near Shanghai port, the traffic is very convenient.
Torque Curve For Reference
Type Of Wire Connect For Reference
Motor input method with Pin type, FPC, PCB, Lead wire etc.
These can be customized according to customer needs.
Product Detail Presentation
