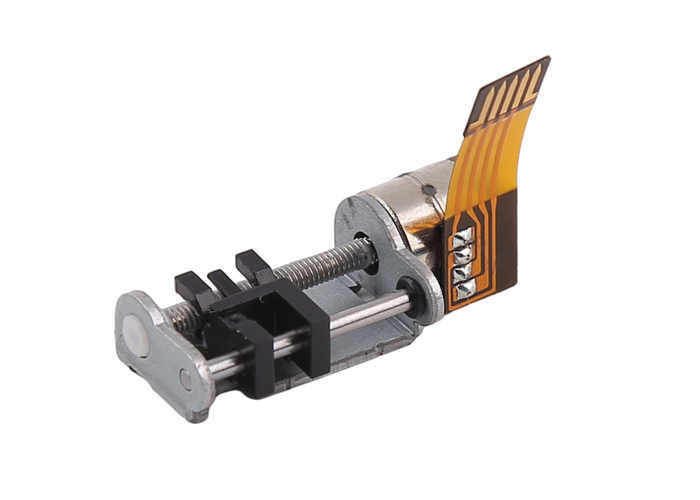

8mm micro slider screw stepper motor 3.3V DC pm stepper motor of
Camera Lens linear stepper motor:
This is a special precision stepping motor with brackets and guide
rails (when the motor rotates, the guide rails move), the moving
speed can be controlled by the pulse frequency, and the moving
distance can be controlled by the number of pulses. For this
typical motor, when the motor drives 2-2 phases, 1 pulse leads the
motor by 0.02 mm.
It is a stepper motor equipped with a bracket, a lead screw and a
relative motion slider.
Since the output shaft of the motor is a lead screw, during the
rotation of the lead screw, the lead screw drives the slider to
move back and forth. This conveniently provides actions such as
forward and backward. In addition, the stepping motor can precisely
control the speed, the number of revolutions, etc., which also
determines the movement speed of the slider, and the movement
position is accurately controllable. The positioning accuracy can
be controlled within 0.05mm.
This motor has excellent characteristics such as small size, high
precision and easy control.
The input part of the motor is FPC, but it can be changed to the
form of connecting wire, PCB, etc. according to customer needs.
Mounting brackets can be replaced according to customer
requirements.
Due to the above characteristics, such motors are widely used in
cameras, optical instruments, lenses, precision medical equipment,
automatic door locks, beauty equipment, medical equipment, vending
machines, rapid testing and other fields.
Main Application
1) vending machine
2) Optical instruments
3) Precision medical devices
4) beauty equipment
Other precise control application
8mm M2 lead screw slider stepper motor Specifications:
| Model No. | VSM08102 |
| Motor type | Linear stepper motor |
| Phase No. | 2 phases |
| Step angle | 18 °/step |
| Phase resistance | 20 Ω±10%/phase |
| Excitation method | 2-2 bipolar drive |
| Rated voltage | 3.3-5.0V DC |
| Lead screw type | M2*0.4Pitch thread |
| Stroke | 10mm |
| Pull-in thrust | 1.5 gf-cm min(AT 500 PPS,3.3V DC) |
| Pull-out thrust | 2.5 gf-cm min(AT 500 PPS,3.3V DC) |
| Max startiog frequency | 800pps min.(AT 3.3V DC) |
| Max slewing frequency | 2000pps min.(AT 3.3V DC) |
Drawing of 8mm plastic slider stepper motor with 10mm stroke:
TYPE of WIRE CONNECT:
Motor input method with Pin type
, FPC, PCB, Lead wire etc. These can be customized according to
customer needs.
Product display for 8 mm plastic slider stepper motor:
8mm mini linear motor 3.3VDC micro slider screw stepper motor of
Camera Lens
Customers can customize content:
1. In terms of the outer diameter of the motor, different sizes
such as 6mm, 8mm, 10mm, 15mm, 20mm, 25mm can be selected according
to the customer's use environment and space strength.
2. The outlet position of the motor can be freely selected within a
range of 360 degrees to meet the installation requirements in the
best state. At the same time, the connector can choose lead, PCB,
bare pin.
2. The effective stroke of the motor can be customized within a
certain range according to customer requirements, mainly
considering the diameter and length of the lead screw.
Usually the maximum length of M2 screws can be 50mm, M3 screws can
be 100mm, and M4 screws can be 100mm. Can also do 150mm. Small
motors use lead screws with too large diameters, which consume a
lot of power. Therefore, customers should consider comprehensively
when selecting motors.
4. The material of the slider is generally plastic, which is easy
to form and economical.
When customers have special use environment and requirements, the
slider can also use metal parts.
Of course, the cost will be relatively high, which is determined
according to the customer's requirements for the shape and size of
the slider.
