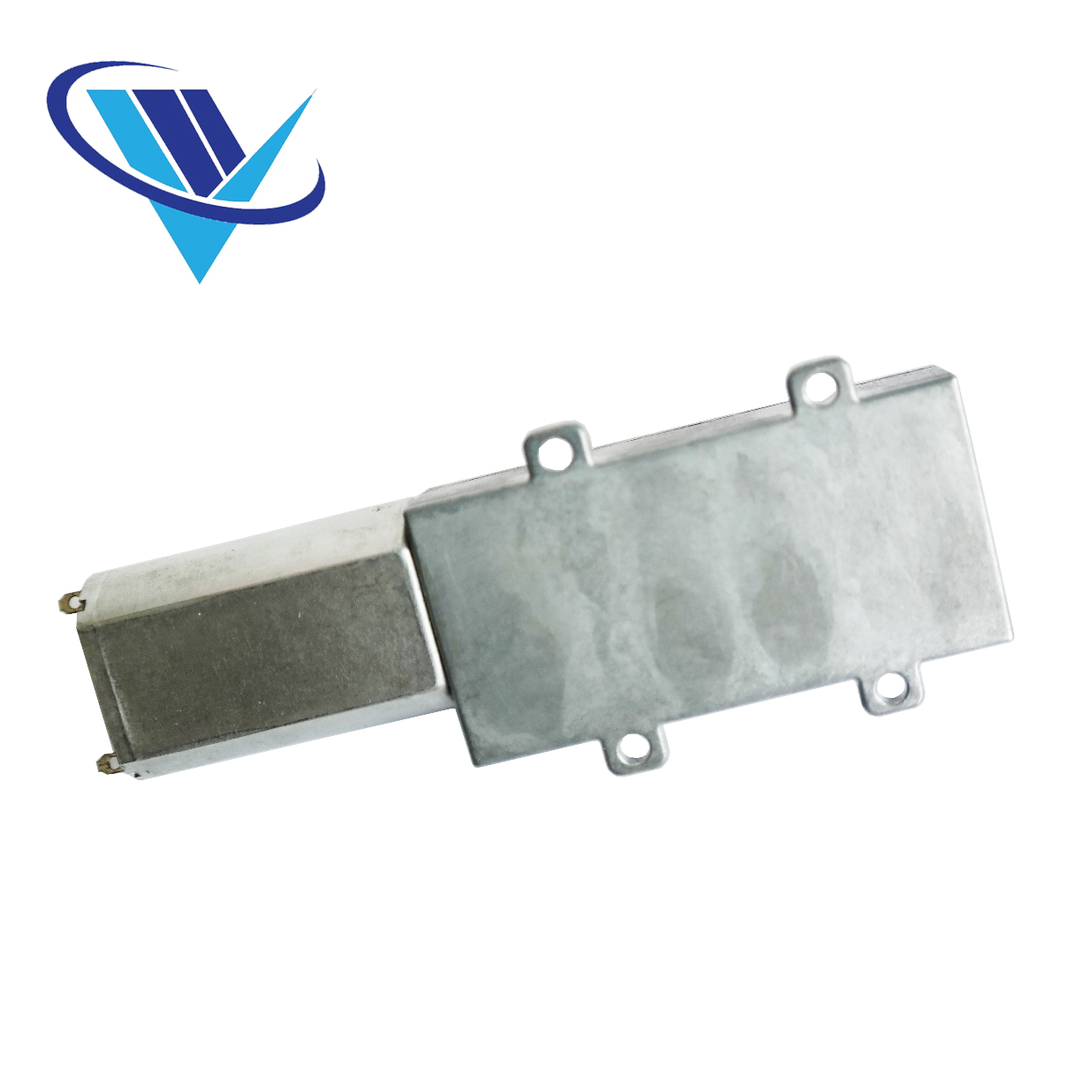

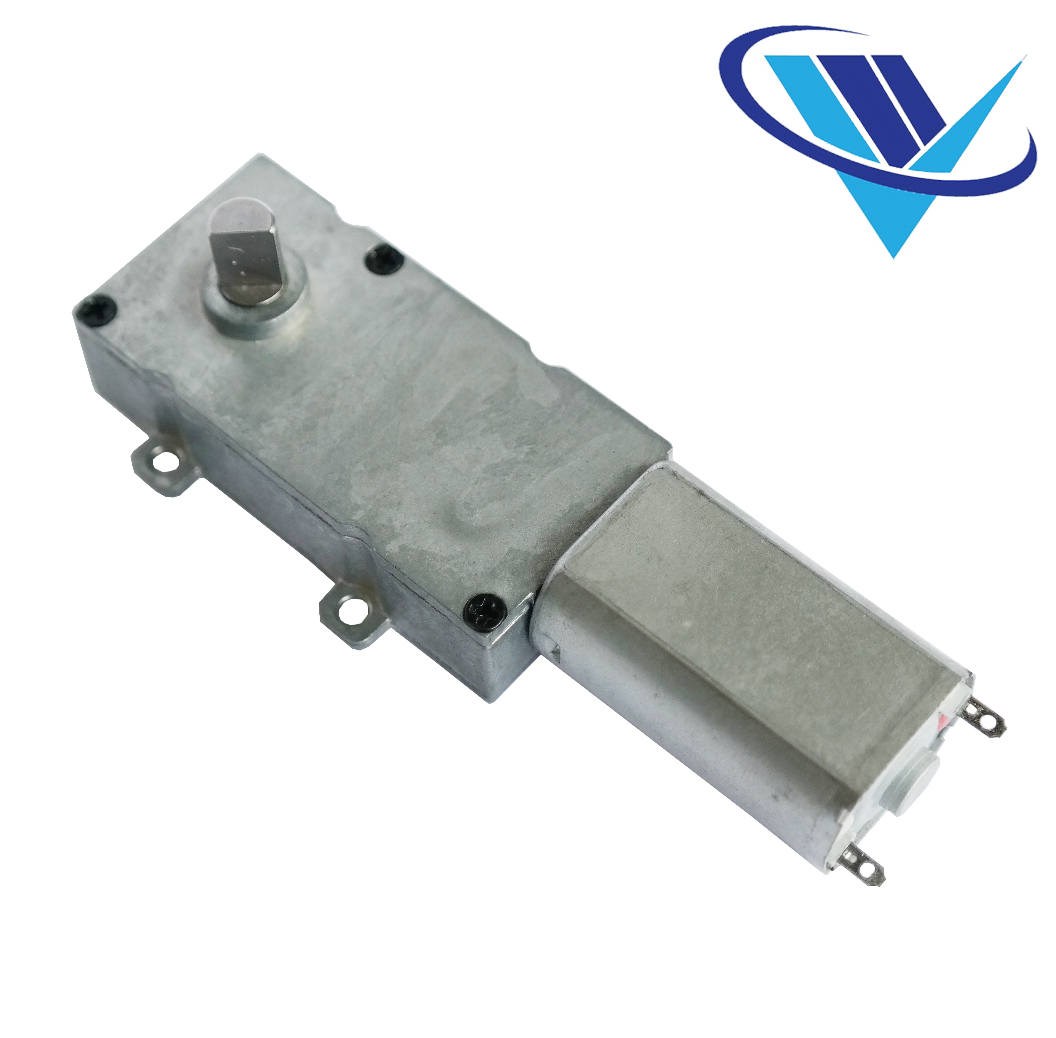

FF-180 High Torque 8V DC 30 RPM Brushed Gear Motor for Electronic Lock

This product is sepecically designed for electrical door lock, it’s a FF-180 DC brush motor attached by a 527:1 reduction gear box.

It’s loaded speed is 22 RPM, with 4kgf.cm torque.

About FF-180PH motor (Without Gearbox):

Mechanical Dimension(With Gearbox):MM

Typical Applications

• Electronic Lock
• Office Automatic Equipments
• Printer/paper Feeder
• Bank Equipments

• Camera

• label printer

• Electtric Door Locks

• Label stripping machine

About DC brushed motors

This brushed DC motor is the most commonly used motor in the market.

It has brushes inside and has positive and negative pins (+ and -).

The speed of the DC motor can be controlled by different gear ratios or by PWM control. (Pulse Width Modulation)

It boosts the torque through the gearbox and the DC motor can reach higher torque compared to the original torque of the motor.

Specifications

The above products are only representative models, we can customize the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also provide OEM services.
