High precision 57HS51 57mm NEMA 23 hybrid stepper motor with
optical encoder 500 PPR resolution
This is 57mm hybrid stepper motor with optical encoder at the
bottom.
57mm hybrid stepper motor is 1.8° step angle, also known as NEMA 23
motor.
This motor is widely used for high precision control.
In order to reach closed-loop, for higher precision control. An
encoder is required to provide feedback signal.
The encoder used is optical encoder, and we have different
resolution including 500, 1000, 2000 PPR and more.
The encoder contains three channels: including signal A, signal B
and signal Index.
The motor’s size is 57mm, and we have different height for option.
With bigger height, motor has bigger torque, bigger weight and
higher cost.
Please confirm motor and encoder parameters before confirm order.

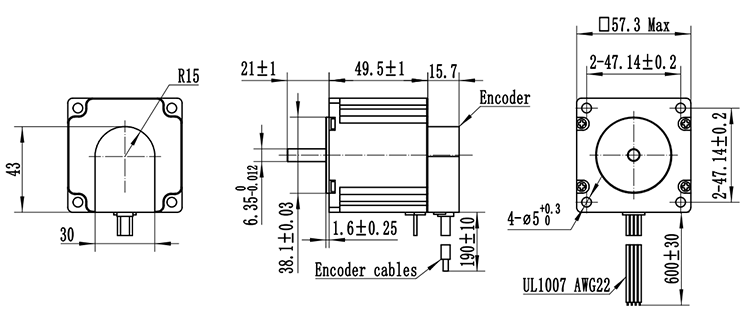

Mechanical Dimension:MM
Typical Applications
- 3D Printer
- Monitoring Equipment
- Medical Machinery
- Vending Machine
- Engineering Vehicle
- CNC Engraving Machine
- ATM Machine
Motor parameters:
Step Angle (°) | Motor length (mm) | Holding torque (KG*cm) | Current /phase (A/phase) | Resistance (Ω/phase) | Inductance (mH/phase) | No. of leads | Rotational inertia (g*cm2) | Weight (KG) |
| 0.9 | 41 | 3.9 | 1 | 5.7 | 8 | 6 | 120 | 0.45 |
| 1.8 | 41 | 3.9 | 2 | 1.4 | 1.4 | 8 | 150 | 0.47 |
| 0.9 | 51 | 7.2 | 2 | 1.6 | 2.2 | 6 | 280 | 0.59 |
| 1.8 | 51 | 9 | 2 | 1.8 | 2.7 | 8 | 230 | 0.59 |
| 0.9 | 56 | 12 | 2.8 | 0.9 | 3.3 | 4 | 300 | 0.7 |
| 1.8 | 56 | 9 | 2 | 1.8 | 2.5 | 6 | 280 | 0.68 |
| 0.9 | 76 | 18 | 2.8 | 1.15 | 5.6 | 4 | 480 | 1 |
| 1.8 | 76 | 13.5 | 3 | 1 | 1.6 | 6 | 440 | 1.1 |
| 1.8 | 100 | 30 | 4.2 | 0.75 | 3 | 4 | 700 | 1.3 |
| 1.8 | 112 | 31 | 4.2 | 0.9 | 3.8 | 4 | 800 | 1.4 |
Encoder parameters:
| Encoder type | Optical encoder |
| Resolution | 100/200/500/1000/1024/2000/2500PPR |
| Output signal | Signal A, B, Index |
| Power supply | 5V DC |
| Max response frequency | 100 kHz |
| Max rotation speed | 3000 RPM |
Torque Curve For ReferenceThe above products are only representative models, we can customize
the products according to customer requirements. Includes the length and diameter of the shaft.Our company can also
provide OEM services.
Product Detail Presentation
About hybrid stepper motor:
Hybrid stepper motors are in general square shape, and a stepper
motor can be identified by its unique outer shape.
A hybrid stepper motor has 1.8°step angle(200 step/revolution) or
0.9°step angle (400 steps/revolution). Step angle is determined by
tooth number on rotor’s laminations.
There are to ways to name a hybrid stepper motor:
By Metric unit (unit: mm) or by Imperial unit (unit: inch)
For example, a 42mm motor = a 1.7 inch stepper motor.
So a 42mm motor can also be called as NEMA 17 motor.
Explanation of hybrid stepper motor’s name:
For example, 42HS40 stepper motor:
42 means the size is 42mm, so it’s a NEMA17 motor.
HS means Hybrid Stepper motor.
40 means the height is 40mm motor.
We have different height for customers to choose, with bigger
height, a motor will have higher torque, bigger weight, and higher
price.
Here is internal structure of a regular hybrid stepper motor.
Application of Hybrid stepper motor:
Due to high resolution of hybrid stepper motor’s (200 or 400 steps
per revolution), they are widely used for applications requiring
high precision, such as:
3D printing
Industrial control(CNC, automatic milling machine, textile
machinery)
Computer peripherals
Packing machine
And other automatic systems requiring high precision control.
